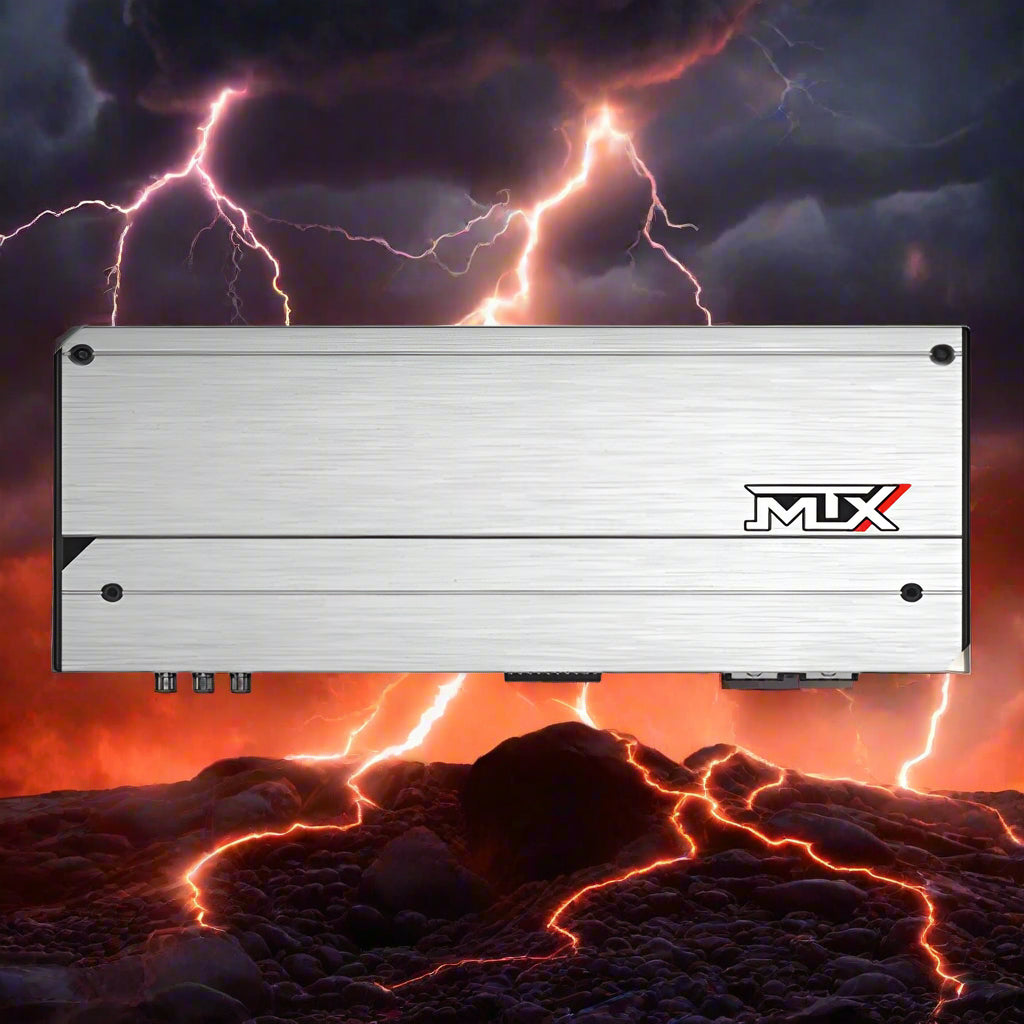

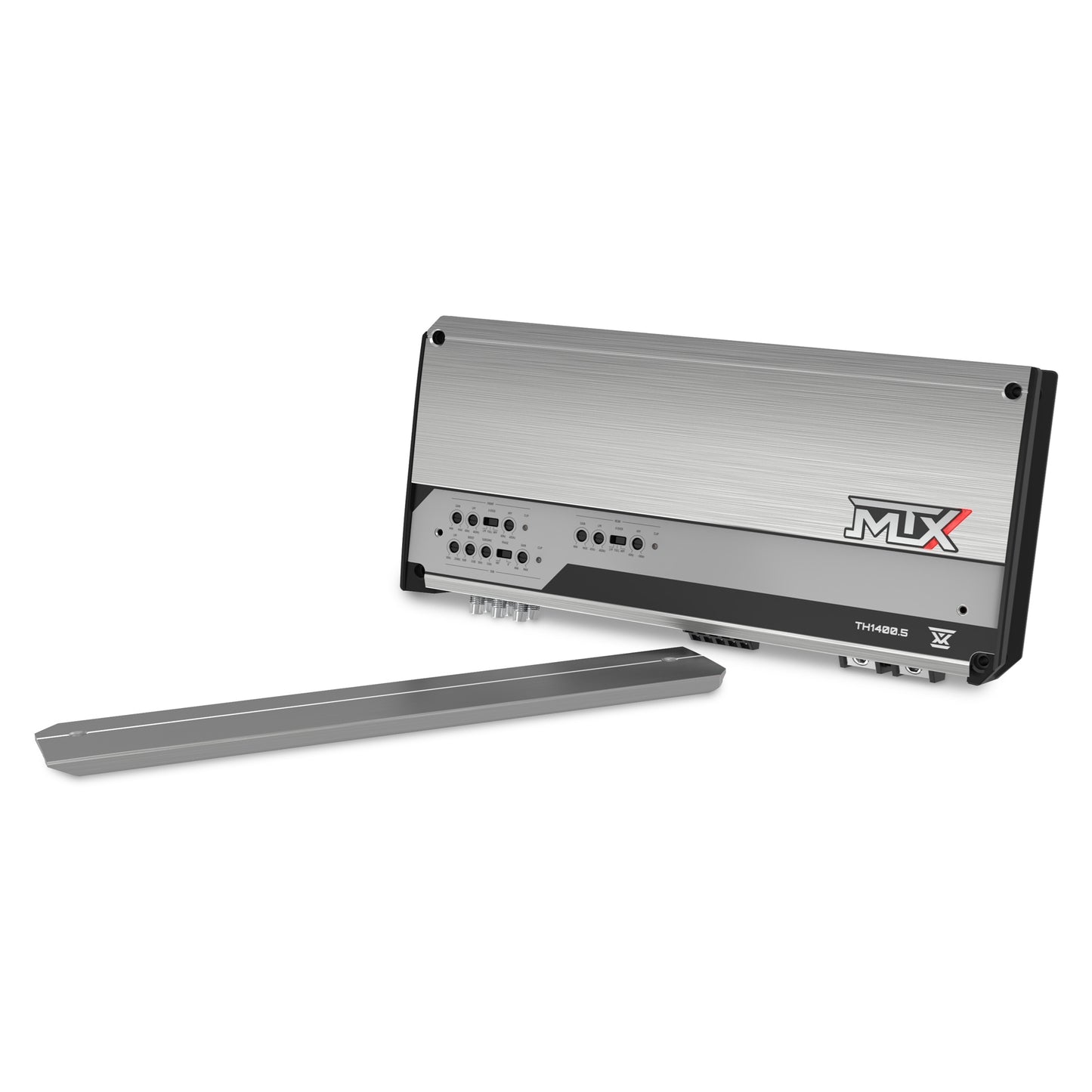

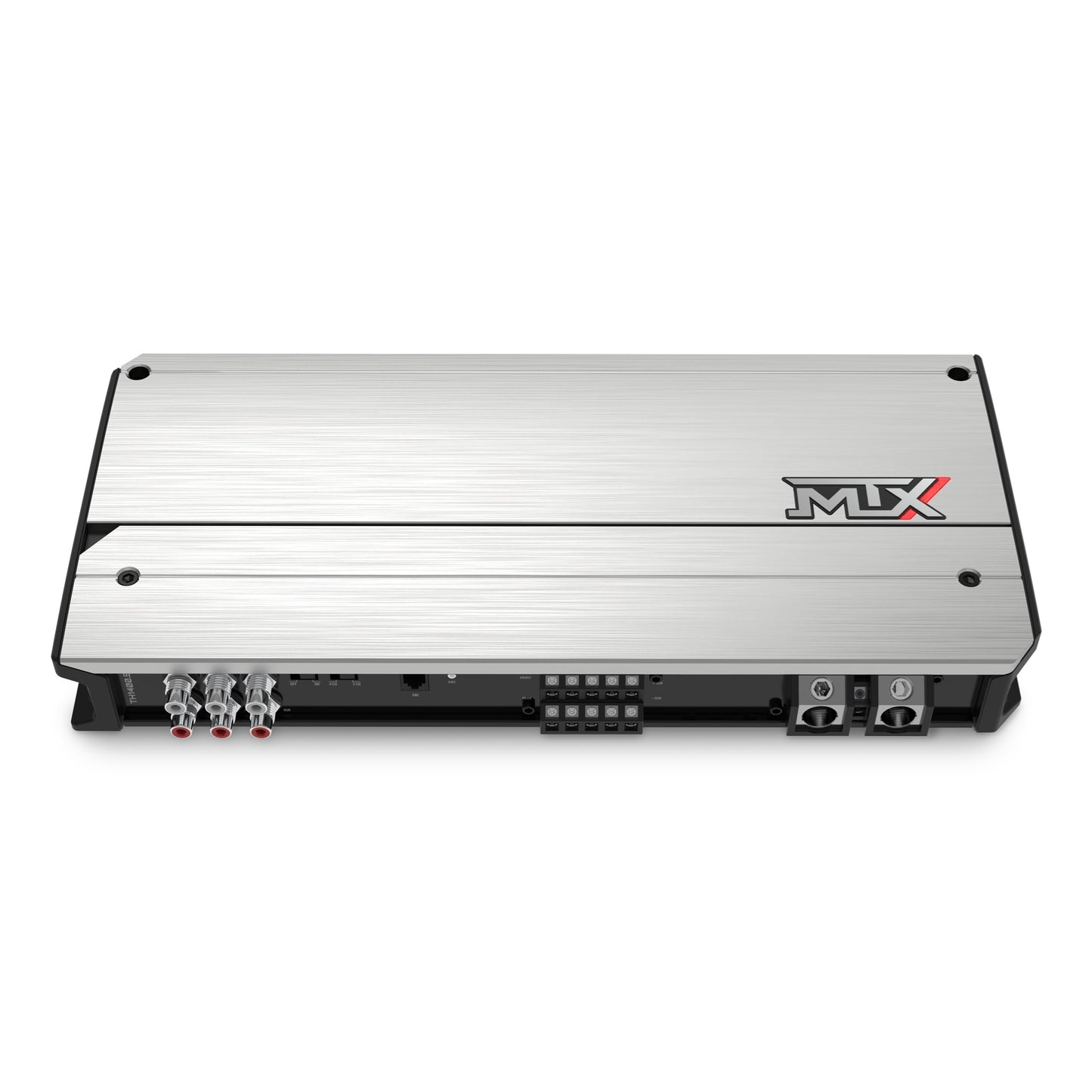

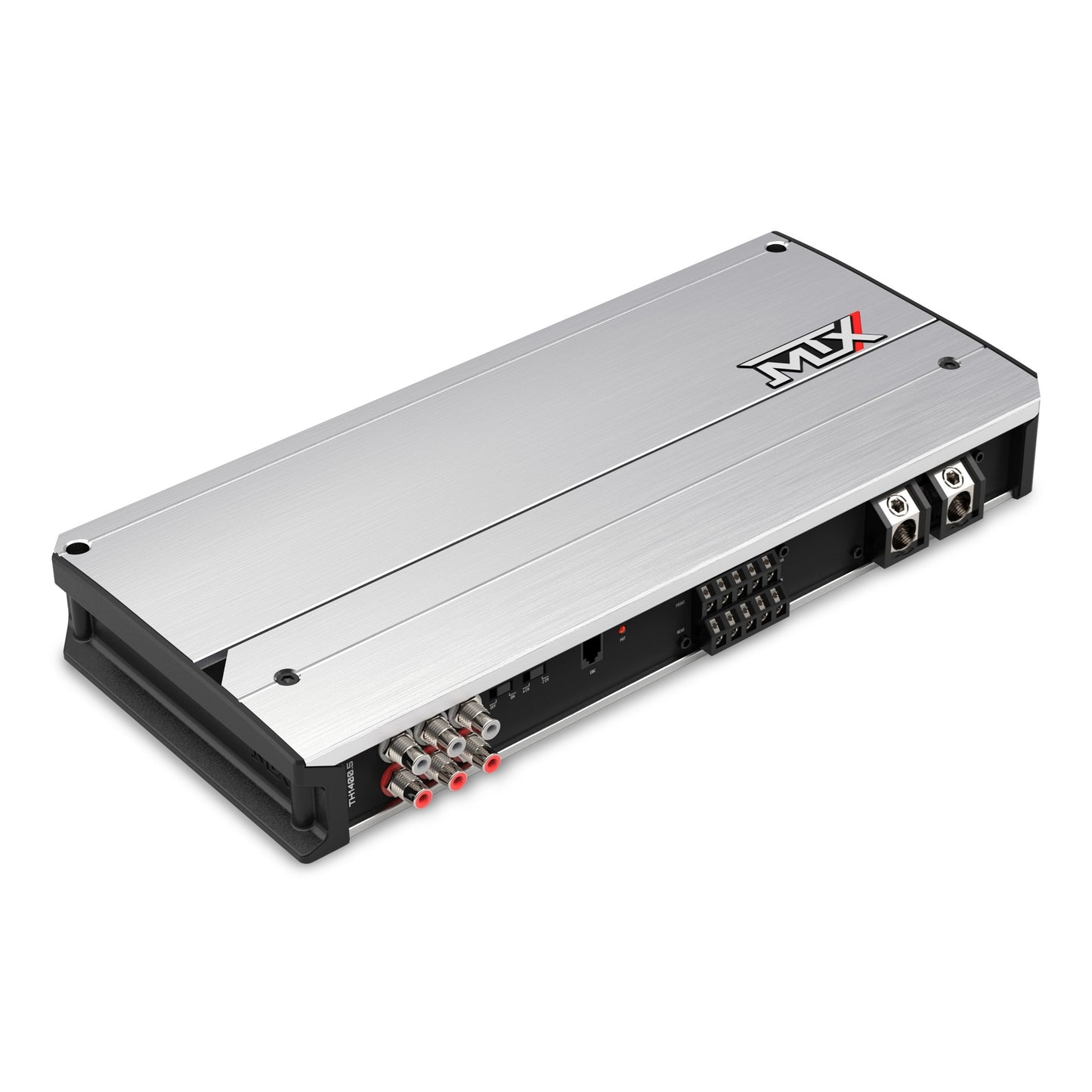

Unleash the power of superior sound with the MTX Audio Thunder Series 1400W RMS 5 Channel Amplifier. This remarkable amplifier is designed to transform your driving experience with high-quality audio performance. Perfect for car enthusiasts, it offers an impressive 1400 watts of pure, undistorted power.

The MTX Audio Thunder Series 1400W RMS 5 Channel Amplifier stands out with its unique design and robust build. This 5 channel amplifier provides exceptional clarity and depth, ensuring every note hits with precision. Whether you're listening to your favorite tunes or catching up on podcasts, this amplifier ensures a rich audio experience.

With five channels, you have complete control over your audio setup. This amplifier is versatile, accommodating multiple configurations for balance and symmetry in sound. The MTX Audio Thunder Series 1400W RMS 5 Channel Amplifier is perfect for those looking to power up a combination of speakers and subwoofers.

At Garage Audio, we understand your passion for top-tier audio equipment. This amplifier is not just about power. It's also about flexibility. It features adjustable crossovers and a bass boost, giving you the tools to tailor your sound perfectly to your vehicle's acoustics.

FEATURES

• 1400 Watts RMS Power Output (Tested @ 2750W RMS)
• Reliable Subwoofer-Range Class-D Circuit Design
• Compact Size for Flexible Installation
• 10V High-Level Audio Input Compatibility
• High-Quality Tiffany-Style RCA
• Input Power and Protection LED Indicator Light
• Surface Mount Component Technology

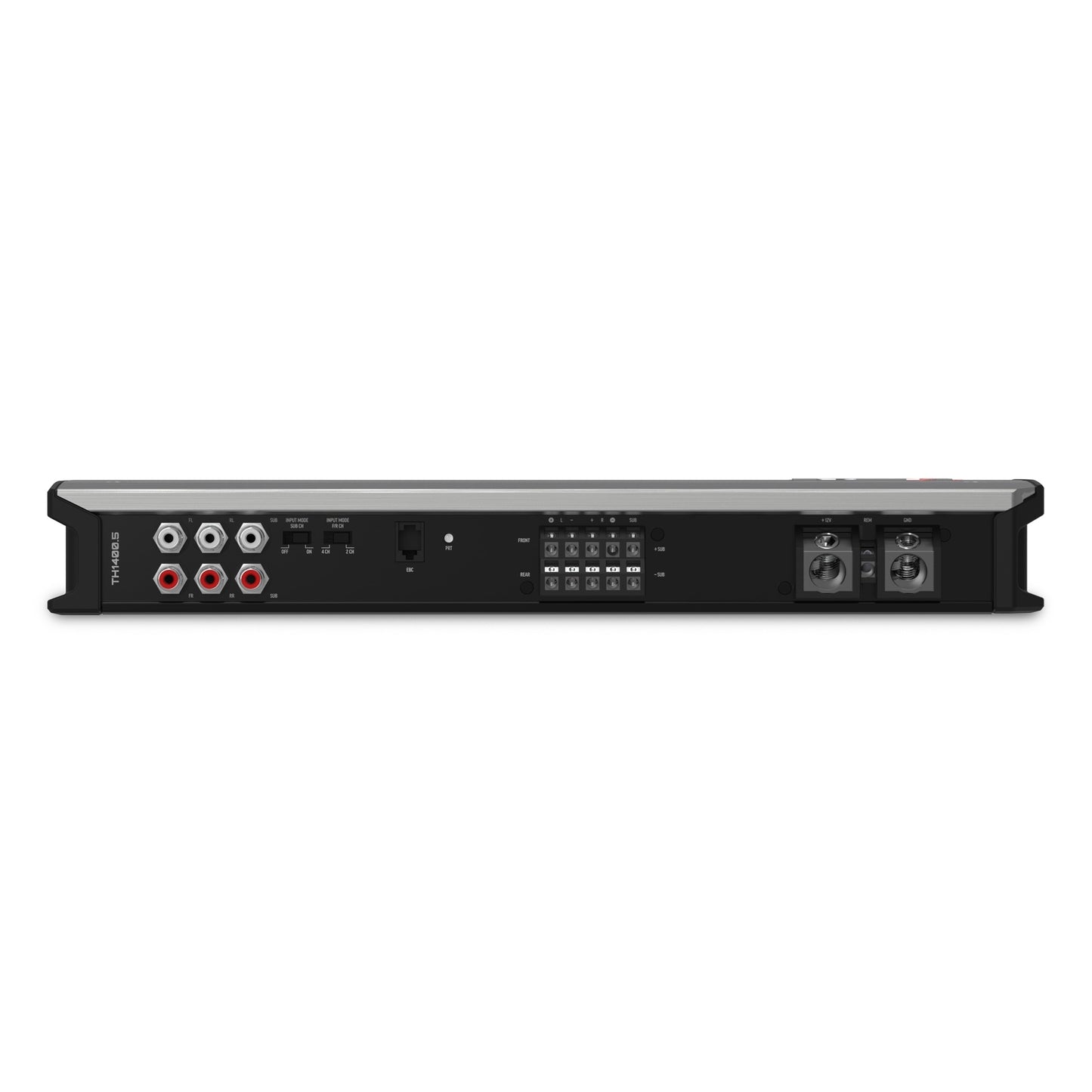

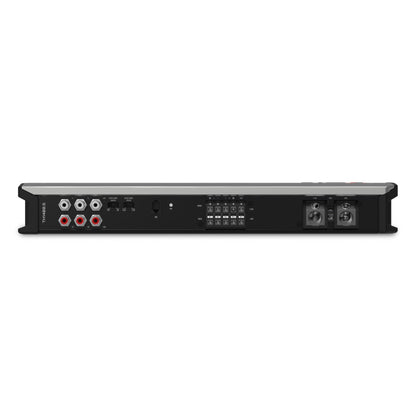

• Direct Insert Power and Speaker Terminals
• Thermal, Short, and Over/Under Voltage Protection
• Clip Detection Light for Tuning Optimization
• Dyno Power Rating Certificate (Example photo attached)

RATINGS

• CEA2006-D compliant - A true RMS power rating
• RECOMMENDED FUSE RATING: 200A - 250A
• MINIMUM POWER WIRE RATING: 0 AWG (8.3MM)

SPECIFICATIONS

• 5-CHANNEL
• Topology: CLASS D
• 4Ω RMS Power Output: 100W X 4 CHANNELS + 300W (Tested @ 231W RMS X 4 + 564W RMS)
• 2Ω RMS Power Output: 150W X 4 CHANNELS + 500W (Tested @ 352W RMS X 4 + 911W RMS)
• 4Ω RMS Bridged Power Output: 300W X 2 CHANNELS (Tested @ 704W RMS X 2)
• 1Ω RMS Subwoofer Power Output: 800W (Tested @ 1342W RMS)
• THD: \< 0.4%
• Signal to Noise Ratio: > 95DB
• Frequency Response: 20HZ - 20KHZ (CH1-4)
• 20HZ - 250HZ (SUB)
• Crossover: 40HZ - 400HZ (CH1-4) 50HZ - 250HZ (SUB)
• Subsonic Filter: 10HZ - 55HZ (SUB)
• Maximum Input Signal: 10V
• Warranty Period: 12 MONTHS FROM DATE OF INITIAL PURCHASE

DOWNLOADS

• Owners Manual - TH Amp ManualDownload
