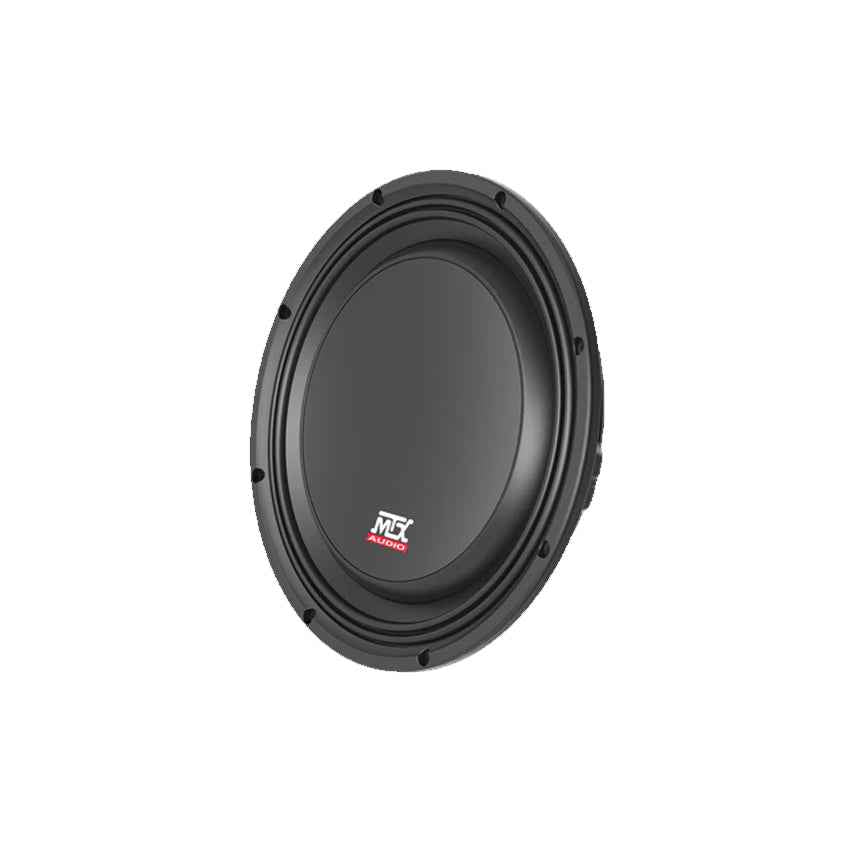

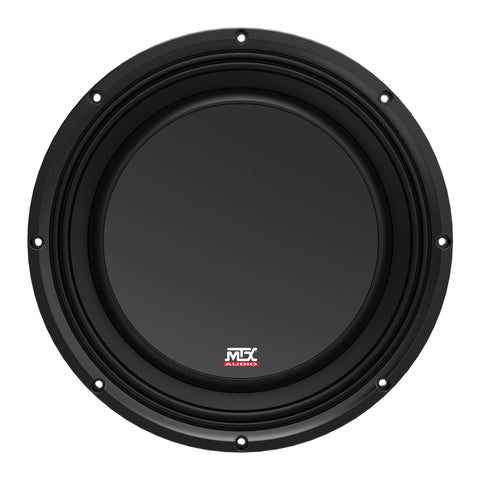

MTX FPR Series 10" Shallow Mount Subwoofer | 300W RMS | 3510-04S

The MTX FPR 3510-04S proves that shallow doesn't have to mean sacrificing bass. Designed for vehicles where installation space is limited, this innovative 10-inch shallow mount subwoofer delivers deep, controlled low-frequency performance while requiring only 85.7mm of mounting depth.

Perfect for utes, dual cabs, behind-seat installations, under false floors, or custom enclosures, the FPR Series combines patented MTX engineering with genuine subwoofer performance. Unlike many shallow subwoofers that struggle to reproduce true low bass, the FPR has been engineered specifically to deliver powerful, musical bass without requiring a large enclosure.

At the heart of the design is MTX's patented One Piece Spider Cone Assembly, allowing significantly greater cone excursion than traditional shallow subwoofers. The unique basket geometry increases usable cone travel while maintaining excellent control, producing deeper bass and higher output from an incredibly compact driver.

The FPR also features Spider Plateau Venting (SPV) cooling technology, continuously directing airflow across the voice coil to reduce operating temperatures during extended listening sessions. An aluminium dust cap further assists with heat dissipation, improving reliability and maintaining consistent performance even at high output levels.

Designed to perform exceptionally well in compact sealed enclosures from just 17 litres, the MTX FPR is the ideal solution where space is limited but quality bass is still essential.

Features

• 10" (250mm) Ultra Shallow Mount Subwoofer
• 300 Watts RMS Power Handling
• 600 Watts Peak Power
• Patented One Piece Spider Cone Assembly
• Only 85.7mm Mounting Depth
• Spider Plateau Venting (SPV) Cooling Technology
• High Temperature 44mm Aluminium Voice Coil
• Lightweight High-Rigidity Cone
• Durable Butyl Rubber Surround
• Heavy Duty StreetWires Designed Terminals
• Optimised for Compact Sealed Enclosures
• Genuine MTX Engineering

Specifications

Speaker Size

• 10" (250mm)

Power Handling

• RMS: 300 Watts
• Peak: 600 Watts

Impedance

• Single 4 Ohm

Frequency Response

• 28Hz – 130Hz

Sensitivity

• 83.7dB (1W/1m)

Resonant Frequency (Fs)

• 35Hz

Voice Coil

• 1.75" (44mm) High Temperature Aluminium

One-Way Xmax

• 10.21mm

Mounting Depth

• 85.7mm (3.375")

Recommended Enclosure

Sealed Enclosure

• Minimum Internal Volume: 17 Litres (0.60 cu ft)

The FPR Series has been specifically designed to maximise performance in compact sealed enclosures, making it ideal where installation space is at a premium.

Spider Plateau Venting (SPV)

MTX's exclusive Spider Plateau Venting system actively circulates cool air across the voice coil during operation. Combined with the aluminium dust cap acting as a heat sink, the FPR maintains lower operating temperatures, reducing distortion while improving reliability and long-term performance.

Perfect For

• Dual cab utes
• Behind-seat installations
• Space-limited vehicles
• Compact custom enclosures
• False floor installations
• Daily bass upgrades
• Factory stereo upgrades
• Vehicles where conventional subwoofers won't fit

Why Choose the MTX FPR 3510-04S?

If you're limited on installation space but refuse to compromise on bass performance, the MTX FPR 3510-04S is one of the best shallow-mount solutions available. Its patented design delivers deeper bass, greater excursion, and superior reliability than many conventional shallow subwoofers, making it an excellent choice for modern vehicles where every millimetre counts.

Whether you're upgrading a work ute, family SUV, or custom build, the FPR delivers genuine MTX performance in places other subwoofers simply can't fit.
