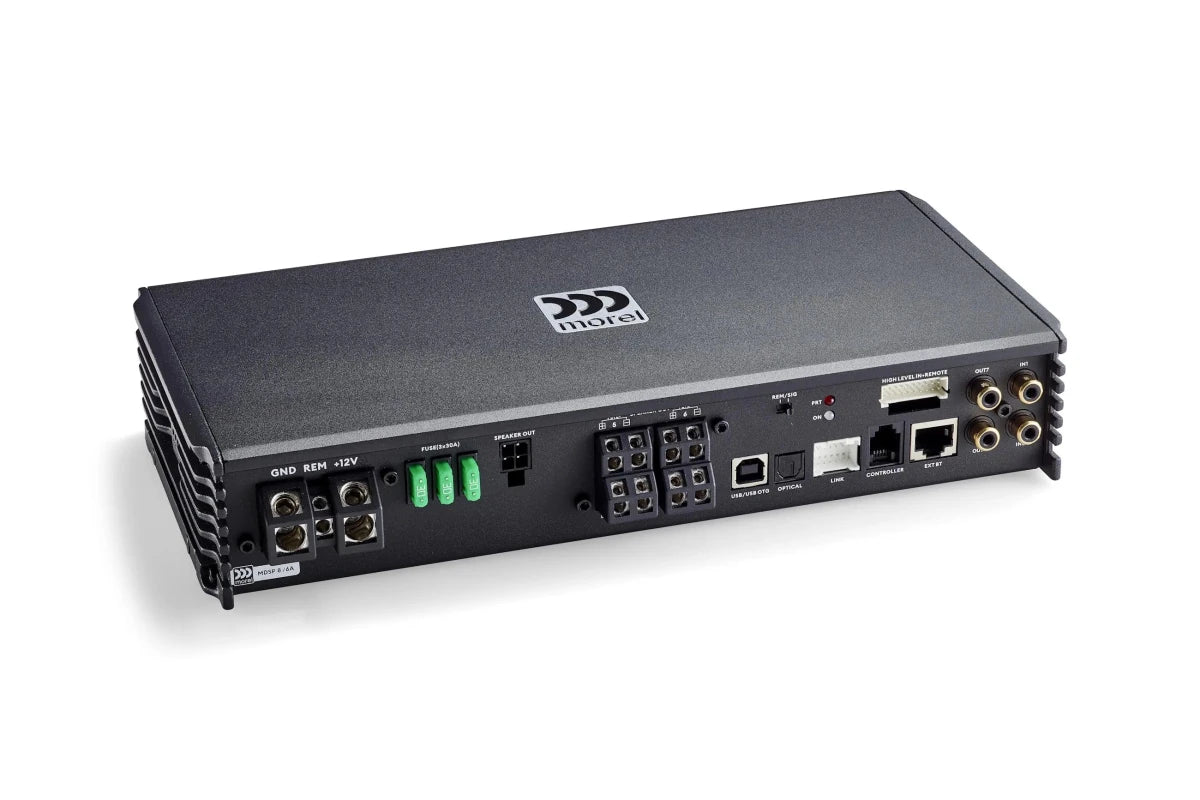

Morel MDSP 8/6A DSP Amplifier

MDSP 8/6A – Ultimate Multi-Channel DSP Control

The Morel MDSP 8/6A is built for serious audiophiles and pro installers who want total system flexibility and control. With 6 x 80W + 2 x 165W RMS channels, advanced DSP, and seamless integration, this amp is perfect for active front stages, multi-way setups, or high-end OEM upgrades where only the best will do.

• RMS Power: 6 x 80W + 2 x 165W
• Channels: 8 amplified, 2 RCA pre-outs
• DSP Engine: 24-bit/96kHz, parametric & graphic EQ, fully adjustable crossovers, per-channel I/O EQ
• Inputs: 8 high-level, 2 low-level RCA, optical, USB OTG
• Bluetooth streaming (optional) + DRC remote compatibility
• SLAM module: keeps factory amps stable for OEM upgrades
• Signal summing, start-stop ready, TuneLink for multi-amp setup
• S/N Ratio: >98dB, THD+N: <0.03%
• Super compact: 50.25 x 136 x 276mm (H x W x L)

Ready to build a reference-grade sound system?

Why Choose MDSP 8/6A?

• Serious power and flexibility for complex builds
• Advanced DSP for precision system tuning
• Handles OEM or aftermarket integration with ease
• Bluetooth streaming and remote control ready
• Installer-friendly, compact design
• Backed by Garage Audio’s expert install & support
