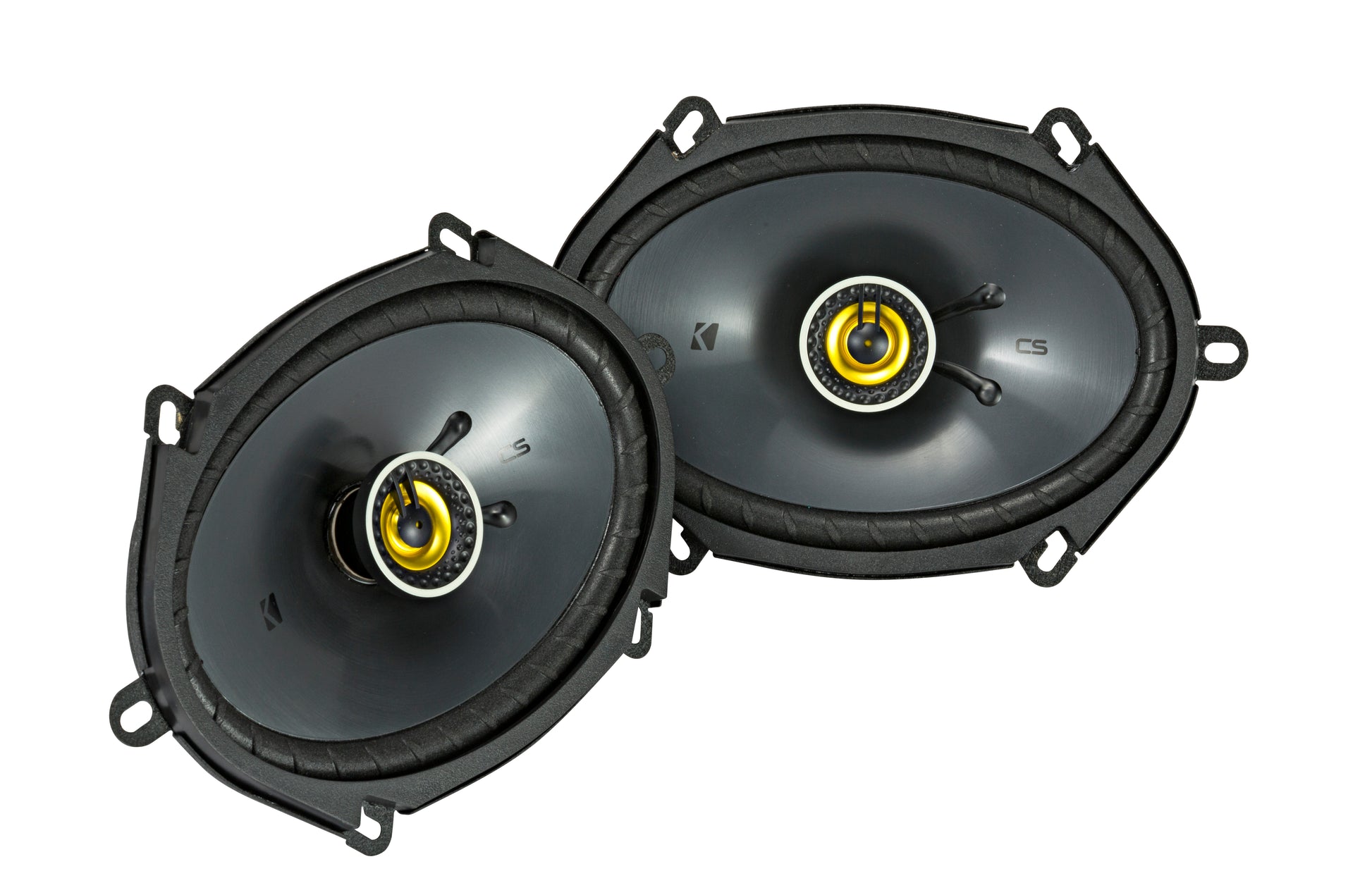

KICKER 46CSC684 CS Series 5x7" / 6x8" 2-Way Coaxial Speakers – 75W RMS

KICKER 46CSC684 CS Series 5x7" / 6x8" 2-Way Coaxial Speakers – 75W RMS

Regular price $179.00
Regular price Sale price $179.00
Sale Sold out
Quantity

Upgrade your factory audio system with the KICKER 46CSC684 CS Series 5x7-Inch / 6x8-Inch Coaxial Speakers. Engineered to deliver stronger bass, improved clarity, and greater overall performance than factory speakers, the CS Series is an ideal solution for drivers looking to enhance their daily listening experience.

Built around a durable stamped-steel basket and rigid polypropylene woofer cone, the CSC684 utilizes KICKER's Extended Voice Coil (EVC™) technology to improve cone control and deliver accurate, distortion-free sound reproduction. The heavy-duty motor structure generates powerful midbass response, while the balanced dome PEI tweeter with neodymium magnet provides crisp and detailed high frequencies.

Designed to fit a wide range of factory speaker locations, the zero-protrusion tweeter allows easy installation behind factory grilles without clearance issues. Combined with a UV-treated polyester foam surround, these speakers are built to withstand harsh automotive conditions while maintaining excellent sound quality for years to come.

Key Features

  • 5x7-inch / 6x8-inch (160mm x 200mm) 2-way coaxial speakers
  • 75 Watts RMS power handling
  • KICKER EVC™ (Extended Voice Coil) technology
  • Polypropylene woofer cone for accurate sound reproduction
  • PEI balanced dome tweeter for clear, detailed highs
  • Neodymium tweeter magnet for increased efficiency
  • Heavy-duty motor and magnet structure for powerful midbass
  • UV-treated polyester foam surround for durability
  • Zero-protrusion tweeter design for OEM fitment
  • Excellent upgrade for factory audio systems
  • Designed for long-term reliability in automotive environments

Specifications

Specification Details
Speaker Design 2-Way Coaxial
Woofer Size 6x8" (160 x 200mm)
Tweeter Size 0.5" (13mm)
RMS Power Handling 75 Watts
Peak Power Handling 225 Watts
Sensitivity 90 dB (1W/1m)
Frequency Response 45Hz – 20kHz
DC Resistance 3.5 Ohms
Mounting Hole Diameter 126 x 182mm
Top Mount Depth 9mm
Bottom Mount Depth 56mm
Tweeter Protrusion 0mm
Tweeter Material PEI (Polyether Imide)
Tweeter Design Balanced Dome
Tweeter Magnet Material Neodymium
Woofer Cone Material Polypropylene
Woofer Surround Material UV-Treated Polyester Foam
Grilles Included No
