KICKER 46CSS684 CS Series 5x7" / 6x8" Component Speakers – 75W RMS

✓ Garage Audio Approved ✓ Australian Warranty ✓ Expert Support
$299.00

In stock

Professionally Installed by Garage Audio

Ask our Morayfield team about fitment, installation parts and labour pricing.

Skip to product information
1 of 1

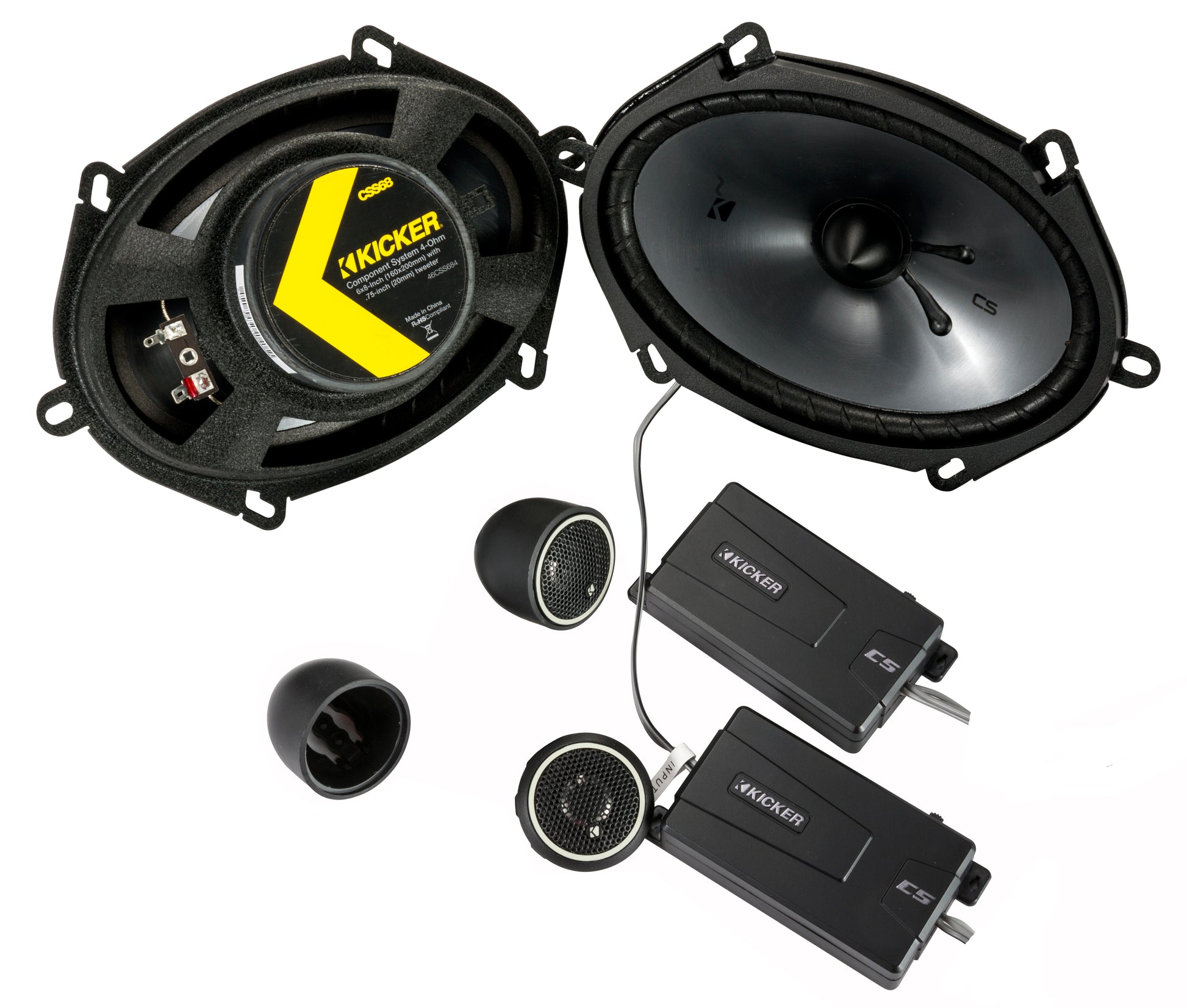

Experience superior sound quality and improved imaging with the KICKER 46CSS684 CS Series Component Speakers. Designed for vehicles that utilize separate woofers and tweeters, this premium component system delivers greater clarity, detail, and soundstage performance than traditional coaxial speakers.

Featuring dedicated 6x8-inch woofers, separate titanium dome tweeters, and external 12dB crossovers, the CSS684 system allows precise frequency separation for cleaner, more natural sound reproduction. The included three-position tweeter level adjustment lets you tailor the high-frequency output to suit your vehicle and personal listening preferences.

KICKER's Extended Voice Coil (EVC™) technology and phase plug-equipped polypropylene woofers help deliver accurate bass response with reduced distortion, while UV-treated surrounds provide long-lasting durability in harsh automotive environments. Multiple tweeter mounting options, including flush, angled, and surface-mount pods, allow you to achieve optimal sound staging and a professional installation.

Ideal for factory upgrades or aftermarket audio systems, the CSS684 component speakers offer exceptional performance, detail, and value.

Key Features

  • Premium 2-way component speaker system
  • 6x8-inch woofers with dedicated titanium tweeters
  • 75 Watts RMS power handling
  • External 12dB crossover networks
  • Three-position tweeter level adjustment (0dB, -3dB, -6dB)
  • Titanium dome tweeters for exceptional clarity and detail
  • Neodymium tweeter magnets for improved efficiency
  • EVC™ (Extended Voice Coil) technology for improved bass response
  • Phase plug woofer design helps reduce distortion
  • UV-treated surround for long-lasting durability
  • Flush, angled, and surface-mount tweeter installation options
  • Excellent upgrade for factory or aftermarket audio systems

Specifications

Specification Details
Speaker Type 2-Way Component System
Woofer Size 6x8" (160 x 200mm)
Tweeter Size 0.75" (20mm)
Tweeter Dome Material Titanium
RMS Power Handling 75 Watts
Peak Power Handling 225 Watts
Frequency Response 40Hz – 21kHz
Woofer Mounting Hole Diameter 126 x 182mm
Woofer Mounting Depth 56mm
Tweeter Flush Mount Hole Diameter 40mm
Tweeter Flush Mount Depth 14.5mm
High Pass Crossover 12dB @ 4000Hz
Low Pass Crossover 12dB @ 4000Hz
Tweeter Attenuation Settings 0dB, -3dB, -6dB
Bolt-Thru Grilles No
View full details

Specifications

5x7 Inch Component Speakers • Component crossover system • Vehicle-specific fitment

Garage Audio Product Guide

Everything You Need to Know

Our Expert Opinion

Garage Audio Review

A practical speaker upgrade for vehicles using 5x7 factory locations where improved clarity is required.

Performance Ratings

How We Rate It

Garage Audio Overall Rating
★★★★★ 8.5/10
A useful factory speaker replacement option offering improved clarity and performance for vehicles using 5x7 locations.
Build Quality 8/10
Value 8/10
Clarity 8/10
Treble 8/10
Midrange 8/10
Bass 7/10

Buying Advice

Is This Product Right for You?

Key Benefits

  • 5x7 component fitment • Improved clarity • Factory speaker replacement

Best For

Vehicles requiring 5x7 speaker upgrades with improved clarity and efficiency

Things to Consider

  • Check factory speaker size and mounting depth before installation.
Upgrade Level
Speaker Upgrade

Product Information

Audio Specifications

Power Rating
100W RMS
RMS Power
100 W
Peak Power
300 W
Recommended Amplifier
50-100W RMS Per Channel
Speaker Size
5x7 Inch
Impedance
4 Ohm
Audio Type
Component Speaker
Product Role
Component Speaker
Brand
Kicker
