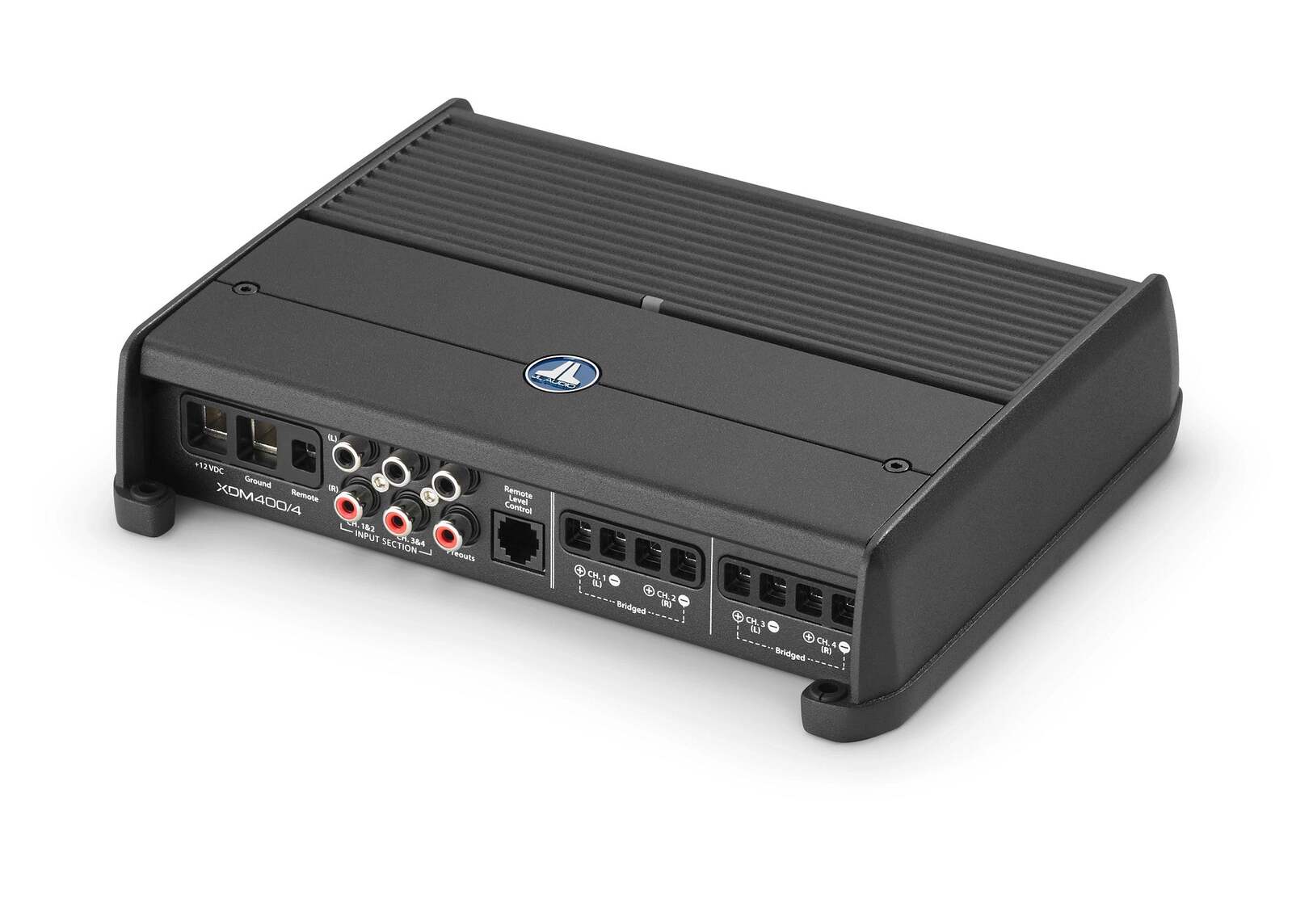

JL Audio XDM4004 4 Channel Marine Amplifier
JL Audio XDM4004 4 Channel Marine Amplifier
Pickup available at Garage audio morayfield
Usually ready in 5+ days
Description
Description
Enhance your marine audio experience with the JL audio XDM4004 4 channel Marine amplifier. This powerful amplifier by JL Audio is designed to provide exceptional sound quality on the open waters. Perfect for your boat, it ensures crisp and clear audio, even in challenging conditions.
The JL audio XDM4004 4 channel Marine amplifier offers impressive efficiency and reliability. Its compact design allows for easy installation, conserving valuable space on your vessel. It delivers robust 100W RMS per channel, ensuring your speakers perform at their best.
At Garage Audio, the JL audio XDM4004 4 channel Marine amplifier stands out with its corrosion-resistant build. This is crucial for marine environments. It has been crafted with only premium materials, providing durability against moisture and salt.
Adjustability is key. This amplifier comes with variable high-pass and low-pass filters. They let you customize your sound to match your preferences. Enjoy deep bass and clear mids, tuned precisely to your liking.
Connect seamlessly to your existing setup. The JL audio XDM4004 4 channel Marine amplifier is compatible with most audio systems. Its versatile inputs and outputs offer flexibility. Whether you're upgrading or building new, integration is smooth and hassle-free.
With this amplifier, quality meets convenience. It runs cool, minimizing the risk of overheating. This ensures long-lasting performance every time you set sail.
Explore more about the JL audio XDM4004 4 channel Marine amplifier at Garage Audio, your trusted destination for amplifiers and more. Elevate your marine adventures with unrivaled audio clarity. Make every journey memorable with the sound of music.
Specifications
Specifications
Channels Monoblock/2/3/4/5/6/8
Physical dimensions (Height) 2.05" (52 mm)
Physical dimensions (Width) Monoblock (300 W)/2-Channel: 6.85" (174 mm)
Monoblock (600 W)/3/4-Channel: 8.52" (216 mm)
5 (700 W)/ 6-Channel: 10.23" (260 mm)
Monoblock (1000 W)/5 (1000 W)/8-Channel: 14.73" (374 mm)
Physical dimensions (Depth) 7.09" (180 mm)
Weight
Monoblock (300 W): 3.8 lbs (1.72 kg)
Monoblock (600 W): 6.3 lbs (2.86 kg)
2-Channel: 3.75 lbs (1.7 kg)
3/4-Channel: 4.8 lbs (2.18 kg)
5-Channel (700 W): 6.15 lbs (2.79 kg)
6-Channel: 5.8 lbs (2.63 kg)
Warranty 3 years
Operating voltage 11-14.5 VDC (12 V Models)
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)
Monoblock (300 W): 200 W x 1
Monoblock (600 W): 400 W x 1
Monoblock (1000 W): 600 W x 1
2-Channel: 75 W RMS x 2/200 W x 1 (Bridged)
3-Channel: Main: 75 W x 2/Sub: 180 W x 1
4-Channel: 75 W RMS x 4/200 W x 2 (Bridged)
5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1
6-Channel: 75 W x 6/200 W x 3 (Bridged)
8-Channel: 75 W x 8/200 W x 4 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
Monoblock (300 W): 300 W x 1
Monoblock (600 W): 600 W x 1
Monoblock (1000 W): 1000 W x 1
2-Channel: 100 W RMS x 2
3-Channel: Main: 100 W x 2/Sub: 300 W x 1
4-Channel: 100 W RMS x 4
5-Channel (700 W): Main: 100 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1
6-Channel: 100 W x 6
8-Channel: 100 W x 8
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)
Monoblock (300 W): 160 W x 1
Monoblock (600 W): 300 W x 1
Monoblock (1000 W): 500 W x 1
2-Channel: 60 W x 2/180 W x 1 (Bridged)
3-Channel: Main: 60 W x 2/Sub: 180 W x 1
4-Channel: 60 W x 4/180 W x 2 (Bridged)
5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1
6-Channel: 60 W x 6/180 W x 3 (Bridged)
8-Channel: 60 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)
Monoblock (300 W): 270 W x 1
Monoblock (600 W): 500 W x 1
Monoblock (1000 W): 800 W x 1
2-Channel: 90 W x 2
3-Channel: Main: 90 W x 2/Sub: 300 W x 1
4-Channel: 90 W x 4
5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1
6-Channel: 90 W x 6
8-Channel: 90 W x 8
Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD)
6-Channel (24 V): 75 W x 6/200 W x 3 (Bridged)
8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD)
6-Channel (24 V): 100 W x 6
8-Channel (24 V): 100 W x 8
Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD)
6-Channel (24 V): 60 W x 6/180 W x 3 (Bridged)
8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD)
6-Channel (24 V): 90 W x 6
8-Channel (24 V): 100 W x 8
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 100 dB
Monoblock (600 W): > 87 dB
Monoblock (1000 W): > 83 dB
2/4/6-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3/5-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3/5-Channel: > 103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 80 dB
Monoblock (600 W): > 67 dB
Monoblock (1000 W): > 53 dB
2/4/6-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3/5-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3/5-Channel: > 83 dB
Damping factor @ 4 Ω Monoblock (300 W): > 120/50 Hz
Monoblock (600 W): > 1000/50 Hz
Monoblock (1000 W): > 1000/50 Hz
2/4/5/6-Channel: > 150/50 Hz
3-Channel: > 120/50 Hz
Damping factor @ 2 Ω Monoblock (300 W): > 60/50 Hz
Monoblock (600 W): > 500/50 Hz
Monoblock (1000 W): > 500/50 Hz
2/4/5/6-Channel: > 75/50 Hz
3-Channel: > 60/50 Hz
THD+N @ Rated Power Monoblock (300 W/600 W)/2/4/6-Channel: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Main Channels 3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel 3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
Frequency response (+0, -1dB) Monoblock (300 W): 10 Hz-1 kHz
Monoblock (600 W/1000 W): 7 Hz-500 Hz
2/4/6-Channel: 12 Hz-22 kHz
Frequency response (+0, -1dB): Main Channels 3/5-Channel (700 W/1000 W): 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel 3/5-Channel (700 W/1000 W): 10 Hz-1 kHz
Input voltage range @ RCA inputs Monoblock (300 W/600 W/1000 W)/2/3/4-Channel: 200 mV - 4 V RMS
Fuse rating Monoblock (300 W): 30 A
Monoblock (600 W): 50 A
2-Channel: 20 A
3-Channel: 50 A
4-Channel: 40 A
5-Channel (700 W): 60 A
6-Channel: 50 A
6-Channel (24 V): 30 A
8-Channel (24 V): 40 A
Monoblock (1000 W)/5 (1000 W)/8-Channel: 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 2/6 -Channel (24 V): 8 AWG wire
Monoblock (300 W/600 W/1000 W)/3/4/5/6/8-Channel (24V): 4 AWG wire
Signal Processing
Filter mode(s): Channels 1 & 2 Monoblock (300 W/600 W/1000 W): Off or Low-Pass only
2/4/6-Channel: Off, Low-Pass or High-Pass
3/5-Channel (700 W/1000 W): Off or High-Pass only
Filter Slope(s): Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 12/24 dB/octave
2/3/4/5 (700 W/1000 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 50 Hz-500 Hz
2/3/4/6-Channel: 50 Hz-500 Hz
5-Channel (700 W/1000W): 50 Hz-5 kHz
Filter mode(s): Channels 3 & 4 4/6-Channel: Off, Low-Pass or High-Pass
5-Channel (700 W/1000 W): Off, High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 4/5 (700 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 3 & 4 4/5 (700 W)/6-Channel: 50 Hz-500 Hz
Filter mode(s): Channels 5 & 6 6-Channel: Off, Low-Pass or High-Pass
Filter Slope(s): Channels 5 & 6 6-Channel: 12 dB/octave
Filter frequency range: Channels 5 & 6 6-Channel: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel 3/5-Channel (700 W/1000 W): Off or Low-Pass only
Filter slope(s): Subwoofer Channel 3/5-Channel (700 W/1000 W): 12/24 dB/octave
Filter frequency range: Subwoofer Channel 3/5-Channel (700 W/1000 W): 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Infrasonic filter: Subwoofer Channel Monoblock (600 W): 30 Hz, defeatable
Remote level control Optional HD-RLC or MHD-RLC (water-resistant)
Remote level modes 3/5-Channel (700 W/1000 W): All Channels or Sub Channels
Channel input mode switch 3/4-Channel: yes (2/4 Channels)
5-Channel (700 W/1000 W): yes (2/4/6 Channels)
Pass-through preamp output Monoblock (300 W/600 W)/2/3/4-Channel: Buffered
Source channel selection for PreOuts 3/5-Channel (700 W/1000 W): yes (1&2/Sum/Sub)
4-Channel: yes (1&2/Sum)
