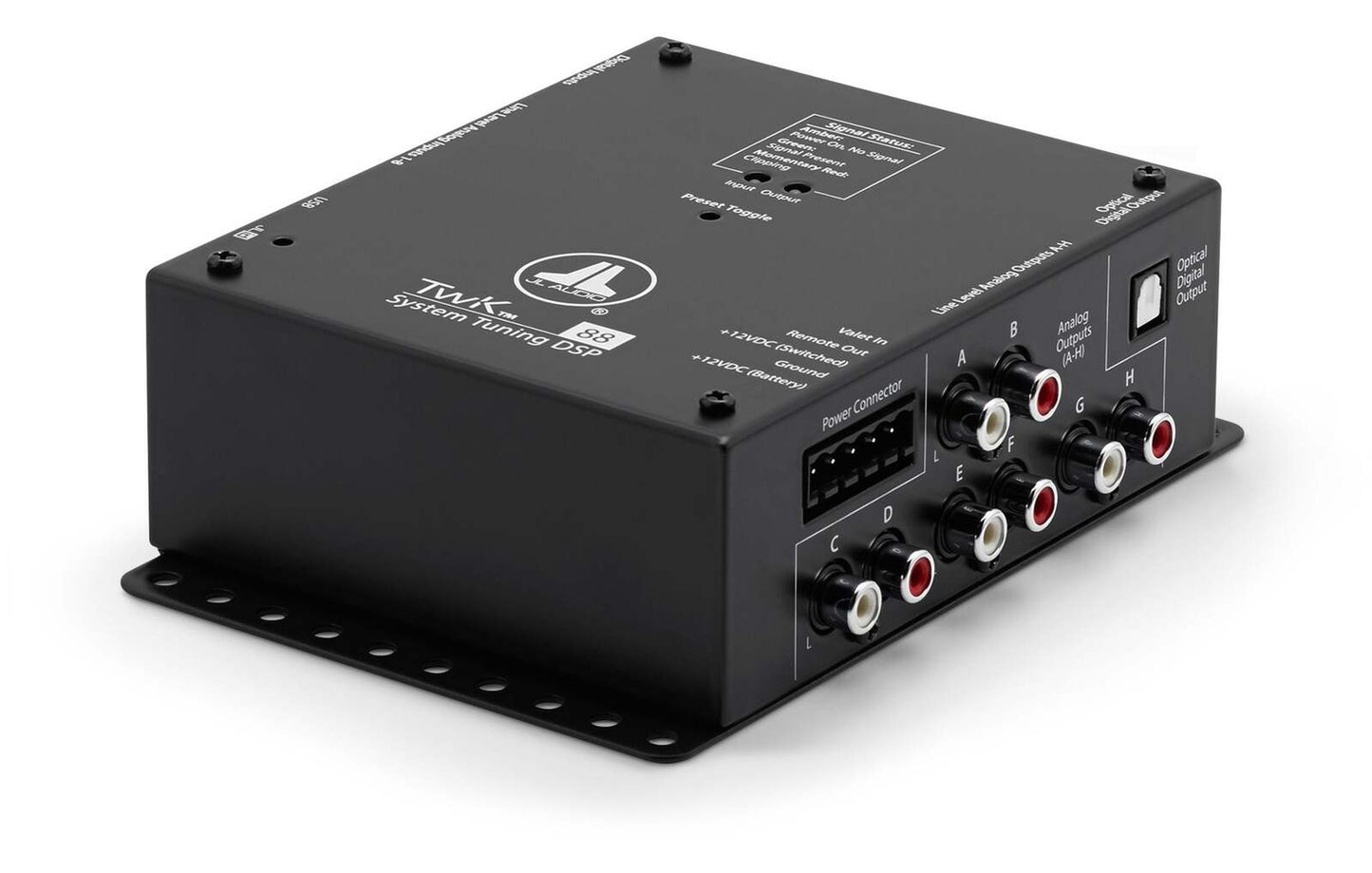

Enhance your car audio experience with the JL Audio TwK System-tuning DSP. This advanced DSP unit is engineered for those who crave precision and clarity in sound. With 8-channel analog and digital inputs, it adapts to various configurations seamlessly.

The JL Audio TwK System-tuning DSP features powerful 8-channel analog outputs. This ensures your audio system delivers unmatched sound quality. Thanks to TüN software control, tuning your system becomes intuitive.

Whether you’re an audiophile or a professional installer, the JL Audio TwK System-tuning DSP is a perfect fit. It offers unparalleled flexibility and control. Fine-tune your system to perfection with ease.

Dive deeper into custom configurations. This DSP unit is ideal for complex audio setups. The inputs and outputs offer vast compatibility, making integration simple.

Choose the JL Audio TwK System-tuning DSP for a sound experience that’s a cut above the rest. It complements any premium car audio setup beautifully. Garage Audio offers this top-tier product for exceptional audio enhancement.

Input channels TwK-88: 8
TwK-D8: 1 Digital Input
Output channels 8
Physical dimensions (Height) 1.85" (47 mm)
Physical dimensions (Width) 4.29" (109 mm)
Physical dimensions (Depth) 6.14" (156 mm)
Weight
2.58 lbs (1.17 kg)

Power supply type Regulated DC-DC SMPS
Warranty 2 years
Operating voltage 10-16 VDC
Audio
Signal-to-Noise Ratio @ 4 V (RMS) TwK-88: 98 dB
TwK-D8: 96 dB
THD+N @ Rated Power 0.02% (20 Hz-20 kHz)
Input type Line-level, Differential-balanced
Input voltage range 250 mV-7.1 V RMS
Minimum input voltage 10 mV RMS
Input level setting TwK-88: Eleven discrete selections from 250 mV-7.1V RMS
Analog output Unbalanced, stereo RCA jacks
Digital output Optical (Toslink) output (S/PDIF)
Output impedence 450 Ω
Current consumption (Standby) <1.5 mA
Current consumption (Idle) 0.7 A
Fuse rating 1 A
Signal Processing
Latency Optical - Optical: 4.860 mS
Optical - Analog: 4.805 mS
TwK-88: Analog - Analog: 5.425 mS
TwK-88: Analog - Optical: 5.470 mS
Audio resolution 24 bit/48 kHz
Number of EQ bands 10 x 8 Channels
Remote level control Included (DRC-200)
Remote level modes Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting
