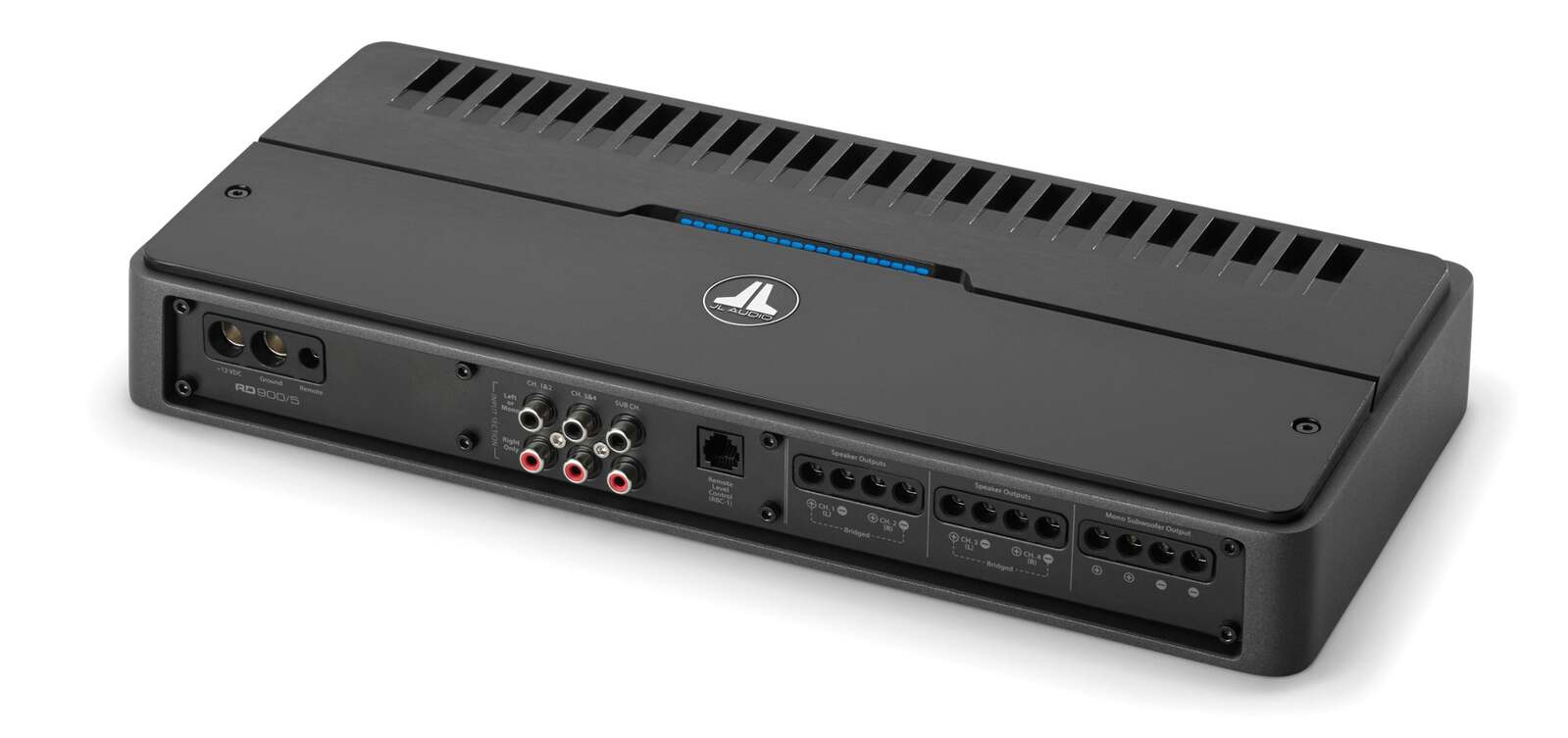

Enhance your car audio system with the JL audio RD9005 5 channel amplifier. This powerful amplifier is a must-have for true audio enthusiasts who demand excellence. With 900 watts of power, it's designed to deliver crisp, clear sound in any vehicle. Its sleek design not only adds aesthetics but also ensures efficient performance.

The JL audio RD9005 5 channel amplifier offers versatility and reliability. It is engineered to handle multiple audio channels, ensuring every note is heard as it should be. Whether you’re listening to your favorite tunes or enjoying a podcast, this amplifier provides the quality you deserve.

Installing the JL audio RD9005 5 channel amplifier is straightforward. Its compact size allows for easy integration into most car audio setups. Plus, its Class D design ensures minimal heat generation, improving performance without sacrificing space.

Choose this amplifier for unparalleled audio clarity. It’s a great addition to your car stereo system, enhancing sound quality across all speakers. The JL audio RD9005 5 channel amplifier is ideal for those who appreciate high-fidelity sound. Garage Audio's extensive selection offers the best in car audio technology, ensuring satisfaction for all users.

This amplifier promotes both power and precision. It’s equipped to enhance your driving experience, whether on a short commute or a long road trip. With its sturdy build and impressive specs, the JL audio RD9005 5 channel amplifier is more than just an audio accessory. It’s an investment in premium sound quality. Choose this top-tier amplifier to elevate your audio experience today.

Channels 5
Physical dimensions (Height) 2.13" (54 mm)
Physical dimensions (Width) 14.66" (372 mm)
Physical dimensions (Depth) 6.96" (177 mm)
Weight
6.15 lbs (2.79 kg)

Warranty 2 years
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) Main: 70 W x 4/Sub: 225 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) Main: 100 W x 4/Sub: 500 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) Main: 60 W x 4/Sub: 200 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) Main: 90 W x 4/Sub: 350 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels >104 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels >84 dB
Damping factor @ 4 Ω >150/50 Hz
Damping factor @ 2 Ω >75/50 Hz
THD+N @ Rated Power: Main Channels <1% @ 2 Ω
THD+N @ Rated Power: Subwoofer Channel <1% @ 2 Ω
Frequency response (+0, -1dB): Main Channels 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel 10 Hz-500 Hz
Input voltage range @ RCA inputs Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Fuse rating 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 4 AWG wire
Signal Processing
Filter mode(s): Channels 1 & 2 High-pass only
Filter Slope(s): Channels 1 & 2 12 dB/octave
Filter frequency range: Channels 1 & 2 50 Hz-500 Hz
Filter mode(s): Channels 3 & 4 Off or High-pass only
Filter Slope(s): Channels 3 & 4 12 dB/octave
Filter frequency range: Channels 3 & 4 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel Low-pass only
Filter slope(s): Subwoofer Channel 12 dB/octave
Filter frequency range: Subwoofer Channel 50 H-500 Hz
Bass boost
Bass boost EQ (0 to +12 dB @ 45 Hz)
Remote level control Optional (RBC-1)
Remote level modes Sub Channel only
Channel input mode switch yes (2/4/6 Channels)
Pass-through preamp output Buffered
