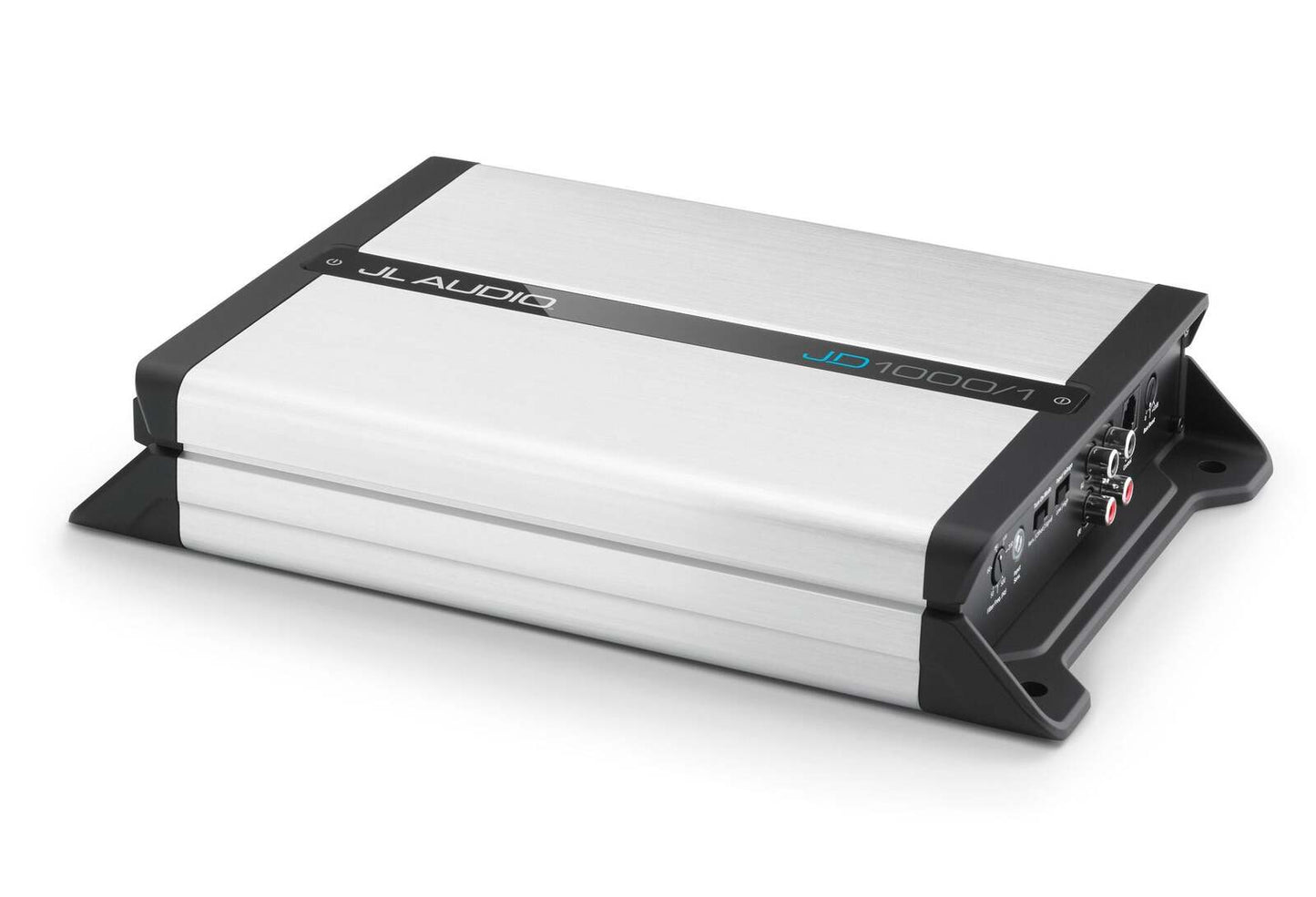

Enhance your car audio experience with the JL Audio JD10001 mono amplifier. This powerhouse is designed for those who demand exceptional sound quality. With 1000 watts of pure power, it delivers a high-performance audio experience. Tailored for audiophiles, the JL Audio JD10001 mono amplifier ensures your subwoofer hits deep tones with precision.

Built by JL Audio, renowned for crafting top-tier audio equipment, this mono amplifier promises reliability and clarity. Its Class D technology ensures efficient power usage, keeping your ride smooth and your energy consumption low. Enjoy clean sound and reduced distortion with the JL Audio JD10001 mono amplifier.

Perfect for both casual listeners and audio enthusiasts, this amplifier integrates seamlessly into any car setup. Compact yet robust, it fits effortlessly in tight spaces, allowing you to maximize your car's interior aesthetic. The JL Audio JD10001 mono amplifier is the cornerstone of an immersive audio setup.

At Garage Audio, we're passionate about audio excellence. We provide a wide range of car stereo equipment including speakers, amplifiers, and more. The JL Audio JD10001 mono amplifier stands out as a superior choice for anyone keen on elevating their in-car music experience.

Discover the difference in audio clarity and power with this sophisticated amplifier. Optimize your driving soundtrack with rich, full-bodied bass. The JL Audio JD10001 mono amplifier is not just a piece of equipment; it’s a pivotal part of any high-quality car audio system. Let your music come alive, making every drive a journey to remember within your personalized soundscape.

Channels Monoblock
Physical dimensions (Height) 2.10" (53 mm)
Physical dimensions (Width) Monoblock (250 W/500 W): 9.50" (242 mm)
Monoblock (1000 W): 11.40" (290 mm)
Physical dimensions (Depth) 7.50" (190 mm)
Warranty 2 years
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) Monoblock (250 W): 150 W x 1
Monoblock (500 W): 250 W x 1
Monoblock (1000 W): 600 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
Monoblock (250 W): 250 W x 1

Monoblock (500 W): 500 W x 1
Monoblock (1000 W): 1000 W x 1

Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)
Monoblock (250 W): 115 W x 1

Monoblock (500 W): 225W x 1
Monoblock (1000 W): 500 W x 1

Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) Monoblock (250 W): 200 W x 1
Monoblock (500 W): 400 W x 1
Monoblock (1000 W): 800 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs >80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (250 W/500 W): >60 dB
Monoblock (1000 W): >50 dB
Damping factor @ 4 Ω >1000/50 Hz
Damping factor @ 2 Ω >500/50 Hz
THD+N @ Rated Power <1% @ 2 Ω
Frequency response (+0, -1dB) 7 Hz-500 Hz
Input voltage range @ RCA inputs Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Fuse rating Monoblock (250 W): 30 A
Monoblock (500 W): 50 A
Monoblock (1000 W): 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge Monoblock (250 W): 8 AWG wire
Monoblock (500 W/1000 W):4 AWG wire
Signal Processing
Filter mode(s): Channels 1 & 2 Low-pass only
Filter Slope(s): Channels 1 & 2 12 dB/octave
Filter frequency range: Channels 1 & 2 50 Hz-500 Hz
Bass boost
Bass boost EQ (0 to +12 dB @ 45 Hz)
Remote level control Optional (RBC-1)
Pass-through preamp output Buffered
