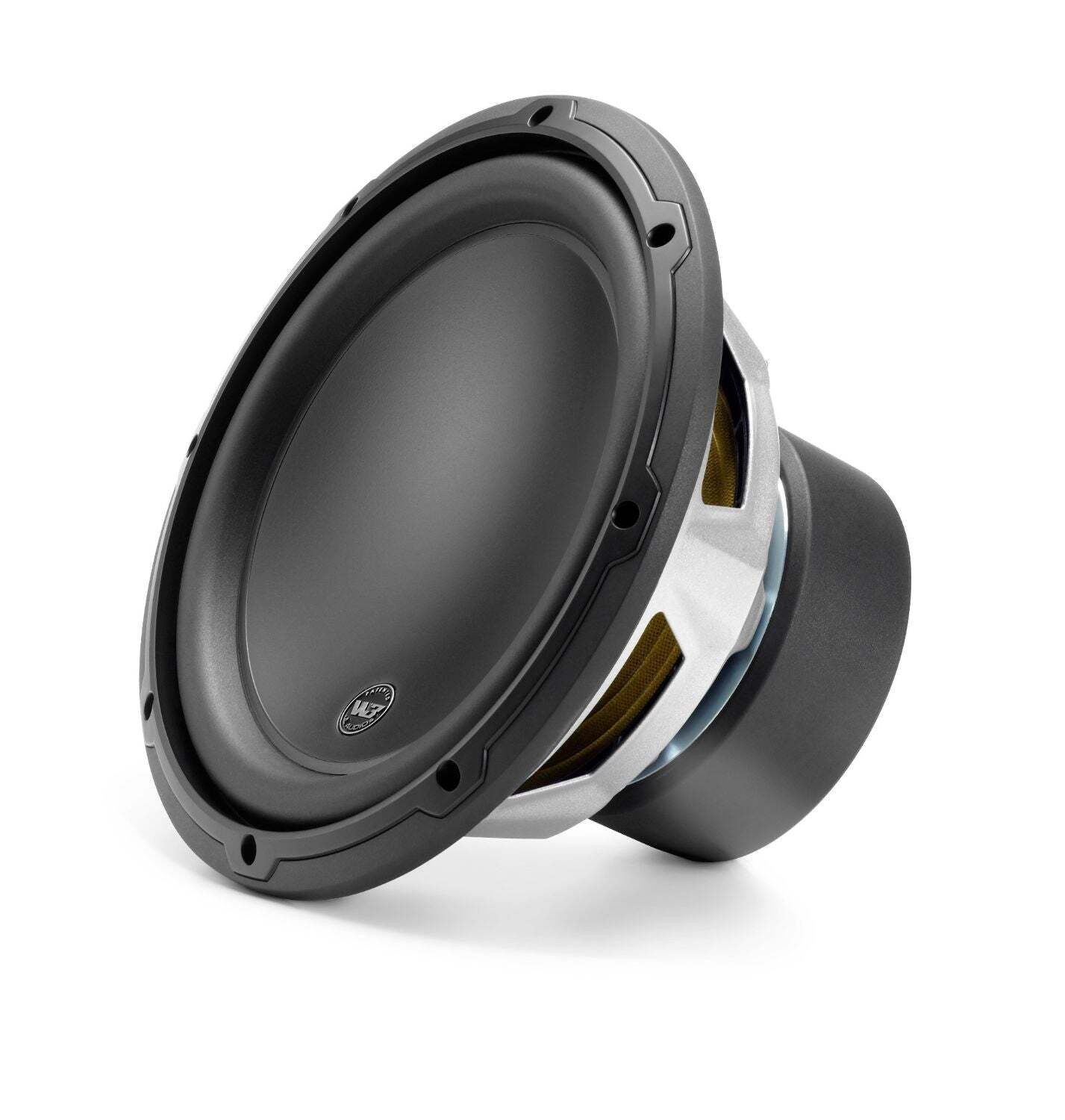

Transform your car audio experience with the JL audio 10 inch Subwoofer 10W3v3-4. At Garage Audio, we understand the importance of deep bass and clarity. This subwoofer is more than just a speaker; it's a powerhouse designed to deliver precision sound quality.

Featuring a solid construction, the JL audio 10 inch Subwoofer 10W3v3-4 offers durability and reliability for all your audio needs. It's perfect for those who seek rich bass without sacrificing space. The compact design means it fits seamlessly into your vehicle, providing that full-bodied sound experience you crave.

The innovative cone and surround design of the JL audio 10 inch Subwoofer 10W3v3-4 ensure dynamic performance, enhancing every beat. Whether you're cruising down the highway or stuck in traffic, the impeccable sound quality remains consistent. Perfect for all music genres, this subwoofer amplifies every note, giving life to your favorite songs.

Garage Audio is committed to providing top-notch car audio solutions. Our JL audio 10 inch Subwoofer 10W3v3-4 is compatible with various amplifiers for a tailor-made sound experience. Easy to install, it's a great addition to any car audio setup. Experience the sound revolution and elevate your in-car entertainment.

Explore the ultimate in bass performance with JL Audio products at Garage Audio. Whether you’re upgrading an existing system or installing a new one, the JL audio 10 inch Subwoofer 10W3v3-4 is an exceptional choice. Discover the superior sound difference today.

Sizes 6.5"/8"/10"/12"/13.5"
Weight 6.5": 6.1 lbs (2.8 kg)
8": 8.2 lbs (3.7 kg)
10": 12.25 lbs (5.56 kg)
12": 14.50 lbs (6.58 kg)
13.5": 17.75 lbs (8.05 kg)
Continuous power handling (RMS) 6.5": 150 W
8": 250 W
10": 500 W
12": 500 W
13.5": 600 W
Sensitivity (SPL @ 1 W/1 m) 6.5": 80.49 dB
8": 83.24 dB
10" (2 Ω): 85.37 dB
10" (4 Ω): 84.87 dB
12" (2 Ω): 87.15 dB
12" (4 Ω): 87.15 dB
13.5" (2 Ω): 87.63 dB
13.5" (4 Ω): 87.90 dB
Nominal impedance 2 Ω or 4 Ω
Recommended amplifier power (RMS) 6.5": 50-150 W
8": 75-250 W
10": 150-500 W
12": 150-500 W
13.5": 150-600 W
Cone material Mineral-filled polypropylene
Warranty 1 year
Connections
Speaker connections Push-button terminal
Mounting Dimensions
Frame outer diameter 6.5": 6.85" (174 mm)
8": 8.54" (217 mm)
10": 10.5" (267 mm)
12": 12.5" (318 mm)
13.5": 14.0" (356 mm)
Mounting depth clearance 6.5": 4.25" (108 mm)
8": 4.63" (118 mm)
10": 5.93" (151 mm)
12": 6.65" (169 mm)
13.5": 7.63" (194 mm)
Mounting hole 6.5": 5.5" (140 mm)
8": 7.09" (180 mm)
10": 9.0625" (230 mm)
12": 11.0625" (281 mm)
13.5": 12.5625" (319 mm)
Bolt hole circle 6.5": 6.125" (156 mm)
8": 7.85" (199 mm)
10": 9.7" (246.5 mm)
12": 11.7" (297 mm)
13.5": 13.2" (335 mm)
Motor outer diameter 6.5": 4.25" (108 mm)
8": 4.75" (121 mm)
10": 5.25" (133 mm)
12": 5.5" (140 mm)
13.5": 5.79" (147 mm)
Driver displacement 6.5": 0.02 cu ft (0.57 L)
8": 0.03 cu ft (0.85 L)
10": 0.049 cu ft (1.39 L)
12": 0.071 cu ft (2.01 L)
13.5": 0.096 cu ft (2.72 L)
Parameters
Free Air Resonance (FS) 6.5": 41.80 Hz
8": 35.14 Hz
10" (2 Ω): 32.97 Hz
10" (4 Ω): 31.49 Hz
12" (2 Ω): 27.97 Hz
12" (4 Ω): 26.72 Hz
13.5" (2 Ω): 24.70 Hz
13.5" (4 Ω): 23.66 Hz
Electrical “Q” (Qes) 6.5": 0.533
8": 0.501
10" (2 Ω): 0.533
10" (4 Ω): 0.523
12" (2 Ω): 0.534
12" (4 Ω): 0.472
13.5" (2 Ω): 0.544
13.5" (4 Ω): 0.465
Mechanical “Q” (Qms) 6.5": 11.027
8": 7.071
10" (2 Ω): 7.027
10" (4 Ω): 7.017
12" (2 Ω): 7.678
12" (4 Ω): 7.572
13.5" (2 Ω): 6.936
13.5" (4 Ω): 6.774
Total “Q” (Qts) 6.5": 0.508
8": 0.467
10" (2 Ω): 0.495
10" (4 Ω): 0.485
12" (2 Ω): 0.5
12" (4 Ω): 0.444
13.5" (2 Ω): 0.504
13.5" (4 Ω): 0.435
Equivalent Compliance (Vas) 6.5": 0.181 cu ft (5.13 L)
8": 0.54 cu ft (15.29 L)
10" (2 Ω): 1.136 cu ft (32.17 L)
10" (4 Ω): 1.138 cu ft (32.23 L)
12" (2 Ω): 2.806 cu ft (79.47 L)
12" (4 Ω): 2.844 cu ft (80.54 L)
13.5" (2 Ω): 4.635 cu ft (131.26 L)
13.5" (4 Ω): 4
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 6.5": 0.35" (8.89 mm)
8": 0.375" (10.0 mm)
10": 0.550" (14.0 mm)
12": 0.510" (13.0 mm)
13.5": 0.610" (15.5 mm)
Reference Efficiency (NO) 6.5": 0.07%
8": 0.13%
10" (2 Ω): 0.21%
10" (4 Ω): 0.19%
12" (2 Ω): 0.31%
12" (4 Ω): 0.31%
13.5" (2 Ω): 0.35%
13.5" (4 Ω): 0.37%
Effective piston area (SD) 6.5": 17.36 in² (0.0112 m²)
8": 32.02 in² (0.021 m²)
10": 53.475 in² (0.0345 m²)
12": 80.600 in² (0.0520 m²)
13.5": 103.850 in² (0.0670 m²)
DC resistance (RE) 6.5": 3.476 Ω
8": 3.77 Ω
10" (2 Ω): 1.70 Ω
10" (4 Ω): 3.567 Ω
12" (2 Ω): 1.658 Ω
12" (4 Ω): 3.563 Ω
13.5" (2 Ω): 1.659 Ω
13.5" (4 Ω): 3.569 Ω
Sealed Enclosure Specifications
Wall thickness 6.5": 0.5" (13 mm)
8"/10"/12"/13.5": 0.75" (19 mm)
Front baffle thickness 6.5": 0.5" (13 mm)
8"/10"/12"/ 13.5": 0.75" (19 mm)
Volume (net int.) 6.5": 0.15 cu ft (4.2 L)
8": 0.30 cu ft (8.5 L)
10" (2 Ω): 0.625 cu ft (17.7 L)
10" (4 Ω): 0.625 cu ft (17.7 L)
12" (2 Ω): 1.250 cu ft (35.4 L)
12" (4 Ω): 1.250 cu ft (35.4 L)
13.5" (2 Ω): 1.75 cu ft (49.6 L)
13.5" (4 Ω): 1.500 cu ft
External width (W) 6.5": 8.5" (216 mm)
8": 10" (254 mm)
10" (2 Ω): 17.875" (454 mm)
10" (4 Ω): 17.875" (454 mm)
12" (2 Ω): 23" (584 mm)
12" (4 Ω): 21" (533 mm)
13.5" (2 Ω): 16.625" (422 mm)
13.5" (4 Ω): 16" (406 mm)
External height (H) 6.5": 8.5" (216 mm)
8": 10" (254 mm)
10": 11" (279 mm)
12": 14" (356 mm)
13.5": 16" (406 mm)
External depth (D) 6.5": 6.25" (159 mm)
8": 9.5" (241 mm)
10": 9" (229 mm)
12": 10" (254 mm)
13.5" (2 Ω): 16" (406 mm)
13.5" (4 Ω): 14.625" (371 mm)
-3 dB cutoff frequency (F3) 6.5": 58.43 Hz
8": 54 Hz
10" (2 Ω): 48.3 Hz
10" (4 Ω): 46.9 Hz
12" (2 Ω): 41.8 Hz
12" (4 Ω): 43.7 Hz
13.5" (2 Ω): 37.7 Hz
13.5" (4 Ω): 40.4 Hz
System resonance (FC) 6.5": 62.11 Hz
8": 58.8 Hz
10" (2 Ω): 55.3 Hz
10" (4 Ω): 52.9 Hz
12" (2 Ω): 50.4 Hz
12" (4 Ω): 50.2 Hz
13.5" (2 Ω): 47.2 Hz
13.5" (4 Ω): 48.5 Hz
System Q at resonance (QTC) 6.5": 0.7548
8": 0.783
10" (2 Ω): 0.831
10" (4 Ω): 0.818
12" (2 Ω): 0.96
12" (4 Ω): 0.83
13.5" (2 Ω): 0.96
13.5" (4 Ω): 0.89
Ported Enclosure Specifications
Wall thickness 6.5": 0.5" (13 mm)
8"/10"/12"/13.5": 0.75" (19 mm)
Front baffle thickness 6.5": 0.5" (13 mm)
8"/10"/12"/13.5": 0.75" (19 mm)
Volume (net int.) 6.5": 0.25 cu ft (7.1 L)
8": 0.35 cu ft (9.9 L)
10" (2 Ω): 1.25 cu ft (35.4 L)
10" (4 Ω): 1.125 cu ft (31.9 L)
12": 1.75 cu ft (49.6 L)
13.5" (2 Ω): 2.5 cu ft (70.8 L)
13.5" (4 Ω): 2.25 cu ft (63.7 L)
External width (W) 6.5": 14.50" (368 mm)
8": 13.5" (330 mm)
10" (2 Ω): 25" (635 mm)
10" (4 Ω): 23" (584 mm)
12": 29" (737 mm)
13.5" (2 Ω): 23.625" (600 mm)
13.5" (4 Ω): 21.75" (552 mm)
External height (H) 6.5": 10.125" (257 mm)
8": 10" (254 mm)
10": 12" (305 mm)
12": 14" (356 mm)
13.5": 17" (432 mm)
External depth (D) 6.5": 5.25" (133 mm)
8": 9.25" (203 mm)
10" (2 Ω): 12.5" (318 mm)
10" (4 Ω): 13.5" (330 mm)
12": 12.625" (321 mm)
13.5": 18" (457 mm)
Internal slot port width 6.5": 4.25" (108 mm)
10": 1.25" (32 mm)
12": 1.375" (35 mm)
13.5": 1.5" (38 mm)
Internal slot port height 6.5": 0.5" (13 mm)
10": 10.5" (267 mm)
12": 12.5" (318 mm)
13.5": 15.5" (394 mm)
Internal slot port length 6.5": 14.75" (374 mm)
10" (2 Ω): 24.75" (629 mm)
10" (4 Ω): 28.625" (727 mm)
12": 26.8125" (681 mm)
13.5" (2 Ω): 36.25" (921 mm)
13.5" (4 Ω): 34.375" (873 mm)
Port extension length 6.5": 13.5" (330 mm)
10" (2 Ω): 11.625" (295 mm)
10" (4 Ω): 15" (381 mm)
12": 13.5" (343 mm)
13.5" (2 Ω): 17.5" (445 mm)
13.5" (4 Ω): 15.625" (397 mm)
Tuning frequency (FB) 6.5": 38 Hz
8": 35 Hz
10" (2 Ω): 32 Hz
10" (4 Ω): 31.8 Hz
12": 30 Hz
13.5" (2 Ω): 25 Hz
13.5" (4 Ω): 27 Hz
-3 dB cutoff frequency (F3) 6.5": 34.92 Hz
8": 41.0 Hz
10" (2 Ω): 31.4 Hz
10" (4 Ω): 31.7 Hz
12" (2 Ω): 36 Hz
12" (4 Ω): 35 Hz
13.5": 35 Hz
Internal round port length 8": 18" (457 mm) - round port requires a 90º elbow to fit in the specified enclosure
Internal round port diameter 8": 2" (51 mm)
