JL Audio

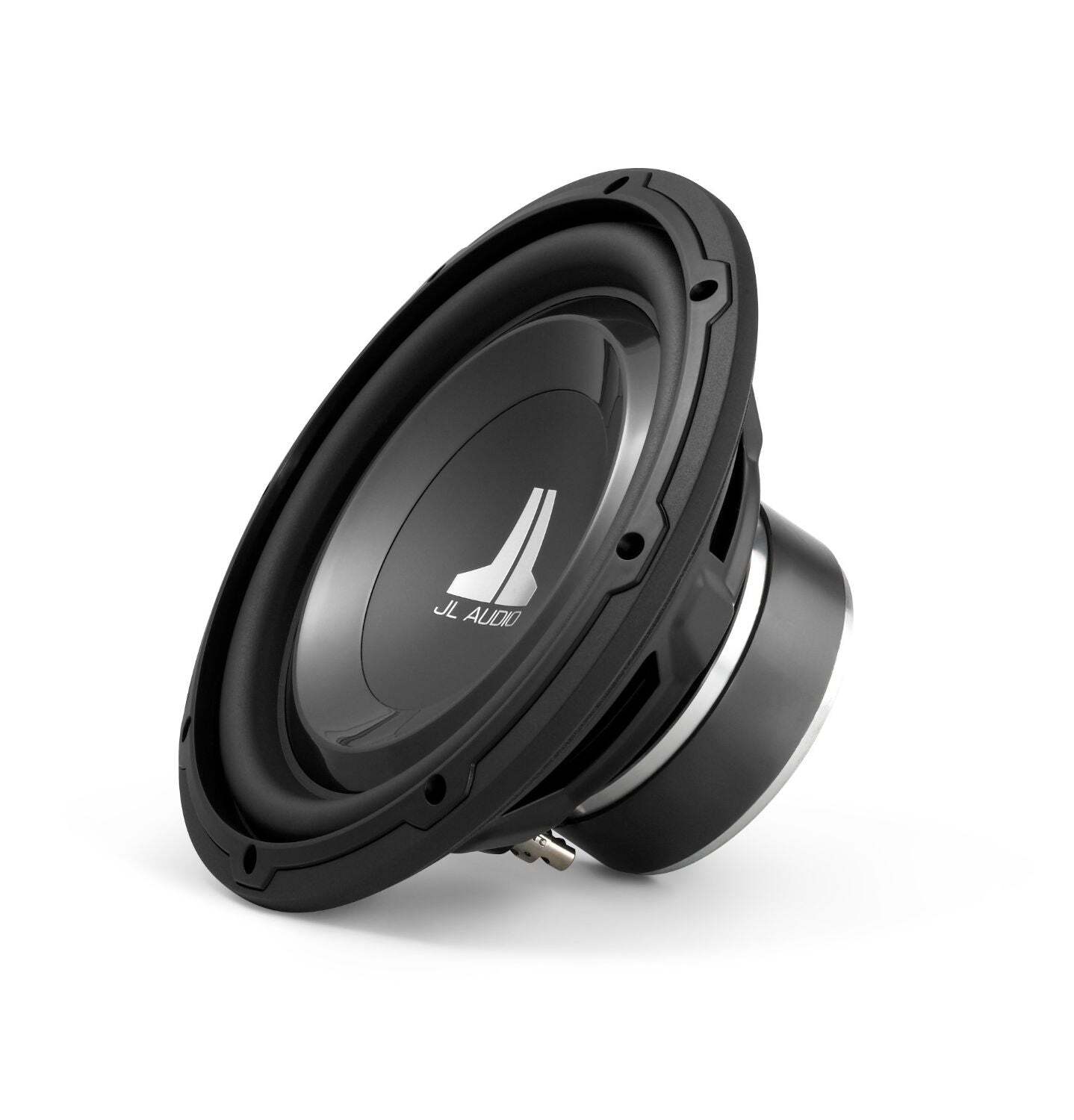

JL Audio 10 Inch Subwoofer 10W1V3-4 for Deep Bass
● Sold out
Ask our Morayfield team about fitment, installation parts and labour pricing.
The JL Audio 10 inch Subwoofer 10W1V3-4 is your ticket to a richer, more immersive audio experience in your car. Known for exceptional sound quality, this subwoofer will elevate your music. Whether you're a casual listener or an audio enthusiast, it delivers outstanding performance.
Featuring a 10-inch design, the JL Audio 10 inch Subwoofer 10W1V3-4 is engineered to fit perfectly into compact spaces. Its versatile size doesn’t compromise its ability to deliver deep bass. Enjoy clear, booming lows that will energize every drive.
This subwoofer from JL Audio excels in both power and precision. It handles high power levels while ensuring that audio details are not lost. Experience music in its full glory with notes as the artist intended. It's perfect for anyone seeking to enhance their car's audio system.
Constructed with durable materials, the JL Audio 10 inch Subwoofer 10W1V3-4 is built to last. It withstands the challenges of daily use and provides consistent performance. Designed with innovation at its core, it brings together quality and technology for superior sound.
Install this in your car from Garage Audio, known for quality car accessories. Trust in a reputation for excellence whether selecting car stereos, speakers, or amplifiers. Combine the JL Audio 10 inch Subwoofer 10W1V3-4 with other premium products for an unparalleled audio setup.
Visit Garage Audio for top-notch sound solutions. Elevate your driving experience with the JL Audio 10 inch Subwoofer 10W1V3-4. Hear every detail, feel every beat, and drive with heart-pounding rhythm. Make it the centerpiece of your sound system today.
Specifications
Weight 8": 7.4 lbs (3.4 kg)
10": 9.9 lbs (4.5 kg)
12": 12.2 lbs (5.5 kg)
Continuous power handling (RMS) 8": 150 W
10"/12": 300 W
Sensitivity (SPL @ 1 W/1 m) 8": 84.8 dB
10" (2 Ω): 83.9 dB
10" (4 Ω): 84.2 dB
12" (2 Ω): 85.9 dB
12" (4 Ω): 86.1 dB
Nominal impedance 2 Ω or 4 Ω
Recommended amplifier power (RMS) 8": 50-150 W
10"/12": 75-300 W
Cone material Mineral-filled polypropylene
Warranty 1 year
Connections
Speaker connections Push-button terminal
Mounting Dimensions
Frame outer diameter 8": 8.5" (216 mm)
10": 10.5" (267 mm)
12": 12.5" (318 mm)
Mounting depth clearance 8": 3.86" (98 mm)
10": 4.6" (117 mm)
12": 5.41" (137 mm)
Mounting hole 8": 7.09" (180 mm)
10": 9.0625" (230 mm)
12": 11.0625" (281 mm)
Bolt hole circle 8": 7.85" (199 mm)
10": 9.7" (246 mm)
12": 11.7" (297 mm)
Motor outer diameter 8": 4.72" (120 mm)
10": 4.92" (125 mm)
12": 5.25" (133 mm)
Driver displacement 8": 0.018 cu ft (0.51 L)
10": 0.037 cu ft (1.05 L)
12": 0.052 cu ft (1.47 L)
Parameters
Free Air Resonance (FS) 8": 35.40 Hz
10" (2 Ω): 25.23 Hz
10" (4 Ω): 26.15 Hz
12" (2 Ω): 26.55 Hz
12" (4 Ω): 26.21 Hz
Electrical “Q” (Qes) 8": 0.451
10" (2 Ω): 0.463
10" (4 Ω): 0.475
12" (2 Ω): 0.554
12" (4 Ω): 0.535
Mechanical “Q” (Qms) 8": 5.791
10" (2 Ω): 7.246
10" (4 Ω): 7.243
12" (2 Ω): 8.731
12" (4 Ω): 8.2
Total “Q” (Qts) 8": 0.418
10" (2 Ω): 0.436
10" (4 Ω): 0.446
12" (2 Ω): 0.521
12" (4 Ω): 0.502
Equivalent Compliance (Vas) 8": 0.68 cu ft (19.26 L)
10" (2 Ω): 1.559 cu ft (44.15 L)
10" (4 Ω): 1.533 cu ft (43.41 L)
12" (2 Ω): 2.544 cu ft (72.04 L)
12" (4 Ω): 2.706 cu ft (76.63 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 8": 0.3" (8 mm)
10"/12": 0.45" (11 mm)
Reference Efficiency (NO) 8": 0.18%
10" (2 Ω): 0.15%
10" (4 Ω): 0.16%
12" (2 Ω): 0.23%
12" (4 Ω): 0.25%
Effective piston area (SD) 8": 32.67 in² (0.0211 m²)
10": 53.584 in² (0.0346 m²)
12": 81.426 in² (0.0525 m²)
DC resistance (RE) 8": 4.06 Ω
10" (2 Ω): 2.233 Ω
10" (4 Ω): 3.902 Ω
12" (2 Ω): 2.210 Ω
12" (4 Ω): 3.915 Ω
Sealed Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 8": 0.350 cu ft (9.90 L)
10": 0.55 cu ft (15.57 L)
12": 1.10 cu ft (31.5 L)
External width (W) 8": 12" (305 mm)
10": 16.5" (419 mm)
12": 16" (406 mm)
External height (H) 8": 12" (305 mm)
10": 16.5" (419 mm)
12": 16" (406 mm)
External depth (D) 8": 8.625" (219 mm)
10": 7" (178 mm)
12": 11" (279 mm)
-3 dB cutoff frequency (F3) 8": 59.9 Hz
10" (2 Ω): 42.3 Hz
10" (4 Ω): 43.1 Hz
12" (2 Ω): 38.99 Hz
12" (4 Ω): 39.63 Hz
System resonance (FC) 8": 60.7 Hz
10" (2 Ω): 49.4 Hz
10" (4 Ω): 50.9 Hz
12" (2 Ω): 48.39 Hz
12" (4 Ω): 48.75 Hz
System Q at resonance (QTC) 8": 0.717
10" (2 Ω): 0.853
10" (4 Ω): 0.868
12" (2 Ω): 0.9496
12" (4 Ω): 0.9338
Ported Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 8": 0.50 cu ft (14.2 L)
10": 0.9 cu ft (25.5 L)
12": 1.6 cu ft (45.3 L)
External width (W) 8": 13.0" (330 mm)
10": 17.0" (432 mm)
12": 25" (635 mm)
External height (H) 8": 10" (254 mm)
10": 11.5" (292 mm)
12": 15.5" (394 mm)
External depth (D) 8": 11.125" (283 mm)
10": 15.25" (387 mm)
12": 13" (330 mm)
Internal slot port width 10": 1.125" (28.6 mm)
12": 1.5" (38 mm)
Internal slot port height 10": 10.0" (254 mm)
12": 14" (356 mm)
Internal slot port length 10": 30.1875" (767 mm)
12": 30.75" (781 mm)
Port extension length 10": 12.50" (318 mm)
12": 17" (432 mm)
Tuning frequency (FB) 8": 38 Hz
10": 32.17 Hz
12": 31.79 Hz
-3 dB cutoff frequency (F3) 8": 39.10 Hz
10" (2 Ω): 31.36 Hz
10" (4 Ω): 31.92 Hz
12" (2 Ω): 31 Hz
12" (4 Ω): 31.41 Hz
Internal round port length 8": 10" (254 mm)
Internal round port diameter 8": 2" (51 mm)
