Gator

Gator GRV96MKT

Gator GRV96MKT

Regular price $245.00 AUD
Regular price Sale price $245.00 AUD
Sale Sold out

GRV96MKT

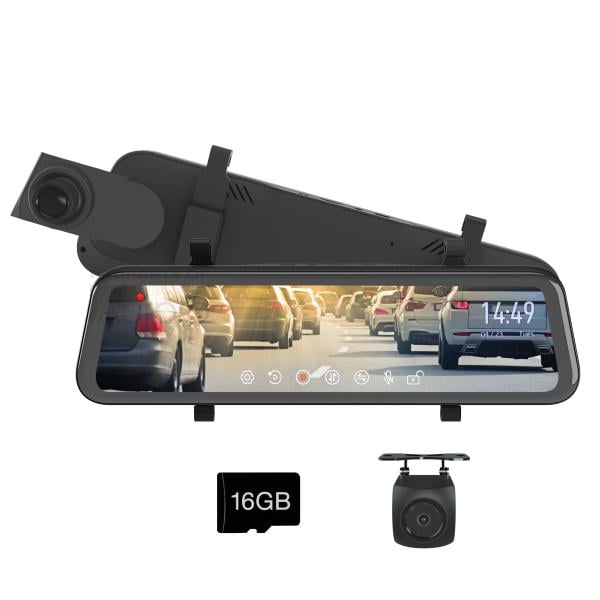

9" TOUCH SCREEN HD MIRROR DISPLAY 1080P DUAL RECORDING, STREAMING & REVERSE CAMERA KIT

Locate a Dealer
Features:
  • 9" high resolution super wide LCD touch screen mirror monitor with rubber clip-on mirror mount for simple and secure installation, suitable for all vehicles with a rear-view mirror
  • Dual channel recording with 1080P full high definition front dash cam and 1080P high definition rear dash cam, provides clear crisp videos at the front and rear of the vehicle
  • 120-degree wide angle front and 110-degree rear camera lens reduces blind spots
  • Automatic reverse trigger displays reverse image and parking gridlines when reverse gear is engaged to assist with reverse parking
  • Live streaming function enables the monitor to display rear vision while driving, ideal for vehicles with limited rear vision
  • Built in G-Sensor detects an impact and securely saves the video footage on the micro SD Card separate from the continuous loop files
  • Seamless cycle loop recording function continuously records in an indefinite loop without stopping, constantly overwriting the oldest file with the newest video
  • Includes 16GB Micro SD Card and supports Micro SD Card class 10 up to 128GB (sold separately)
  • Includes a 5.4m rear camera cable with trigger wire to connect the rear cam to the monitor
  • GRV90EXT 3m extension cable also available if extra length is required for installation in longer vehicles such as; utes, trucks and vans (sold separately)
  • GUNIHWC Hard Wire Kit available for connection via vehicle fuse box instead of using the included accessory socket power adaptor (sold separately)
  • Also includes USB lead, mounting screws, 3M adhesive, mirror protector pads and rubber mounting clips
Description:

Reverse, live streaming and dual channel dash cam recording capabilities, the Gator GRV96MKT provides the ultimate surveillance and protection for your vehicle.

Featuring a super wide 9" high resolution touch display the mirror monitor simply clips over the existing rear view mirror in the vehicle for convenient unobtrusive viewing.

With 2 channel recording you can be confident to capture an incident at all times. The front camera is built into the mirror monitor and records Full HD 1080P with a 120 degree field of view, while the rear camera can be mounted at the rear of the vehicle and records HD 1080P videos with a 110 degree field of view. GRV96MKT also has a built in G-Sensor to detect sudden impacts and loop records, it includes a 16GB Micro SD Card in the box and can be expanded up to 128GB if more memory is required. It will capture any incidents or events that may occur at the front and rear of the vehicle.

While driving, the mirror monitor will simply appear as a standard reflective mirror and also has the ability to live stream, displaying what is behind the vehicle in real time, which is ideal for Trucks, Utes, Vans and Motorhomes which may have limited rear vision. When reverse gear is selected, the monitor will automatically switch to the reverse camera and display parking gridlines to provide guidance when reversing.

The kit simply plugs into the vehicle accessory socket for power with the included 3.4m power cable and if the rear camera is connected to a reverse trigger it will display parking gridlines when the vehicle is in reverse.


MONITOR SPECIFICATIONS

  • MONITOR SIZE: 9.35"
  • MOUNTING TYPE: CLIP ON REAR VIEW MIRROR
  • INPUT VOLTAGE: 5V (12/24V ACCESSORY POWER ADAPTER INCLUDED)
  • VIDEO INPUTS: 1
  • CONNECTION TYPE: 2.5MM JACK
  • DIMENSIONS: 72mm(H) X 260mm(W) X 18mm(D)



RECORDING (DASH CAM) SPECIFICATIONS

  • NUMBER OF CHANNELS: 2
  • RESOLUTION:
    • FULL HD 1080P @ 30FPS (FRONT)
    • HD 1080P @ 25FPS (REAR)
  • CAMERA ANGLE:
    • 120 DEGREE (FRONT)
    • 110 DEGREE (REAR)
  • G-SENSOR: YES
  • SUPER CAPACITOR / BATTERY: 400MAH 3.7V BATTERY
  • AUTO POWER ON/OFF: YES
  • MICROPHONE: YES
  • SPEAKER: YES
  • USB/POWER INPUT: YES (MICRO)
  • HARD WIRE KIT: OPTIONAL
  • POWER ADAPTOR VOLTAGE: 12/24V
  • INPUT VOLTAGE: 5V 2A
  • RECORDING MODES:
    • CONTINUOUS LOOP: YES (SEAMLESS CYCLE RECORDING)
    • DRIVING IMPACT/INCIDENT DETECTION: YES
    • MANUAL (SOS): YES
    • PARK IMPACT DETECTION: NO
    • PARK MOTION DETECTION: NO
  • MEMORY CARD CAPACITY / CLASS: INCLUDES 16GB, SUPPORTS UP TO 128GB (CARD MUST BE C10 OR ABOVE)



REAR CAMERA SPECIFICATIONS

  • MOUNT TYPE: SURFACE MOUNT
  • CAMERA RESOLUTION: 1080P
  • CAMERA ANGLE: 110 DEGREE
  • IMAGE SENSOR (CMOS or CCD): CMOS
  • PARKING GRIDLINES: YES
  • IP RATING: IP65
  • INPUT VOLTAGE: 12V
  • CONNECTION TYPE: MICRO 4 PIN
  • VIDEO CABLE LENGTH: 5.4M (Additional 3M Extension Cable Also Available - GRV90EXT - sold separately)
  • REVERSE TRIGGER ON VIDEO CABLE: YES
  • DIMENSIONS (Camera Only): 19mm(H) x 24mm(W) x 22mm(L)



KIT SPECIFICATIONS

  • WIRED OR WIRELESS: WIRED
  • INCLUSIONS:
    • MIRROR MONITOR WITH BUILT IN DASH CAM
    • USB LEAD
    • 5.4M CAMERA EXTENSION CABLE WITH TRIGGER WIRE
    • 3.4M 12V/24V ACCESSORY PLUG POWER ADAPTOR
    • MOUNTING SCREWS
    • 3M ADHESIVE FOR BUTTERFLY CAMERA
    • MIRROR PROTECTING PADS
    • RUBBER MOUNTING CLIPS



OPTIONAL EXTRAS AND SPARE PARTS

  • OPTIONAL EXTRAS:
    • GRV90EXT: 3M Video Extension Cable
    • GUNIHWC: Hard Wire Kit
  • SPARE PARTS (NOTE THESE ARE NOT SOLD IN RETAIL PACKAGING / NO BARCODE AVAILABLE)
    • GRV9RC: Replacement Rear Camera
    • GRV9LOOM: Replacement main camera harness (4 pin to 2.5mm jack)
    • GRV912V: 12/24V Cigarette lighter adapter
    • GRV9RMC: Monitor rubber mounting clips
    • GRV9BRA: Monitor mounting brackets
