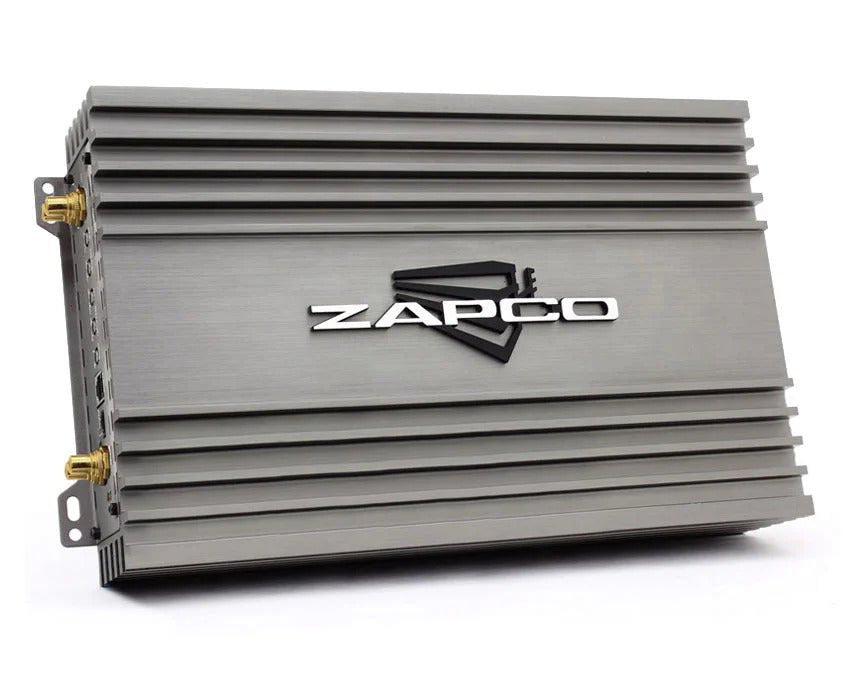

Zapco Z-1KDII Mono Sound Q Class D Bass Amplifier

Availability: Please contact Garage Audio to confirm current stock and collection timing. Online stock quantities are not a live supplier-stock confirmation.

Enhance your car audio experience with the Zapco Mono Sound Q Class D Bass Amplifier. This amplifier is designed for audiophiles seeking precision and power. Its advanced Class D technology ensures efficient performance, providing crisp and rich bass tones.

At Garage Audio, we offer only the finest audio equipment to elevate your ride. This Zapco Mono Sound Q Class D Bass Amplifier stands out with its robust construction and easy installation. It's a perfect match for your car's sound system.

Zapco Mono Sound Q Class D Bass Amp

Features and Functions

• Mono Class D Linkable, bass amplifier,
• Stable into 1 Ohm (2 Ohm w/2 amps Linked/Strapped)
• PWM MOSFET power supply
• 24 dB Variable low pass (LPF) crossover
• 12 dB Variable bass boost equalization
• 0 – 180 degree variable phase shift
• 24 dB Variable subsonic filter
• Selectable master and slave operation for Linked (strapped) amplifier operation

Specifications

• Power @ 4Ω: 450 watts
• Power @ 2Ω: 700 watts
• Power @ 1Ω: 1050 watts
• Linked @ 2Ω: 1800 Watts
• THD @ Rated Power  \< 0.05%
• Signal to Noise Ratio > 90dB
• Damping factor: > 350
• Efficiency: 86%
• Input Sensitivity .2v to 8v
• Dimensions in mm: 190(W) x 62(H) x 275(L) Overall: 190(W) x 62(H) x 305(L)
