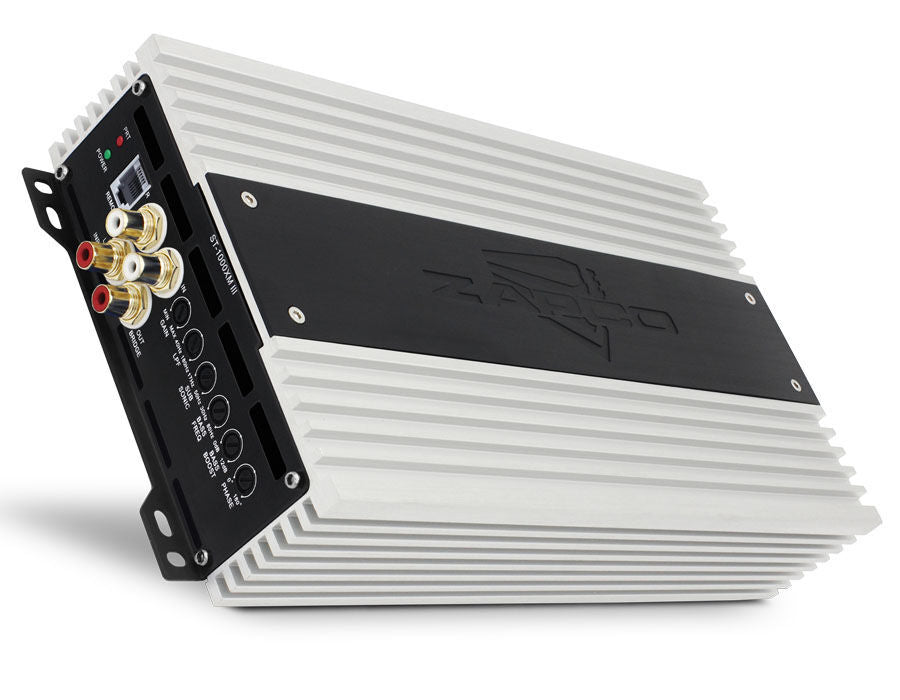

ZAPCO Mono Class D Bass Amplifier

• Features and Functions
  •Single channel, Class D, Bass Amplifier
  •New aluminum chassis
  •Variable input gain control
  •Variable electronic crossover
  •Variable subsonic filter
  •Variable bass boost control
  •Variable center frequency for bass boost
  •variable phase control
  •Strappable to use a pair of amps on a single voice coil
  •Dash mount remote gain control
  Specifications
  •Power @ 1Ω: 1 x 1000 watts
  •THD @ Rated Power < 0.2%THD
  •Power @ 2Ω: 1 x 700 watts
  •Power @ 4Ω: 1 x 500 watts
  •Signal to Noise Ratio > 100dB
  •THD + Noise < 0.1%
  •Efficiency > 85%
  •Frequency Response 10Hz to 200Hz ±1dB
  •Input Sensitivity .25v to 5v
  •Dimensions in mm: 160(W) x 58(H) x 300(L) Overall: 160(W) x 58(H) x 325(L)
