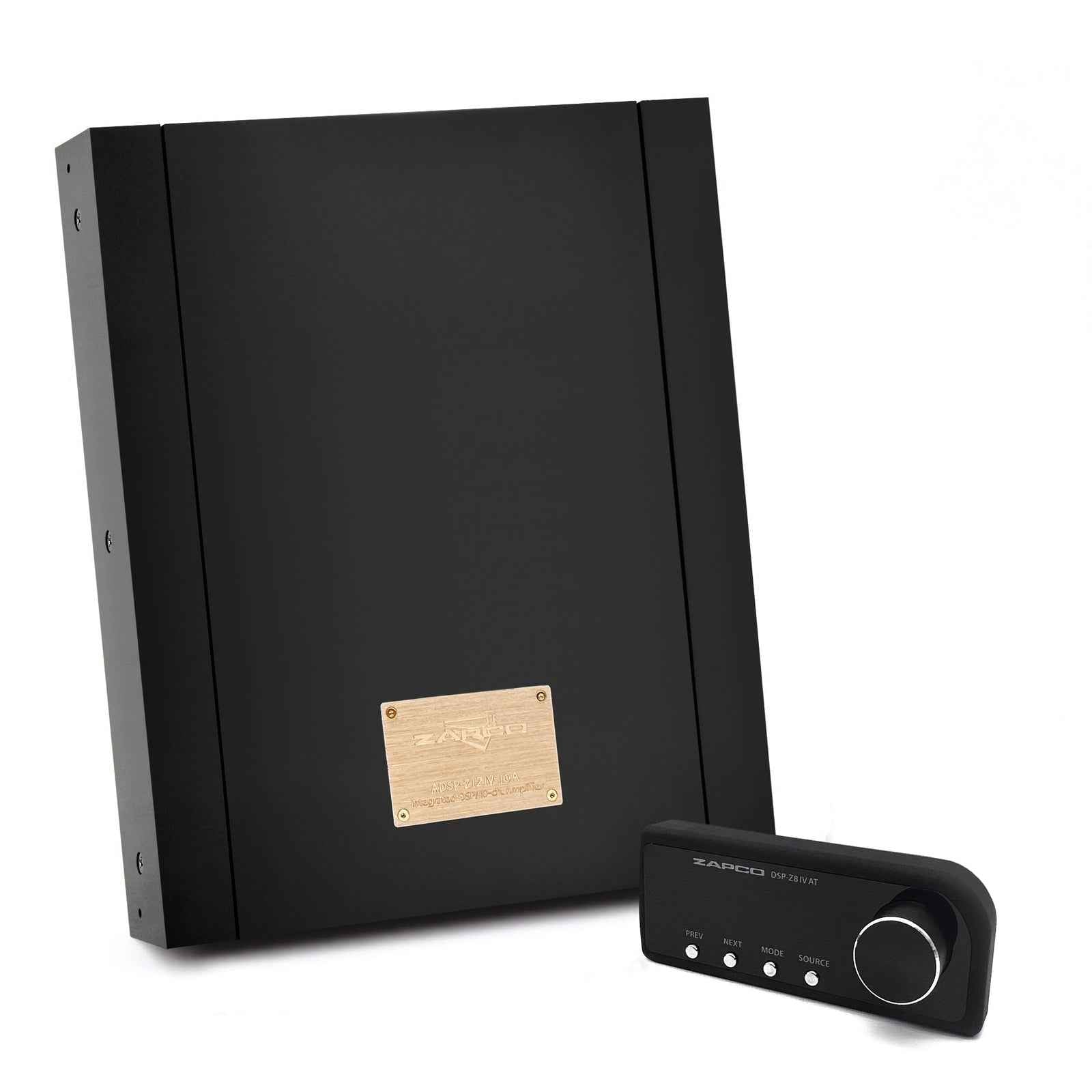

Zapco ADSP-Z12IV-10A 12 Channel DSP with 10 Channel Amplifier
✓ Garage Audio Approved
✓ Australian Warranty
✓ Expert Support
$2,199.00
● In stock
Professionally Installed by Garage Audio
Ask our Morayfield team about fitment, installation parts and labour pricing.
Availability: Please contact Garage Audio to confirm current stock and collection timing. Online stock quantities are not a live supplier-stock confirmation.
Elevate your car audio experience with the ZAPCO 12 Channel DSP with 10 Channel Amplifier. Designed for audio enthusiasts, it delivers exceptional sound precision and clarity. This product, from the renowned brand Zapco, is the perfect choice for those seeking superior audio performance in their vehicles.
This DSP amplifier offers 12 channels of digital signal processing. It allows for intricate tuning of each speaker in your car, ensuring an immersive audio experience. Additionally, the 10-channel amplification provides robust power, ensuring your sound remains pure and powerful even at high volumes.
The ZAPCO 12 Channel DSP with 10 Channel Amplifier is a versatile component ideal for any car audio setup. It integrates seamlessly with existing systems, making it a favorite among car audio aficionados. You’ll appreciate the easy-to-follow interface, allowing you to explore its advanced functions without hassle.
At Garage Audio, we specialize in car stereos and audio upgrades. The ZAPCO 12 Channel DSP with 10 Channel Amplifier exemplifies our commitment to offering top-tier products to enhance your driving experience. Whether you're installing new speakers or upgrading your current setup, this DSP amplifier provides the perfect foundation.
With this ZAPCO 12 Channel DSP with 10 Channel Amplifier, you’re investing in durability and high performance. The solid construction ensures long-lasting reliability. Discover the difference it can make in your car’s audio system, and enjoy crystal-clear sound like never before. Step up your audio game with this essential component from Zapco.
Specifications
Features and Functions
- DSP Processor: Cirrus Logic CS47048
- Power: 150 MHz/32 bit/192 KHz
- 12-Channels
- ADC: Cirrus Logic CS47048 32 bit/192 KHz
- ADC Dynamic Range/THD: 108 dB/-98 dB
- DAC: Cirrus Logic CS47048 32 bit/192 KHz
- DAC Dynamic Range/THD: 140 dB/-120 dB
- Low level (Pre)/Sensitivity: 1-5 VRMS
- High Level (Spk In)/Sens.: 2-20 V
- Optical Digital IN: 24 bit-192 KHz
- Coaxial Digital IN: 24 bit-192 KHz
- Frequency Response (-3dB): 10 Hz - 22.5 KHz
- S/N Input: 110 dBA (D) - 106 dBA (A)
- S/N Ratio Amp + DSP at max. power: 95 dBA
- THD+N Input: 0,002% (D) - 0,005% (A)
- THD+N Amplif. + DSP Analog Input: 0,07 %
- Crosstalk at 1 Khz only DSP: 90 dB
- Crosstalk Amplifier + DSP: 45 dB
- Amp Power @ 4Ω: 10 x 80 watts
- Amp Power @ 2Ω: 10 x 120 watts
- Amp Power @ 4Ω Bridged: 5 x 240 watts
- F/R EQ: 1-6 ch Gr. & Par./31 poles
- Effect EQ: 7-8 ch Gr. & Par./11 poles
- Mute/Solo: Yes, each channel
- Time Align. (Range/Steps): 0/15 ms / 0.02 ms
- Max Delay (Cm/Steps): 515 cm / 0.68 cm
- Polarity: 0/180°
- Remote Control included
- HD-BT Streaming (with optional HD-BT II-D)
- PC/Display Connection: USB/6-pin Mini DIN
- Dimensions (mm): 213(W) x 291(L) x 50(H)
