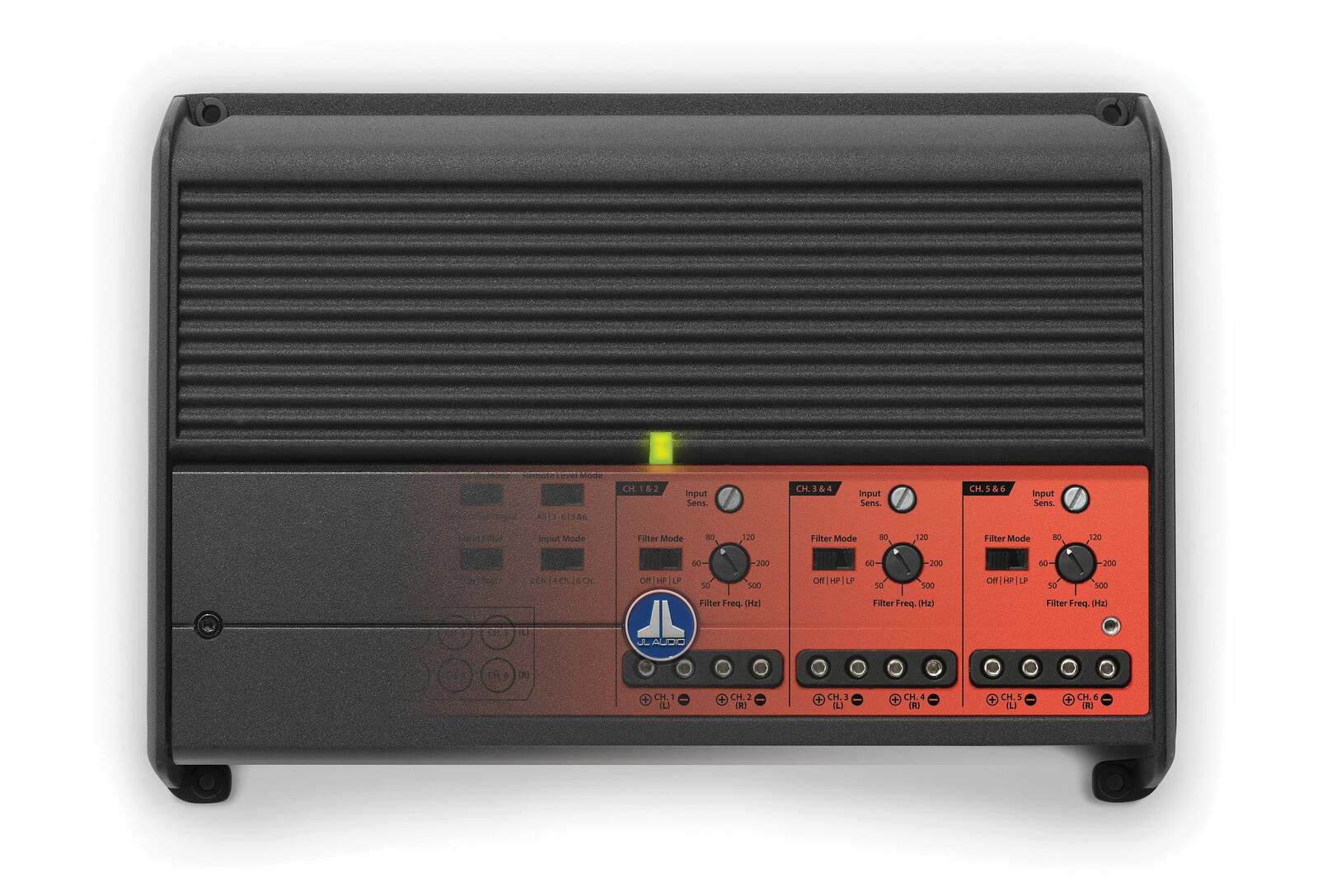

Enhance your marine audio experience with the JL Audio XDM6006 6 channel marine amplifier 24V. This powerhouse offers robust performance on your boat. It's crafted for optimal sound quality and long-lasting durability. At Garage Audio, we bring you top-notch marine audio solutions.

This JL Audio XDM6006 6 channel marine amplifier 24V is designed especially for marine use. It features corrosion-resistant materials and waterproof technology. Enjoy seamless audio even when out at sea. It provides crystal-clear sound without compromising on power.

The JL Audio XDM6006 6 channel marine amplifier 24V boasts six channels. This allows for versatile configurations. You can connect multiple speakers. Create a comprehensive audio setup that immerses you in superior sound.

Installation is straightforward, even on expansive decks. The amplifier's compact design fits easily in various locations. It's built for those who seek uncompromised audio performance on their marine vessels.

At Garage Audio, quality audio is our mission. The JL Audio XDM6006 6 channel marine amplifier 24V is a part of our comprehensive audio upgrade offerings. Elevate your marine sound system with this exceptional amplifier.

Whether you're out fishing, sailing, or simply enjoying the water, this amplifier ensures you're accompanied by the finest sound quality. Choose JL Audio XDM6006 6 channel marine amplifier 24V for a superior marine audio solution.

Channels Monoblock/2/3/4/5/6/8
Physical dimensions (Height) 2.05" (52 mm)
Physical dimensions (Width) Monoblock (300 W)/2-Channel: 6.85" (174 mm)
Monoblock (600 W)/3/4-Channel: 8.52" (216 mm)
5 (700 W)/ 6-Channel: 10.23" (260 mm)
Monoblock (1000 W)/5 (1000 W)/8-Channel: 14.73" (374 mm)
Physical dimensions (Depth) 7.09" (180 mm)
Weight
Monoblock (300 W): 3.8 lbs (1.72 kg)
Monoblock (600 W): 6.3 lbs (2.86 kg)
2-Channel: 3.75 lbs (1.7 kg)
3/4-Channel: 4.8 lbs (2.18 kg)
5-Channel (700 W): 6.15 lbs (2.79 kg)
6-Channel: 5.8 lbs (2.63 kg)

Warranty 3 years
Operating voltage 11-14.5 VDC (12 V Models)
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)
Monoblock (300 W): 200 W x 1
Monoblock (600 W): 400 W x 1
Monoblock (1000 W): 600 W x 1
2-Channel: 75 W RMS x 2/200 W x 1 (Bridged)
3-Channel: Main: 75 W x 2/Sub: 180 W x 1
4-Channel: 75 W RMS x 4/200 W x 2 (Bridged)
5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1
6-Channel: 75 W x 6/200 W x 3 (Bridged)
8-Channel: 75 W x 8/200 W x 4 (Bridged)

Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
Monoblock (300 W): 300 W x 1
Monoblock (600 W): 600 W x 1
Monoblock (1000 W): 1000 W x 1
2-Channel: 100 W RMS x 2
3-Channel: Main: 100 W x 2/Sub: 300 W x 1
4-Channel: 100 W RMS x 4
5-Channel (700 W): Main: 100 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1
6-Channel: 100 W x 6
8-Channel: 100 W x 8

Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)
Monoblock (300 W): 160 W x 1
Monoblock (600 W): 300 W x 1
Monoblock (1000 W): 500 W x 1
2-Channel: 60 W x 2/180 W x 1 (Bridged)
3-Channel: Main: 60 W x 2/Sub: 180 W x 1
4-Channel: 60 W x 4/180 W x 2 (Bridged)
5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1
6-Channel: 60 W x 6/180 W x 3 (Bridged)
8-Channel: 60 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)
Monoblock (300 W): 270 W x 1
Monoblock (600 W): 500 W x 1
Monoblock (1000 W): 800 W x 1
2-Channel: 90 W x 2
3-Channel: Main: 90 W x 2/Sub: 300 W x 1
4-Channel: 90 W x 4
5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1
6-Channel: 90 W x 6
8-Channel: 90 W x 8

Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD)
6-Channel (24 V): 75 W x 6/200 W x 3 (Bridged)
8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD)
6-Channel (24 V): 100 W x 6
8-Channel (24 V): 100 W x 8

Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD)
6-Channel (24 V): 60 W x 6/180 W x 3 (Bridged)
8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD)
6-Channel (24 V): 90 W x 6
8-Channel (24 V): 100 W x 8

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 100 dB
Monoblock (600 W): > 87 dB
Monoblock (1000 W): > 83 dB
2/4/6-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3/5-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3/5-Channel: > 103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 80 dB
Monoblock (600 W): > 67 dB
Monoblock (1000 W): > 53 dB
2/4/6-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3/5-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3/5-Channel: > 83 dB
Damping factor @ 4 Ω Monoblock (300 W): > 120/50 Hz
Monoblock (600 W): > 1000/50 Hz
Monoblock (1000 W): > 1000/50 Hz
2/4/5/6-Channel: > 150/50 Hz
3-Channel: > 120/50 Hz
Damping factor @ 2 Ω Monoblock (300 W): > 60/50 Hz
Monoblock (600 W): > 500/50 Hz
Monoblock (1000 W): > 500/50 Hz
2/4/5/6-Channel: > 75/50 Hz
3-Channel: > 60/50 Hz
THD+N @ Rated Power Monoblock (300 W/600 W)/2/4/6-Channel: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Main Channels 3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel 3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
Frequency response (+0, -1dB) Monoblock (300 W): 10 Hz-1 kHz
Monoblock (600 W/1000 W): 7 Hz-500 Hz
2/4/6-Channel: 12 Hz-22 kHz
Frequency response (+0, -1dB): Main Channels 3/5-Channel (700 W/1000 W): 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel 3/5-Channel (700 W/1000 W): 10 Hz-1 kHz
Input voltage range @ RCA inputs Monoblock (300 W/600 W/1000 W)/2/3/4-Channel: 200 mV - 4 V RMS
Fuse rating Monoblock (300 W): 30 A
Monoblock (600 W): 50 A
2-Channel: 20 A
3-Channel: 50 A
4-Channel: 40 A
5-Channel (700 W): 60 A
6-Channel: 50 A
6-Channel (24 V): 30 A
8-Channel (24 V): 40 A
Monoblock (1000 W)/5 (1000 W)/8-Channel: 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 2/6 -Channel (24 V): 8 AWG wire
Monoblock (300 W/600 W/1000 W)/3/4/5/6/8-Channel (24V): 4 AWG wire
Signal Processing
Filter mode(s): Channels 1 & 2 Monoblock (300 W/600 W/1000 W): Off or Low-Pass only
2/4/6-Channel: Off, Low-Pass or High-Pass
3/5-Channel (700 W/1000 W): Off or High-Pass only
Filter Slope(s): Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 12/24 dB/octave
2/3/4/5 (700 W/1000 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 50 Hz-500 Hz
2/3/4/6-Channel: 50 Hz-500 Hz
5-Channel (700 W/1000W): 50 Hz-5 kHz
Filter mode(s): Channels 3 & 4 4/6-Channel: Off, Low-Pass or High-Pass
5-Channel (700 W/1000 W): Off, High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 4/5 (700 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 3 & 4 4/5 (700 W)/6-Channel: 50 Hz-500 Hz
Filter mode(s): Channels 5 & 6 6-Channel: Off, Low-Pass or High-Pass
Filter Slope(s): Channels 5 & 6 6-Channel: 12 dB/octave
Filter frequency range: Channels 5 & 6 6-Channel: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel 3/5-Channel (700 W/1000 W): Off or Low-Pass only
Filter slope(s): Subwoofer Channel 3/5-Channel (700 W/1000 W): 12/24 dB/octave
Filter frequency range: Subwoofer Channel 3/5-Channel (700 W/1000 W): 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Infrasonic filter: Subwoofer Channel Monoblock (600 W): 30 Hz, defeatable
Remote level control Optional HD-RLC or MHD-RLC (water-resistant)
Remote level modes 3/5-Channel (700 W/1000 W): All Channels or Sub Channels
Channel input mode switch 3/4-Channel: yes (2/4 Channels)
5-Channel (700 W/1000 W): yes (2/4/6 Channels)
Pass-through preamp output Monoblock (300 W/600 W)/2/3/4-Channel: Buffered
Source channel selection for PreOuts 3/5-Channel (700 W/1000 W): yes (1&2/Sum/Sub)
4-Channel: yes (1&2/Sum)
