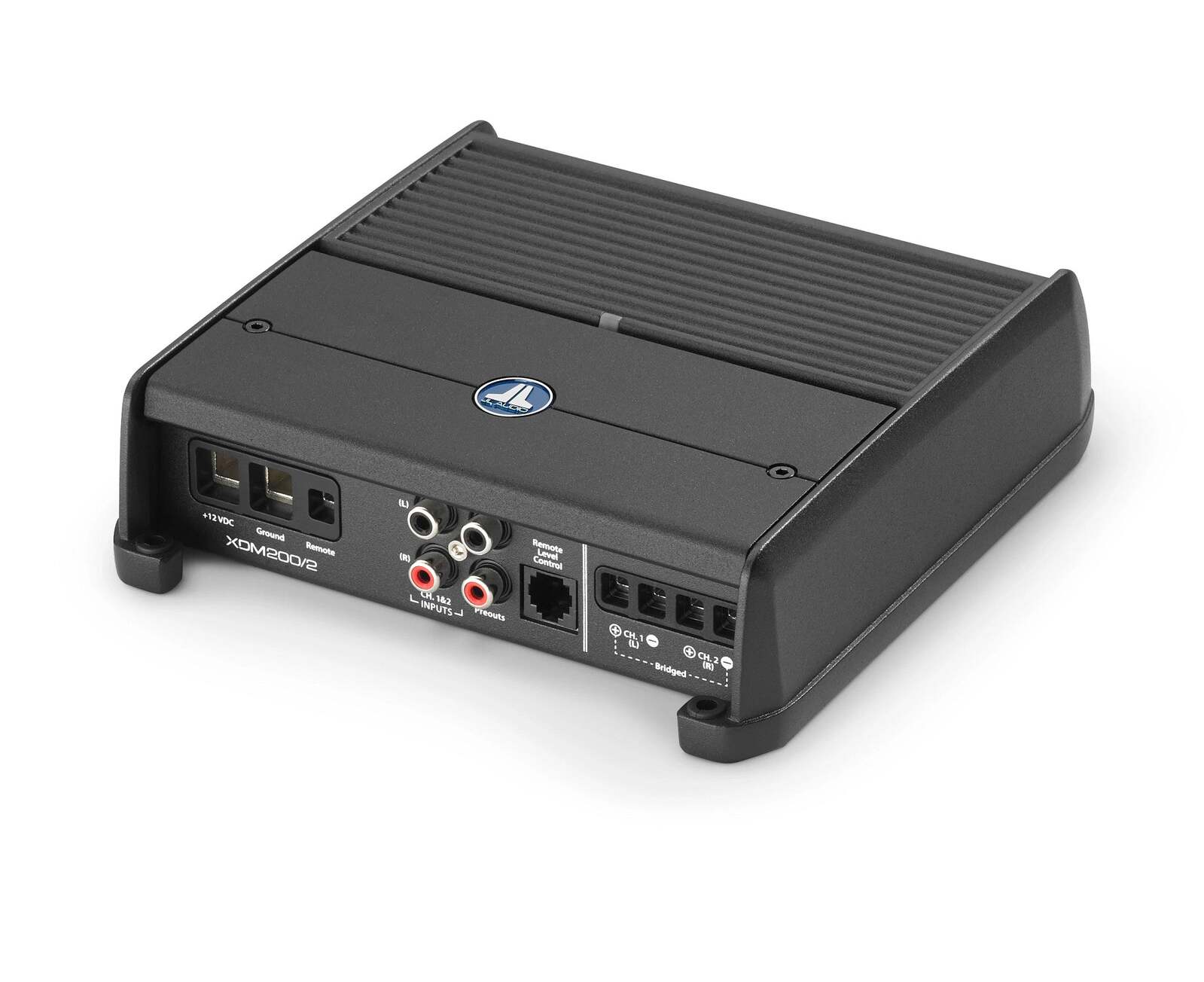

JL audio XDM2002 2 channel Marine amplifier

JL audio XDM2002 2 channel Marine amplifier

Regular price $749.00 AUD
Regular price Sale price $749.00 AUD
Sale Sold out

 More payment options

Couldn't load pickup availability

Discover unparalleled audio performance with the JL audio XDM2002 2 channel Marine amplifier. Designed for marine enthusiasts, this amplifier ensures your music reaches new heights even on open water. Whether you're cruising or anchored, the sound clarity is exceptional.

The JL audio XDM2002 2 channel Marine amplifier offers robust power output. With its advanced circuitry, it delivers efficient power while minimizing distortion. This ensures a crisp and dynamic audio experience suitable for all marine conditions.

Engineered for durability, this amplifier withstands harsh marine environments. Its corrosion-resistant materials and weatherproof design make it ideal for use on boats and yachts. Enjoy peace of mind knowing your sound system is protected and reliable.

Installation is seamless with the JL audio XDM2002 2 channel Marine amplifier. Its compact design allows for easy placement in tight spaces. It integrates smoothly with existing audio systems, offering versatility and convenience.

At Garage Audio, we provide high-quality car and marine audio solutions. Our products, including the JL audio XDM2002 2 channel Marine amplifier, are selected for their performance and reliability. Upgrade your sound system today and experience audio like never before.

Channels Monoblock/2/3/4/5/6/8
Physical dimensions (Height) 2.05" (52 mm)
Physical dimensions (Width) Monoblock (300 W)/2-Channel: 6.85" (174 mm)
Monoblock (600 W)/3/4-Channel: 8.52" (216 mm)
5 (700 W)/ 6-Channel: 10.23" (260 mm)
Monoblock (1000 W)/5 (1000 W)/8-Channel: 14.73" (374 mm)
Physical dimensions (Depth) 7.09" (180 mm)
Weight
Monoblock (300 W): 3.8 lbs (1.72 kg)
Monoblock (600 W): 6.3 lbs (2.86 kg)
2-Channel: 3.75 lbs (1.7 kg)
3/4-Channel: 4.8 lbs (2.18 kg)
5-Channel (700 W): 6.15 lbs (2.79 kg)
6-Channel: 5.8 lbs (2.63 kg)

Warranty 3 years
Operating voltage 11-14.5 VDC (12 V Models)
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)
Monoblock (300 W): 200 W x 1
Monoblock (600 W): 400 W x 1
Monoblock (1000 W): 600 W x 1
2-Channel: 75 W RMS x 2/200 W x 1 (Bridged)
3-Channel: Main: 75 W x 2/Sub: 180 W x 1
4-Channel: 75 W RMS x 4/200 W x 2 (Bridged)
5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1
6-Channel: 75 W x 6/200 W x 3 (Bridged)
8-Channel: 75 W x 8/200 W x 4 (Bridged)

Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
Monoblock (300 W): 300 W x 1
Monoblock (600 W): 600 W x 1
Monoblock (1000 W): 1000 W x 1
2-Channel: 100 W RMS x 2
3-Channel: Main: 100 W x 2/Sub: 300 W x 1
4-Channel: 100 W RMS x 4
5-Channel (700 W): Main: 100 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1
6-Channel: 100 W x 6
8-Channel: 100 W x 8

Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)
Monoblock (300 W): 160 W x 1
Monoblock (600 W): 300 W x 1
Monoblock (1000 W): 500 W x 1
2-Channel: 60 W x 2/180 W x 1 (Bridged)
3-Channel: Main: 60 W x 2/Sub: 180 W x 1
4-Channel: 60 W x 4/180 W x 2 (Bridged)
5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1
6-Channel: 60 W x 6/180 W x 3 (Bridged)
8-Channel: 60 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)
Monoblock (300 W): 270 W x 1
Monoblock (600 W): 500 W x 1
Monoblock (1000 W): 800 W x 1
2-Channel: 90 W x 2
3-Channel: Main: 90 W x 2/Sub: 300 W x 1
4-Channel: 90 W x 4
5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1
6-Channel: 90 W x 6
8-Channel: 90 W x 8

Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD)
6-Channel (24 V): 75 W x 6/200 W x 3 (Bridged)
8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD)
6-Channel (24 V): 100 W x 6
8-Channel (24 V): 100 W x 8

Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD)
6-Channel (24 V): 60 W x 6/180 W x 3 (Bridged)
8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD)
6-Channel (24 V): 90 W x 6
8-Channel (24 V): 100 W x 8

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 100 dB
Monoblock (600 W): > 87 dB
Monoblock (1000 W): > 83 dB
2/4/6-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3/5-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3/5-Channel: > 103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 80 dB
Monoblock (600 W): > 67 dB
Monoblock (1000 W): > 53 dB
2/4/6-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3/5-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3/5-Channel: > 83 dB
Damping factor @ 4 Ω Monoblock (300 W): > 120/50 Hz
Monoblock (600 W): > 1000/50 Hz
Monoblock (1000 W): > 1000/50 Hz
2/4/5/6-Channel: > 150/50 Hz
3-Channel: > 120/50 Hz
Damping factor @ 2 Ω Monoblock (300 W): > 60/50 Hz
Monoblock (600 W): > 500/50 Hz
Monoblock (1000 W): > 500/50 Hz
2/4/5/6-Channel: > 75/50 Hz
3-Channel: > 60/50 Hz
THD+N @ Rated Power Monoblock (300 W/600 W)/2/4/6-Channel: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Main Channels 3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel 3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
Frequency response (+0, -1dB) Monoblock (300 W): 10 Hz-1 kHz
Monoblock (600 W/1000 W): 7 Hz-500 Hz
2/4/6-Channel: 12 Hz-22 kHz
Frequency response (+0, -1dB): Main Channels 3/5-Channel (700 W/1000 W): 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel 3/5-Channel (700 W/1000 W): 10 Hz-1 kHz
Input voltage range @ RCA inputs Monoblock (300 W/600 W/1000 W)/2/3/4-Channel: 200 mV - 4 V RMS
Fuse rating Monoblock (300 W): 30 A
Monoblock (600 W): 50 A
2-Channel: 20 A
3-Channel: 50 A
4-Channel: 40 A
5-Channel (700 W): 60 A
6-Channel: 50 A
6-Channel (24 V): 30 A
8-Channel (24 V): 40 A
Monoblock (1000 W)/5 (1000 W)/8-Channel: 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 2/6 -Channel (24 V): 8 AWG wire
Monoblock (300 W/600 W/1000 W)/3/4/5/6/8-Channel (24V): 4 AWG wire
Signal Processing
Filter mode(s): Channels 1 & 2 Monoblock (300 W/600 W/1000 W): Off or Low-Pass only
2/4/6-Channel: Off, Low-Pass or High-Pass
3/5-Channel (700 W/1000 W): Off or High-Pass only
Filter Slope(s): Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 12/24 dB/octave
2/3/4/5 (700 W/1000 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 50 Hz-500 Hz
2/3/4/6-Channel: 50 Hz-500 Hz
5-Channel (700 W/1000W): 50 Hz-5 kHz
Filter mode(s): Channels 3 & 4 4/6-Channel: Off, Low-Pass or High-Pass
5-Channel (700 W/1000 W): Off, High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 4/5 (700 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 3 & 4 4/5 (700 W)/6-Channel: 50 Hz-500 Hz
Filter mode(s): Channels 5 & 6 6-Channel: Off, Low-Pass or High-Pass
Filter Slope(s): Channels 5 & 6 6-Channel: 12 dB/octave
Filter frequency range: Channels 5 & 6 6-Channel: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel 3/5-Channel (700 W/1000 W): Off or Low-Pass only
Filter slope(s): Subwoofer Channel 3/5-Channel (700 W/1000 W): 12/24 dB/octave
Filter frequency range: Subwoofer Channel 3/5-Channel (700 W/1000 W): 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Infrasonic filter: Subwoofer Channel Monoblock (600 W): 30 Hz, defeatable
Remote level control Optional HD-RLC or MHD-RLC (water-resistant)
Remote level modes 3/5-Channel (700 W/1000 W): All Channels or Sub Channels
Channel input mode switch 3/4-Channel: yes (2/4 Channels)
5-Channel (700 W/1000 W): yes (2/4/6 Channels)
Pass-through preamp output Monoblock (300 W/600 W)/2/3/4-Channel: Buffered
Source channel selection for PreOuts 3/5-Channel (700 W/1000 W): yes (1&2/Sum/Sub)
4-Channel: yes (1&2/Sum)
