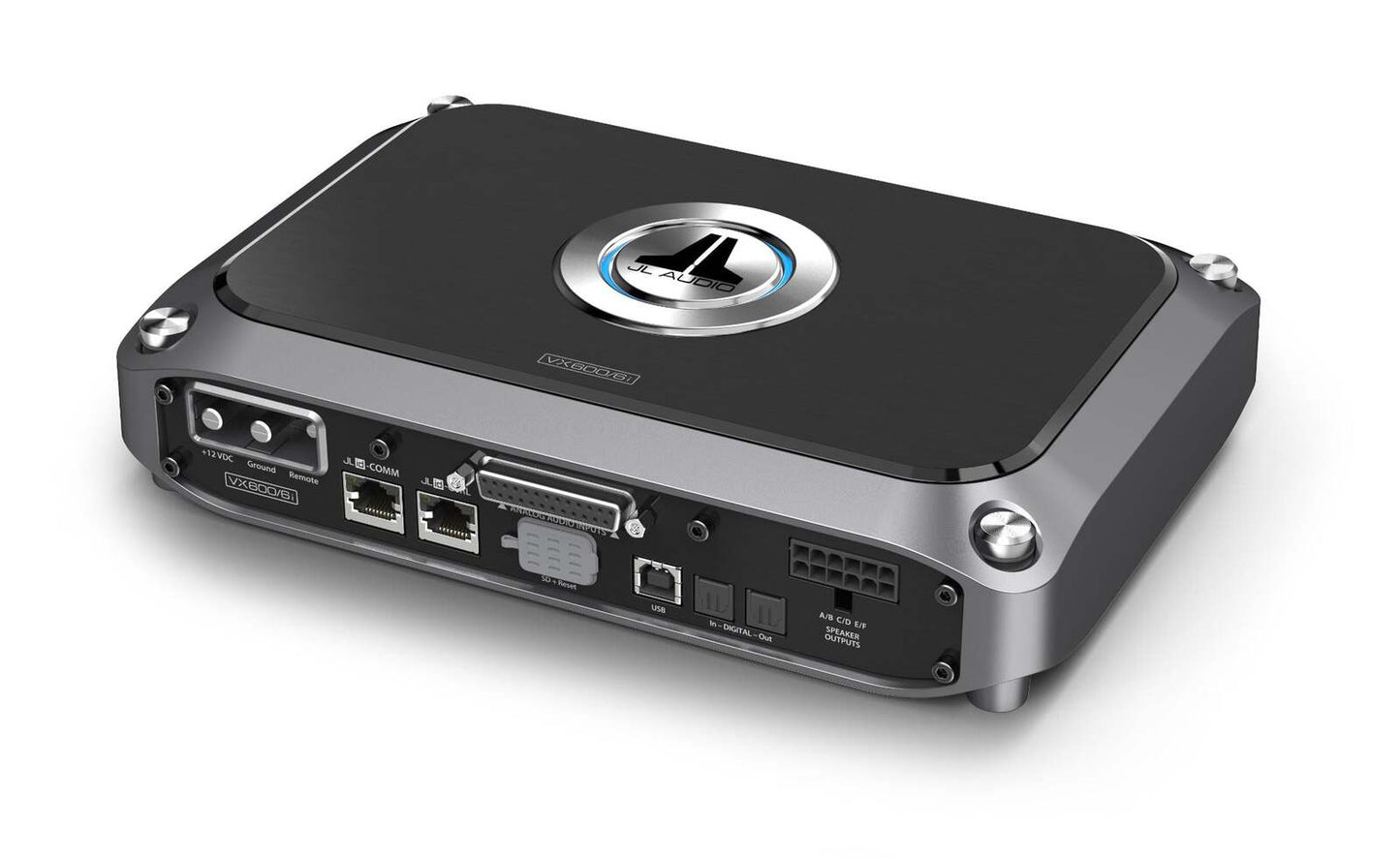

Discover the ultimate sound experience with the JL Audio VX6006i 6 Channel Amplifier with DSP from Garage Audio. This class D full-range amplifier delivers an impressive 600W, ensuring powerful and clear audio quality for every journey.

Enhance your car audio system with this top-notch DSP amplifier. The integrated DSP technology offers precise audio tuning, allowing you to customize sound settings to your preference. With six channels, the JL Audio VX6006i 6 Channel Amplifier with DSP can manage various audio setups, providing flexibility and superior performance.

Ideal for audiophiles, this amplifier offers exceptional sound clarity. The full-range capability ensures that all frequencies are reproduced with precision. This makes the JL Audio VX6006i 6 Channel Amplifier with DSP a perfect choice for creating a dynamic audio experience in your vehicle.

At Garage Audio, we understand the importance of reliable and high-performance equipment. The JL Audio VX6006i 6 Channel Amplifier with DSP is designed for durability and efficiency, ensuring it meets the demands of different sound systems. Its compact and sleek design allows for an easy fit in most car setups.

Upgrade your car sound system today with the JL Audio VX6006i 6 Channel Amplifier with DSP. Transform your drive with its superior sound quality and reliability. It's not just an amplifier; it's a journey into the realm of premium audio excellence. Shop now at Garage Audio and experience the difference.

Channels 2/4/6/8
Physical dimensions (Height) 2.12" (54 mm)
Physical dimensions (Width) 4-Channel: 9.02" (229 mm)
2/6-Channel: 9.81" (250 mm)
8-Channel: 11.32" (287 mm)
Physical dimensions (Depth) 6.62" (168 mm)
Weight
2-Channel: 5.4 lbs (2.45 kg)

4-Channel: 5.0 lbs (2.27 kg)
6-Channel: 5.55 lbs (2.5 kg)
8-Channel: 6.5 lbs (2.95 kg)

Warranty 2 years
Operating voltage 11-14.5 VDC
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) 2-Channel: 180 W x 2/600 W x 1 (Bridged)
4-Channel: 75 W x 4/200 W x 2 (Bridged)
6-Channel: 75 W x 6/200 W x 3 (Bridged)
8-Channel: 75 W x 8/200 W x 4 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
2-Channel: 300 W x 2

4-Channel: 100 W x 4
6-Channel: 100 W x 6
8-Channel: 100 W x 8

Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) 2-Channel: 140 W x 2/450 W x 1 (Bridged)
4-Channel: 60 W x 4/180 W x 2 (Bridged)
6-Channel: 60 W x 6/180 W x 3 (Bridged)
8-Channel: 60 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) 2-Channel: 225 W x 2
4-Channel: 90 W x 4
6-Channel: 90 W x 6
8-Channel: 90 W x 8
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs 99 dB
Signal-to-Noise Ratio, referred to highest rated power: Digital Inputs 2-Channel: 100 dB
4/8-Channel: 101 dB
6-Channel: 99 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs 2-Channel: 76 dB
4/6/8-Channel: 80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Digital Inputs 2-Channel: 78 dB
4-Channel: 81 dB
6-Channel: 80 dB
8-Channel: 82 dB
Damping factor @ 4 Ω >100/50 Hz
Damping factor @ 2 Ω >50/50 Hz
THD+N @ Rated Power <1% @ 2 Ω
Frequency response (+0, -1dB) 12 Hz-21 kHz
Input voltage range @ RCA inputs 200 mV-16 V RMS
Fuse rating 2/6-Channel: 50 A
4-Channel: 40 A
8-Channel: 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 4 AWG wire
