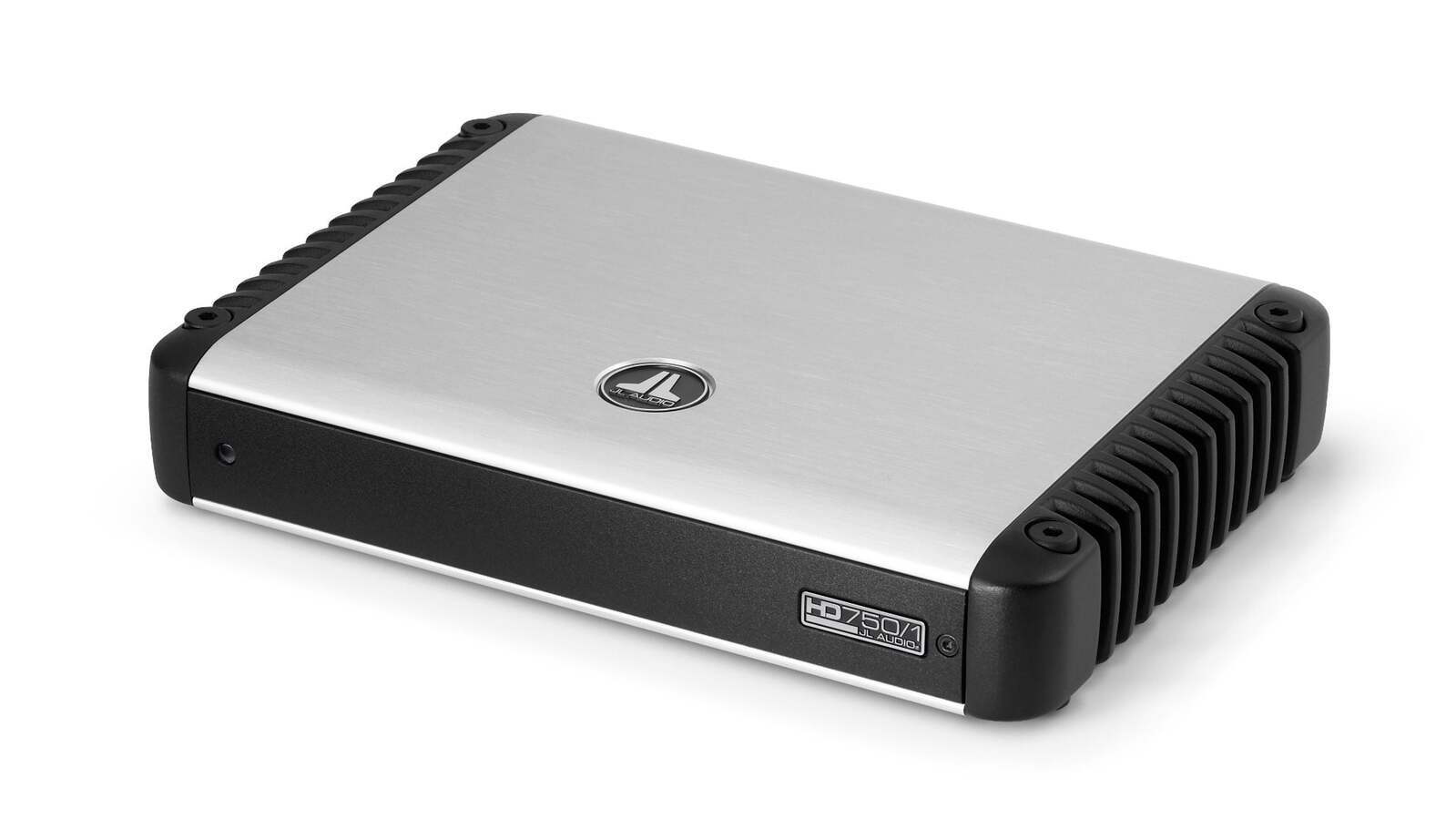

JL Audio HD7501 Monoblock Class D Amplifier for Cars
JL Audio HD7501 Monoblock Class D Amplifier for Cars
Couldn't load pickup availability
Description
Description
Elevate your vehicle's audio experience with the JL audio HD750/1 Monoblock Class D Amplifier. This powerhouse delivers a remarkable 750 watts, ensuring superior sound clarity at Garage Audio. Designed for car enthusiasts demanding performance, this amplifier stands out for its sleek design and cutting-edge technology.
With state-of-the-art Class D technology, the JL audio HD7501 Monoblock Class D Amplifier efficiently converts power, offering minimal distortion. This enhances your listening experience, making it crisp and clear. It is ideal for powering subwoofers, delivering tight bass that transforms any drive into a concert-like experience.
The compact design of this amplifier makes it a perfect fit for any vehicle setup. You'll appreciate the adjustable low-pass filter and the bass EQ feature. These allow for customizable audio settings to suit your preference. At Garage Audio, we pride ourselves on offering products that combine functionality with innovation.
Whether you're an audiophile or just seeking to improve your car's sound system, the JL audio HD7501 Monoblock Class D Amplifier offers unparalleled performance. Its robust build promises durability while maintaining efficiency and power. This amplifier is not just about sound; it's about a complete audio upgrade.
Installing the JL audio HD7501 Monoblock Class D Amplifier is straightforward, thanks to its user-friendly design. Maximizing power and efficiency, it makes for a worthy investment in your vehicle's audio capabilities. Experience professional-grade sound every time you hit the road.
Specifications
Specifications
Channels Monoblock
Physical dimensions (Height) 1.93" (49 mm)
Physical dimensions (Width) 10.74" (273 mm)
Physical dimensions (Depth) 7.85" (199 mm)
Weight
6.6 lbs (2.99 kg)
Warranty 2 years
Operating voltage 11-14.5 VDC
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) Monoblock (750 W): 750 W x 1
Monoblock (1200 W): 1200 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) Monoblock (750 W): 750 W x 1
Monoblock (1200 W): 1200 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) Monoblock (750 W): 750 W x 1
Monoblock (1200 W): 1200 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) Monoblock (750 W): 750 W x 1
Monoblock (1200 W): 1200 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs 111 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs 82.2 dB
Damping factor @ 4 Ω >500/50 Hz
Damping factor @ 2 Ω >250/50 Hz
THD+N @ Rated Power <0.03% @ 4 Ω
Frequency response (+0, -1dB) 6 Hz-8 kHz
Input voltage range @ RCA inputs Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Fuse rating Monoblock (750 W): 60 A
Monoblock (1200 W): 100 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 4 AWG wire
Signal Processing
Filter mode(s): Channels 1 & 2 Off, Low-pass or High-pass
Filter Slope(s): Channels 1 & 2 12/24 dB/octave
Filter frequency range: Channels 1 & 2 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Infrasonic filter: Subwoofer Channel 30 Hz, Defeatable
Remote level control Optional (HD-RLC)
Output polarity switch
Pass-through preamp output Buffered
