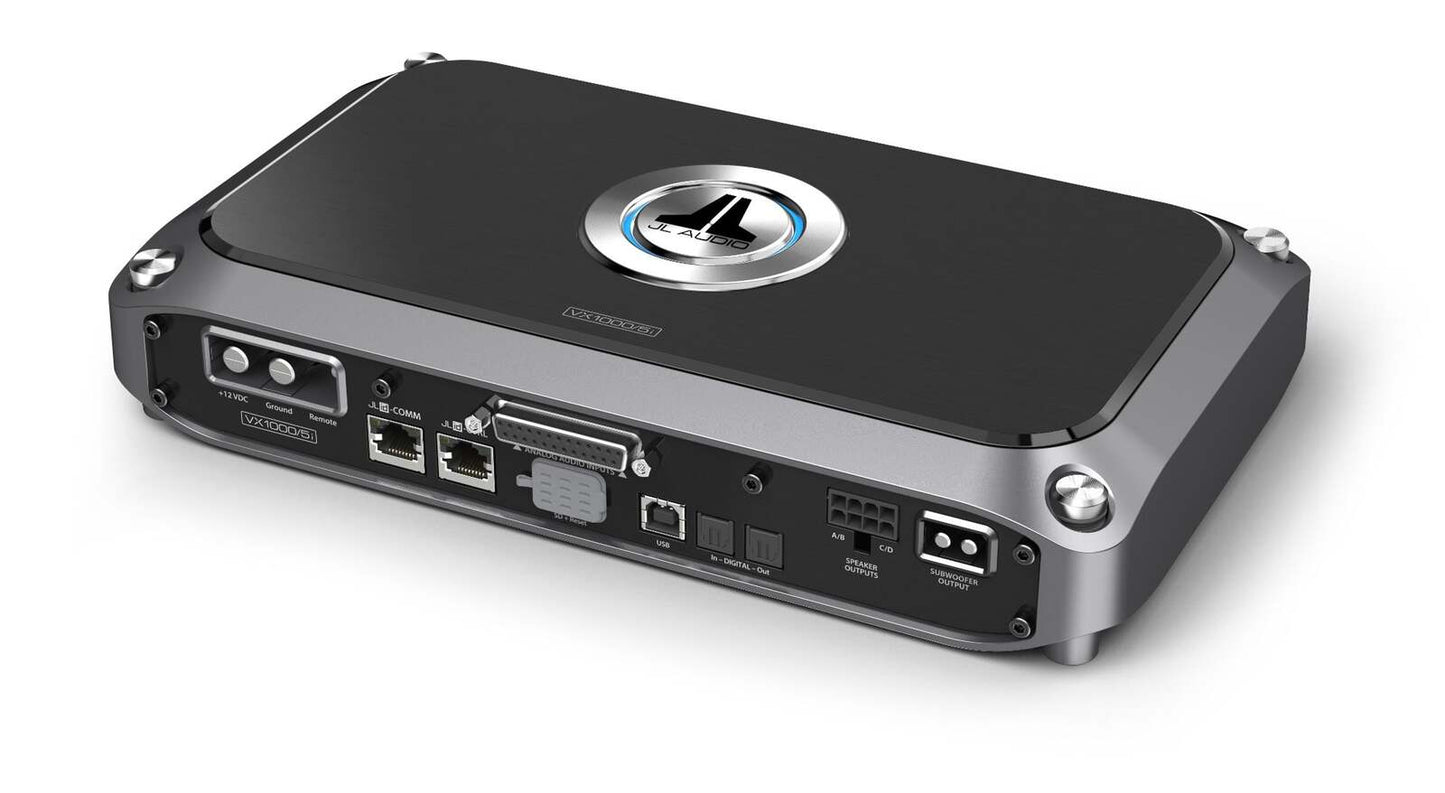

Enhance your car audio system with the JL Audio 5 Channel Class D Amplifier with DSP. This cutting-edge amplifier is a powerhouse, delivering an impressive 1000 watts of pure audio excellence. It masterfully elevates every sonic detail for an immersive listening experience.

Designed by JL Audio, this 5 channel Class D amplifier stands out with integrated DSP technology. The amplifier offers precise control over your audio settings, ensuring optimal sound quality. Whether you're streaming music or tuning radio, your listening experience becomes richly dynamic.

Take advantage of versatile channel options with this powerful system. It efficiently powers multiple speakers and a subwoofer, providing clear sound distribution. Enjoy balanced audio output in your vehicle, tailored to meet different acoustic preferences.

Housed in a sleek design, the amplifier complements any vehicle interior. Its compact form is ideal for easy installation without compromising on performance. The JL Audio 5 Channel Class D Amplifier with DSP is the perfect match for those who seek power and precision.

Garage Audio is your go-to store for high-quality car audio accessories like speakers, amplifiers, and more. Elevate your car audio system today with this innovative amplifier and experience unmatched audio precision.

Channels 5
Physical dimensions (Height) 2.12" (54 mm)
Physical dimensions (Width) 5-Channel (700 W): 9.81" (250 mm)
5-Channel (1000 W): 11.32" (287 mm)
Physical dimensions (Depth) 6.62" (168 mm)
Weight
5-Channel (700 W): 5.6 lbs (2.54 kg)

Warranty 2 years
Operating voltage 11-14.5 VDC
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) 5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) 5-Channel (700 W): Main: 100 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) 5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) 5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 99 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 99 dB
Signal-to-Noise Ratio, referred to highest rated power: Digital Inputs - Main Channels 101 dB
Signal-to-Noise Ratio, referred to highest rated power: Digital Inputs - Subwoofer Channel 102 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 80 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 72 dB
Signal-to-Noise Ratio, referred to 1 W: Digital Inputs - Main Channels 82 dB
productSpecSN1wDigitalInputsSubw 80 dB
Damping factor @ 4 Ω >150/50 Hz
Damping factor @ 2 Ω >50/50 Hz
THD+N @ Rated Power: Main Channels <1% @ 2 Ω
THD+N @ Rated Power: Subwoofer Channel <1% @ 2 Ω
Frequency response (+0, -1dB): Main Channels 12 Hz-21 kHz
Frequency response (+0, -1dB): Subwoofer Channel 12 Hz-1 kHz
Input voltage range @ RCA inputs 200 mV-16 V RMS
Fuse rating 5-Channel (700 W): 60 A
5-Channel (1000 W): 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 4 AWG wire
