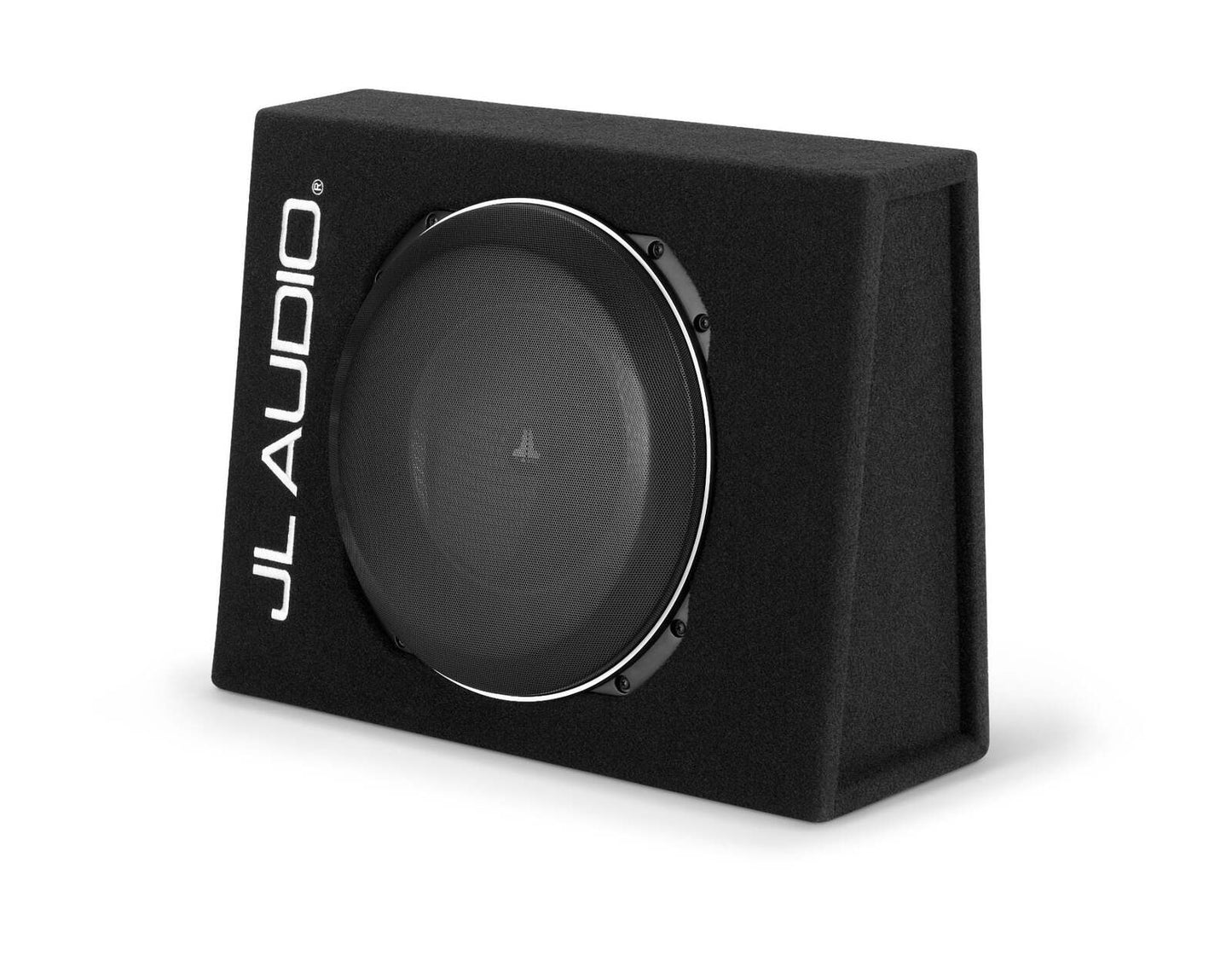

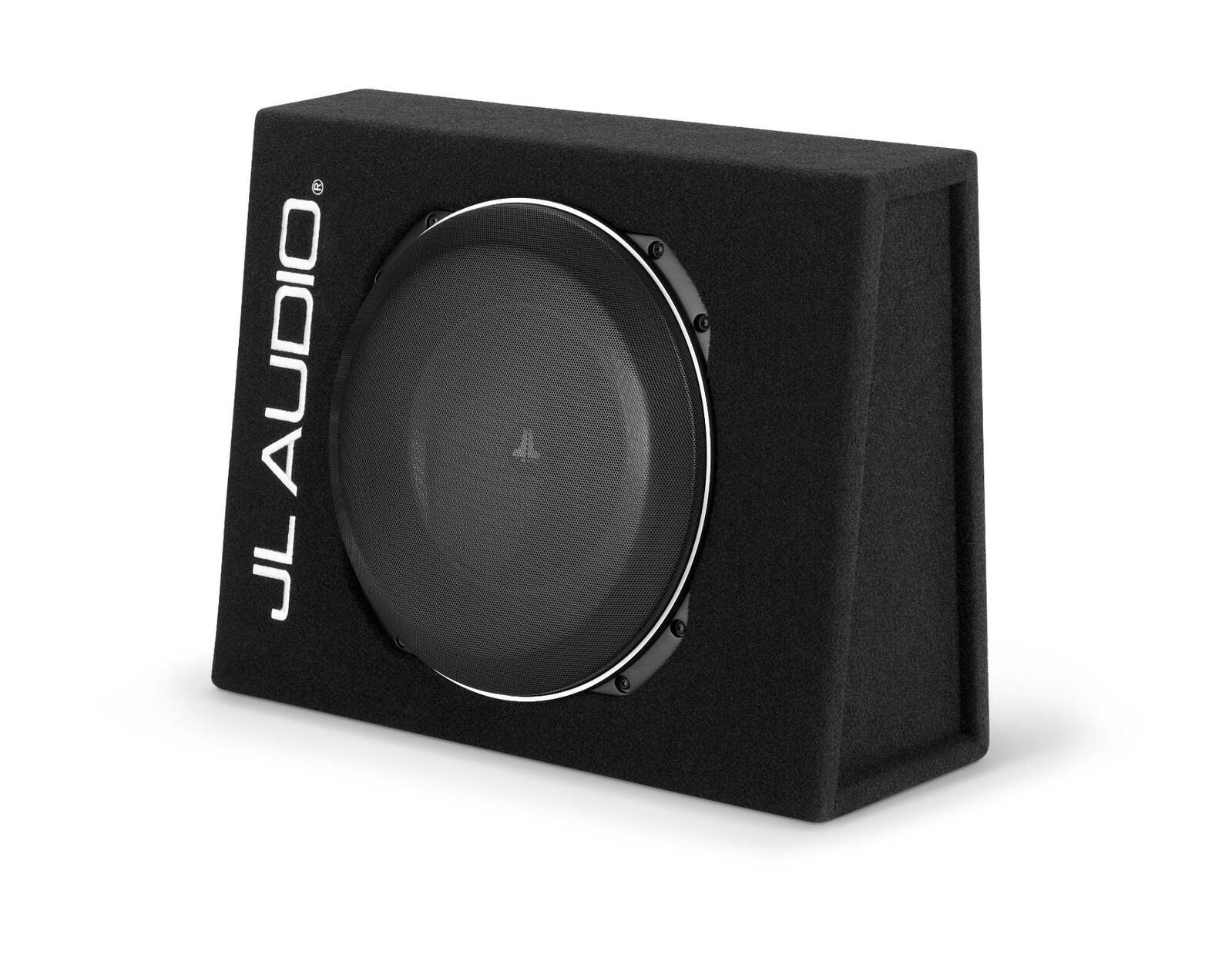

JL Audio 13TW5v2 Truck PowerWedge 12 Inch Slim Subwoofer
✓ Garage Audio Approved
✓ Australian Warranty
✓ Expert Support
$1,949.00
● Sold out
Professionally Installed by Garage Audio
Ask our Morayfield team about fitment, installation parts and labour pricing.
Availability: Please contact Garage Audio to confirm current stock and collection timing. Online stock quantities are not a live supplier-stock confirmation.
Discover the unmatched sound quality with the JL Audio 13TW5v2 Truck PowerWedge. Designed to fit seamlessly into your vehicle, this 12-inch slim subwoofer is perfect for any truck enthusiast. At Garage Audio, we specialize in delivering premium audio experiences, and this JL Audio marvel is no exception.
With its compact design, the JL Audio 13TW5v2 Truck PowerWedge fits snugly without sacrificing performance. This subwoofer packs a powerful punch, enhancing your music with deep, rich bass that transforms your driving experience. Whether you're cruising the streets or tackling rugged terrains, this subwoofer ensures your soundtrack is always on point.
The innovative engineering of the JL Audio 13TW5v2 Truck PowerWedge makes it an ideal choice for trucks with limited space. Its slim profile allows for flexible placement, while maintaining the robust sound quality that JL Audio is known for. Enjoy precise bass and crystal-clear audio without the bulk of traditional subwoofers.
Installation is convenient and hassle-free, making it accessible for both audio novices and seasoned installers. This subwoofer's durability ensures longevity, providing endless hours of superior sound. It's the perfect companion for long journeys or quick trips, always delivering stellar audio.
At Garage Audio, we understand the passion for high-quality sound. Our extensive selection of car stereos, speakers, amplifiers, and more, combined with the JL Audio 13TW5v2 Truck PowerWedge, elevates your audio system to a professional grade. Experience audio like never before and redefine your vehicle's entertainment system.
Enhance your ride today with the JL Audio 13TW5v2 Truck PowerWedge and enjoy the seamless blend of style, sound, and performance. Your vehicle deserves the best, and this subwoofer delivers in every aspect.
Specifications
Sizes 13.5"
Weight
20.5 lbs (9.3 kg)
Continuous power handling (RMS) 600 W
Sensitivity (SPL @ 1 W/1 m) 2 Ω: 85.51 dB
4 Ω: 85.63 dB
Nominal impedance 2 Ω
Recommended amplifier power (RMS) 250-600 W
Cone material Mineral-filled polypropylene
Warranty 2 years
Connections
Speaker connections Push-button terminal
Mounting Dimensions
Frame outer diameter Max: 14.2" (361mm)
Min: 13.0" (330 mm)
Mounting depth clearance 2.625" (67 mm)
Mounting hole 12.5" (318 mm)
Bolt hole circle 13.5" (343 mm)
Motor outer diameter 6.75" (171 mm)
Driver displacement 0.052 cu ft (1.47 L)
Parameters
Free Air Resonance (FS) 2 Ω: 25.95 Hz
4 Ω: 27.61 Hz
Electrical “Q” (Qes) 2 Ω: 0.51
4 Ω: 0.553
Mechanical “Q” (Qms) 2 Ω: 10.648
4 Ω: 10.692
Total “Q” (Qts) 2 Ω: 0.479
4 Ω: 0.526
Equivalent Compliance (Vas) 2 Ω: 2.26 cu ft (64 L)
4 Ω: 2.13 cu ft (60.31 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 0.433" (11 mm)
Reference Efficiency (NO) 0.23%
Effective piston area (SD) 98.26 in² (0.0634 m²)
DC resistance (RE) 2 Ω: 2.100 Ω
4 Ω: 3.513 Ω
Sealed Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 0.80 cu ft (22.66 L)
External width (W) 19" (483 mm)
External height (H) 15" (381 mm)
External depth (D) 7.75" (197 mm)
-3 dB cutoff frequency (F3) 2 Ω: 41.18 Hz
4 Ω: 41.42 Hz
System resonance (FC) 2 Ω: 50.75 Hz
4 Ω: 52.84 Hz
System Q at resonance (QTC) 2 Ω: 0.937
4 Ω: 1.007
Weight
20.5 lbs (9.3 kg)
Continuous power handling (RMS) 600 W
Sensitivity (SPL @ 1 W/1 m) 2 Ω: 85.51 dB
4 Ω: 85.63 dB
Nominal impedance 2 Ω
Recommended amplifier power (RMS) 250-600 W
Cone material Mineral-filled polypropylene
Warranty 2 years
Connections
Speaker connections Push-button terminal
Mounting Dimensions
Frame outer diameter Max: 14.2" (361mm)
Min: 13.0" (330 mm)
Mounting depth clearance 2.625" (67 mm)
Mounting hole 12.5" (318 mm)
Bolt hole circle 13.5" (343 mm)
Motor outer diameter 6.75" (171 mm)
Driver displacement 0.052 cu ft (1.47 L)
Parameters
Free Air Resonance (FS) 2 Ω: 25.95 Hz
4 Ω: 27.61 Hz
Electrical “Q” (Qes) 2 Ω: 0.51
4 Ω: 0.553
Mechanical “Q” (Qms) 2 Ω: 10.648
4 Ω: 10.692
Total “Q” (Qts) 2 Ω: 0.479
4 Ω: 0.526
Equivalent Compliance (Vas) 2 Ω: 2.26 cu ft (64 L)
4 Ω: 2.13 cu ft (60.31 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 0.433" (11 mm)
Reference Efficiency (NO) 0.23%
Effective piston area (SD) 98.26 in² (0.0634 m²)
DC resistance (RE) 2 Ω: 2.100 Ω
4 Ω: 3.513 Ω
Sealed Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 0.80 cu ft (22.66 L)
External width (W) 19" (483 mm)
External height (H) 15" (381 mm)
External depth (D) 7.75" (197 mm)
-3 dB cutoff frequency (F3) 2 Ω: 41.18 Hz
4 Ω: 41.42 Hz
System resonance (FC) 2 Ω: 50.75 Hz
4 Ω: 52.84 Hz
System Q at resonance (QTC) 2 Ω: 0.937
4 Ω: 1.007
