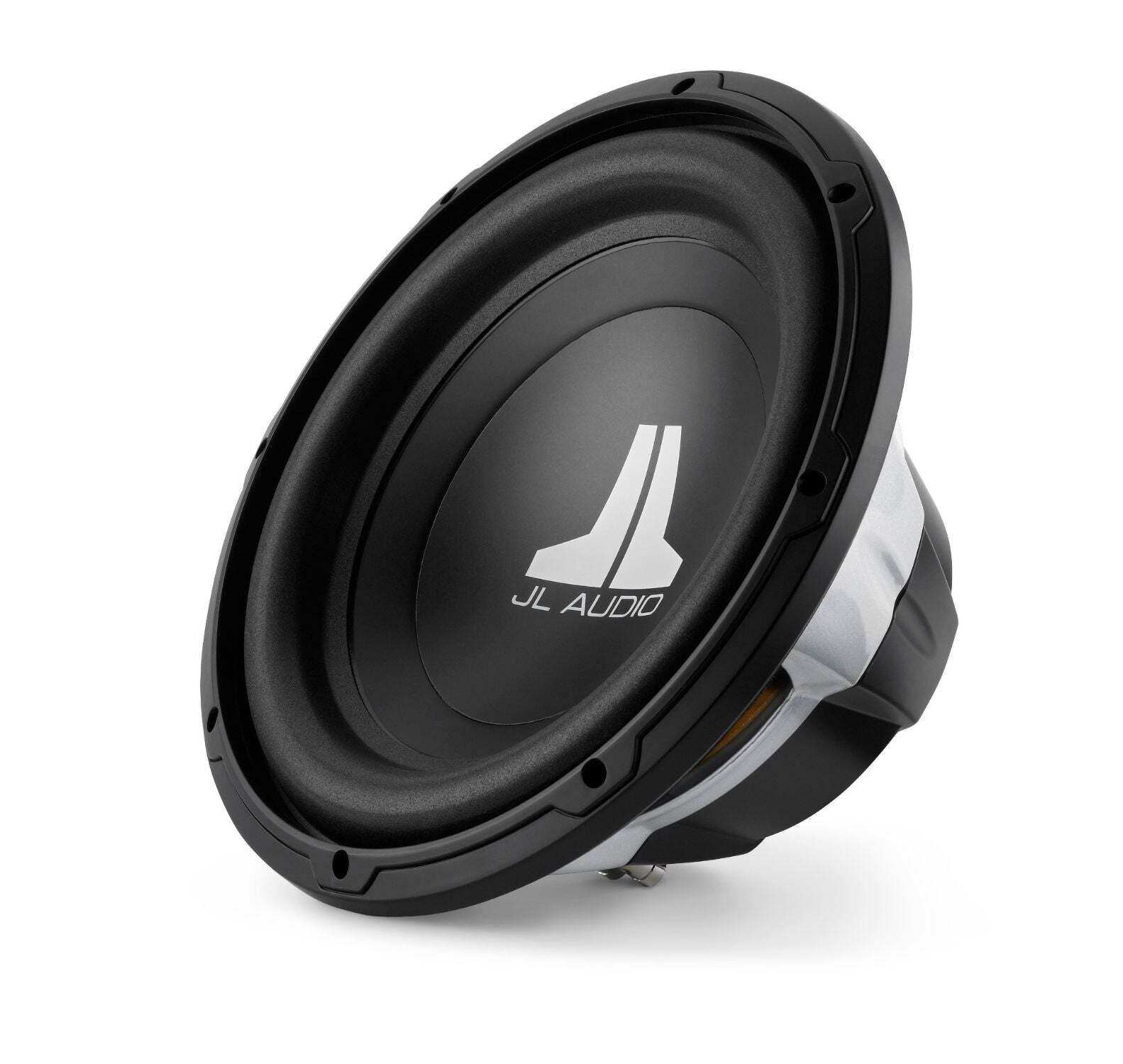

JL Audio 12 Inch Subwoofer W0v3 for Powerful Bass
JL Audio 12 Inch Subwoofer W0v3 for Powerful Bass
Pickup available at Garage audio morayfield
Usually ready in 5+ days
Description
Description
Experience unparalleled sound with the JL Audio 12 Inch subwoofer W0v3. This powerhouse from JL Audio delivers deep bass, elevating your car audio experience. Perfect for enthusiasts who crave high-quality sound.
The JL Audio 12 Inch subwoofer W0v3 features advanced engineering for clear and powerful bass. Built with precision, this subwoofer offers a robust design. It’s engineered to handle high power, making it suitable for any music genre.
Incorporate the JL Audio 12 Inch subwoofer W0v3 into your existing setup seamlessly. Its flexibility allows it to fit into various enclosures and systems, enhancing your audio experience with minimal hassle.
At Garage Audio, we offer top-tier car audio solutions. The JL Audio 12 Inch subwoofer W0v3 is among the best, ensuring superior performance and durability. Elevate your drive with this innovative subwoofer.
This subwoofer is crafted for those who demand quality and performance. The JL Audio 12 Inch subwoofer W0v3 not only provides excellent sound but also enhances your vehicle's audio system beyond expectations. Explore the full potential of your music with JL Audio’s cutting-edge technology.
Specifications
Specifications
Sizes 10"/12"
Weight 10": 7.50 lbs (3.40 kg)
12": 8.11 lbs (3.68 kg)
Continuous power handling (RMS) 300 W
Sensitivity (SPL @ 1 W/1 m) 10": 84.07 dB
12": 85.64 dB
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 75-300 W
Cone material Mineral-filled polypropylene
Warranty 1 year
Connections
Speaker connections Push-button terminal
Mounting Dimensions
Frame outer diameter 10.52" (267 mm)
Mounting depth clearance 10": 4.90" (124 mm)
12": 5.40" (137 mm)
Mounting hole 10": 9.0625" (230 mm)
12": 11.0625" (281 mm)
Bolt hole circle 10": 9.7" (246.5 mm)
12": 11.7" (297 mm)
Motor outer diameter 5.05" (128 mm)
Driver displacement 10": 0.034 cu ft (0.96 L)
12": 0.048 cu ft (1.36 L)
Parameters
Free Air Resonance (FS) 10": 32.09 Hz
12": 28.43 Hz
Electrical “Q” (Qes) 10": 0.64
12": 0.715
Mechanical “Q” (Qms) 10": 10.752
12": 10.709
Total “Q” (Qts) 10": 0.604
12": 0.67
Equivalent Compliance (Vas) 10": 1.095 cu ft (31.01 L)
12": 2.530 cu ft (71.64 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 0.45" (11.4 mm)
Reference Efficiency (NO) 10": 0.15%
12": 0.22%
Effective piston area (SD) 10": 48.909 in² (0.0316 m²)
12": 74.509 in² (0.0481 m²)
DC resistance (RE) 4.280 Ω
Sealed Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 10": 0.65 cu ft (18.41 L)
12": 1.375 cu ft (38.94 L)
External width (W) 10": 18" (457 mm)
12": 16" (406 mm)
External height (H) 10": 11" (279 mm)
12": 19" (483 mm)
External depth (D) 10": 9" (229 mm)
12": 11.75" (298 mm)
-3 dB cutoff frequency (F3) 10": 42.4 Hz
12": 36.0 Hz
System resonance (FC) 10": 53.23 Hz
12": 47.91 Hz
System Q at resonance (QTC) 10": 1.002
12": 1.179
Ported Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 10": 1.125 cu ft (31.86 L)
12": 1.75 cu ft (49.6 L)
External width (W) 10": 23" (584 mm)
12": 17.5" (445 mm)
External height (H) 10": 12" (305 mm)
12": 14.75" (375 mm)
External depth (D) 10": 13.625" (346 mm)
12": 16.25" (413 mm)
Internal slot port width 10": 1.25" (32 mm)
Internal slot port height 10": 10.5" (267 mm)
Internal slot port length 10": 32" (813 mm)
Port extension length 10": 18.25" (464 mm)
Tuning frequency (FB) 10": 30 Hz
12": 26 Hz
-3 dB cutoff frequency (F3) 10": 29.6 Hz
12": 30.8 Hz
Internal round port length 12": 14" (356 mm)
Internal round port diameter 12": 14" (356 mm)
