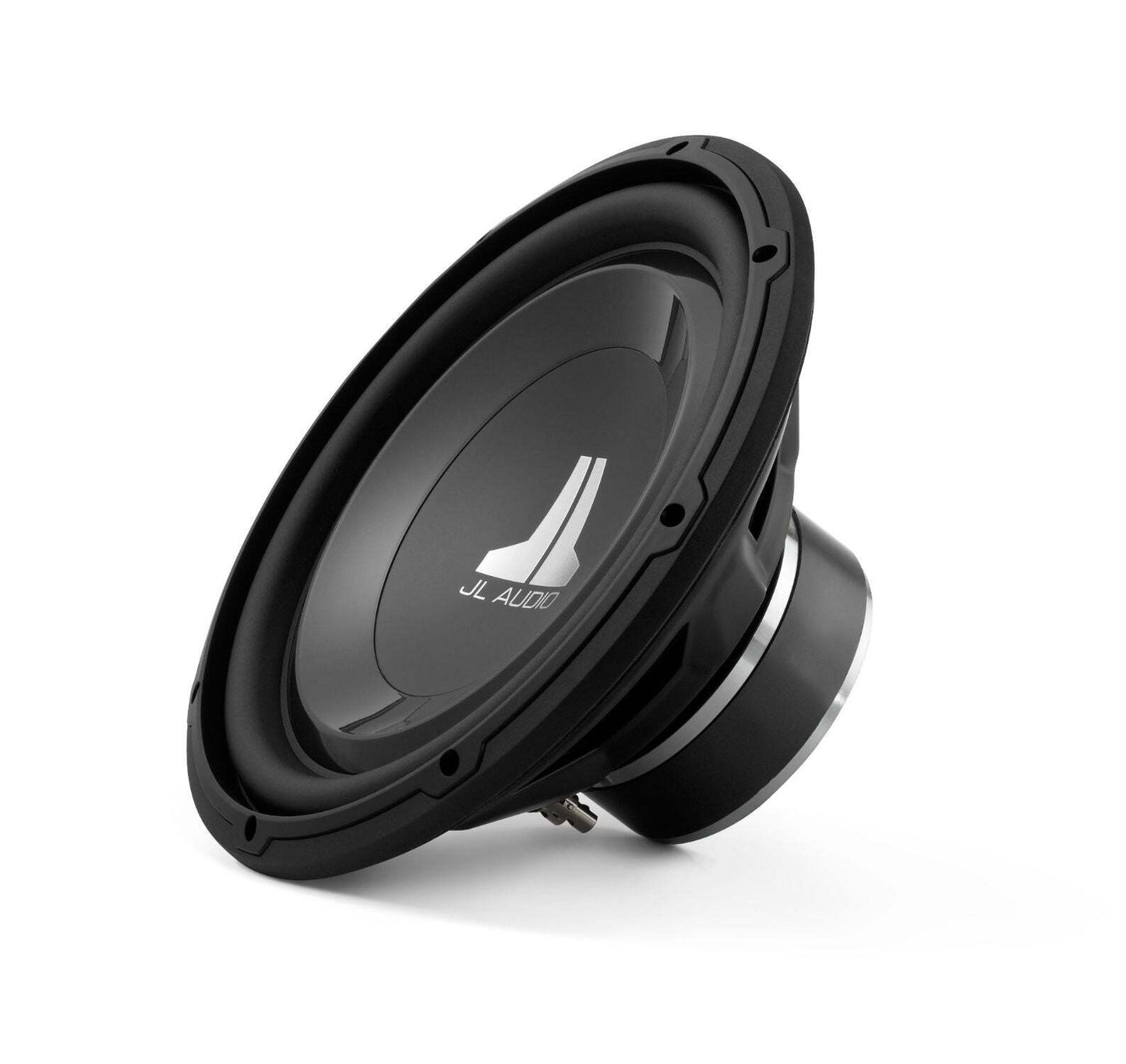

Enhance your car audio experience with the JL Audio 12 inch Subwoofer 12W1v3 from Garage Audio. Designed to deliver outstanding performance, this subwoofer is the perfect choice for car enthusiasts seeking deep, rich bass.

Its 12-inch size makes it ideal for providing powerful sound without compromising on clarity. This feature ensures that every drive is accompanied by quality audio, making it a standout in its category.

The JL Audio 12 inch Subwoofer 12W1v3 boasts a sleek design that seamlessly integrates into any vehicle. It combines innovation with functionality, ensuring you get the most out of your audio system.

Built with precision, this subwoofer delivers exceptional performance. It's crafted using high-quality materials for durability and long-lasting use. Whether you're a music lover or an audiophile, its sound quality will exceed your expectations.

At Garage Audio, we specialize in providing premium car audio components like the JL Audio 12 inch Subwoofer 12W1v3. Our products cater to those who demand superior sound and value the importance of a top-notch audio setup.

Easy to install, this subwoofer fits effortlessly into your vehicle. Its design allows for integration without hassle. Experience the difference in sound quality with this precision-engineered subwoofer.

If you're ready to elevate your car's audio system, the JL Audio 12 inch Subwoofer 12W1v3 is the ultimate choice. Capture every beat and enjoy unparalleled sound on every journey. Trust Garage Audio for your car audio needs and transform every drive into an auditory adventure.

Sizes 8"/10"/12"
Weight 8": 7.4 lbs (3.4 kg)
10": 9.9 lbs (4.5 kg)
12": 12.2 lbs (5.5 kg)
Continuous power handling (RMS) 8": 150 W
10"/12": 300 W
Sensitivity (SPL @ 1 W/1 m) 8": 84.8 dB
10" (2 Ω): 83.9 dB
10" (4 Ω): 84.2 dB
12" (2 Ω): 85.9 dB
12" (4 Ω): 86.1 dB
Nominal impedance 2 Ω or 4 Ω
Recommended amplifier power (RMS) 8": 50-150 W
10"/12": 75-300 W
Cone material Mineral-filled polypropylene
Warranty 1 year
Connections
Speaker connections Push-button terminal
Mounting Dimensions
Frame outer diameter 8": 8.5" (216 mm)
10": 10.5" (267 mm)
12": 12.5" (318 mm)
Mounting depth clearance 8": 3.86" (98 mm)
10": 4.6" (117 mm)
12": 5.41" (137 mm)
Mounting hole 8": 7.09" (180 mm)
10": 9.0625" (230 mm)
12": 11.0625" (281 mm)
Bolt hole circle 8": 7.85" (199 mm)
10": 9.7" (246 mm)
12": 11.7" (297 mm)
Motor outer diameter 8": 4.72" (120 mm)
10": 4.92" (125 mm)
12": 5.25" (133 mm)
Driver displacement 8": 0.018 cu ft (0.51 L)
10": 0.037 cu ft (1.05 L)
12": 0.052 cu ft (1.47 L)
Parameters
Free Air Resonance (FS) 8": 35.40 Hz
10" (2 Ω): 25.23 Hz
10" (4 Ω): 26.15 Hz
12" (2 Ω): 26.55 Hz
12" (4 Ω): 26.21 Hz
Electrical “Q” (Qes) 8": 0.451
10" (2 Ω): 0.463
10" (4 Ω): 0.475
12" (2 Ω): 0.554
12" (4 Ω): 0.535
Mechanical “Q” (Qms) 8": 5.791
10" (2 Ω): 7.246
10" (4 Ω): 7.243
12" (2 Ω): 8.731
12" (4 Ω): 8.2
Total “Q” (Qts) 8": 0.418
10" (2 Ω): 0.436
10" (4 Ω): 0.446
12" (2 Ω): 0.521
12" (4 Ω): 0.502
Equivalent Compliance (Vas) 8": 0.68 cu ft (19.26 L)
10" (2 Ω): 1.559 cu ft (44.15 L)
10" (4 Ω): 1.533 cu ft (43.41 L)
12" (2 Ω): 2.544 cu ft (72.04 L)
12" (4 Ω): 2.706 cu ft (76.63 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 8": 0.3" (8 mm)
10"/12": 0.45" (11 mm)
Reference Efficiency (NO) 8": 0.18%
10" (2 Ω): 0.15%
10" (4 Ω): 0.16%
12" (2 Ω): 0.23%
12" (4 Ω): 0.25%
Effective piston area (SD) 8": 32.67 in² (0.0211 m²)
10": 53.584 in² (0.0346 m²)
12": 81.426 in² (0.0525 m²)
DC resistance (RE) 8": 4.06 Ω
10" (2 Ω): 2.233 Ω
10" (4 Ω): 3.902 Ω
12" (2 Ω): 2.210 Ω
12" (4 Ω): 3.915 Ω
Sealed Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 8": 0.350 cu ft (9.90 L)
10": 0.55 cu ft (15.57 L)
12": 1.10 cu ft (31.5 L)
External width (W) 8": 12" (305 mm)
10": 16.5" (419 mm)
12": 16" (406 mm)
External height (H) 8": 12" (305 mm)
10": 16.5" (419 mm)
12": 16" (406 mm)
External depth (D) 8": 8.625" (219 mm)
10": 7" (178 mm)
12": 11" (279 mm)
-3 dB cutoff frequency (F3) 8": 59.9 Hz
10" (2 Ω): 42.3 Hz
10" (4 Ω): 43.1 Hz
12" (2 Ω): 38.99 Hz
12" (4 Ω): 39.63 Hz
System resonance (FC) 8": 60.7 Hz
10" (2 Ω): 49.4 Hz
10" (4 Ω): 50.9 Hz
12" (2 Ω): 48.39 Hz
12" (4 Ω): 48.75 Hz
System Q at resonance (QTC) 8": 0.717
10" (2 Ω): 0.853
10" (4 Ω): 0.868
12" (2 Ω): 0.9496
12" (4 Ω): 0.9338
Ported Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 8": 0.50 cu ft (14.2 L)
10": 0.9 cu ft (25.5 L)
12": 1.6 cu ft (45.3 L)
External width (W) 8": 13.0" (330 mm)
10": 17.0" (432 mm)
12": 25" (635 mm)
External height (H) 8": 10" (254 mm)
10": 11.5" (292 mm)
12": 15.5" (394 mm)
External depth (D) 8": 11.125" (283 mm)
10": 15.25" (387 mm)
12": 13" (330 mm)
Internal slot port width 10": 1.125" (28.6 mm)
12": 1.5" (38 mm)
Internal slot port height 10": 10.0" (254 mm)
12": 14" (356 mm)
Internal slot port length 10": 30.1875" (767 mm)
12": 30.75" (781 mm)
Port extension length 10": 12.50" (318 mm)
12": 17" (432 mm)
Tuning frequency (FB) 8": 38 Hz
10": 32.17 Hz
12": 31.79 Hz
-3 dB cutoff frequency (F3) 8": 39.10 Hz
10" (2 Ω): 31.36 Hz
10" (4 Ω): 31.92 Hz
12" (2 Ω): 31 Hz
12" (4 Ω): 31.41 Hz
Internal round port length 8": 10" (254 mm)
Internal round port diameter 8": 2" (51 mm)
