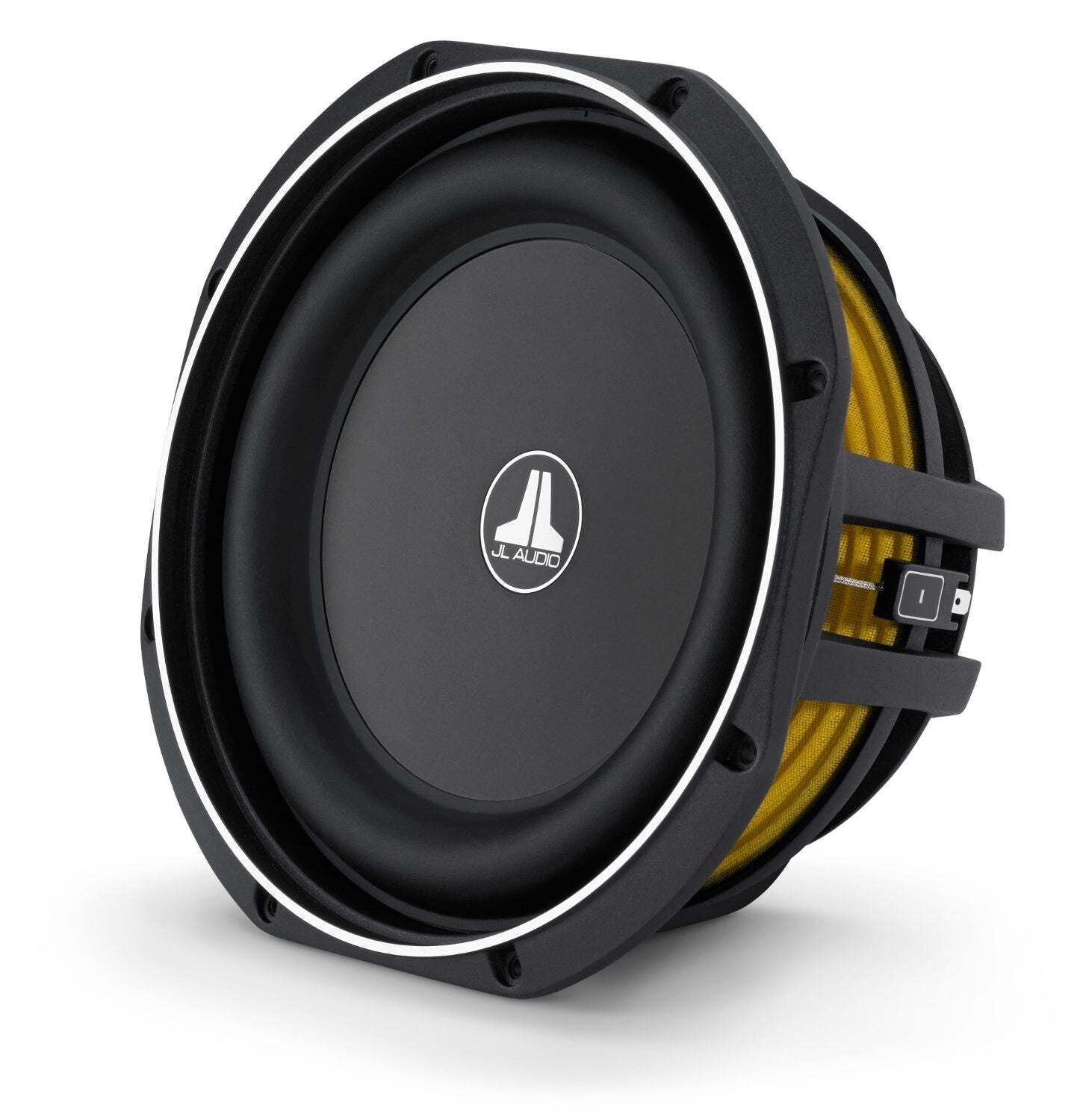

Introducing the JL Audio 10 inch Subwoofer 10TW1-2, a marvel of audio innovation available at Garage Audio. This subwoofer is designed for those who crave high-quality sound with robust bass in a compact form factor. With this subwoofer, you can transform your car's audio system into a powerhouse of sound.

The JL Audio 10 inch Subwoofer 10TW1-2 is crafted for audiophiles who don't want to compromise on sound quality. It features a shallow mount design, which allows for easy installation even in tight spaces. This makes it perfect for cars where space is a premium but powerful bass is desired.

One of the standout features of the JL Audio 10 inch Subwoofer 10TW1-2 is its efficiency. It uses advanced cooling and mounting technologies, ensuring longevity and consistent performance. When you install this subwoofer, you're opting for a product that delivers reliable bass every time you listen.

At Garage Audio, we pride ourselves on offering top-quality car audio products. The JL Audio 10 inch Subwoofer 10TW1-2 is a testament to this commitment. It integrates seamlessly with existing audio setups and enhances the overall listening experience, taking your car's sound system to new heights.

Imagine driving down the road with deep and resonant bass accompanying your favorite tunes. This is what the JL Audio 10 inch Subwoofer 10TW1-2 offers. It's more than just a purchase; it's an upgrade to the way you experience music while driving. Visit Garage Audio to see the impact this subwoofer can have on your car audio system.

Sizes 10"/12"
Weight 10": 10.5 lbs (4.8 kg)
12": 16.5 lbs (7.5 kg)
Continuous power handling (RMS) 300 W
Sensitivity (SPL @ 1 W/1 m) 10" (2 Ω): 82.5 dB
10" (4 Ω): 82.2 dB
12" (2 Ω): 85.07 dB
12" (4 Ω): 85.15 dB
Nominal impedance 2 Ω or 4 Ω
Recommended amplifier power (RMS) 75-300 W
Cone material Mineral-filled polypropylene
Grille(s) included
Warranty 1 year
Connections
Speaker connections Spade connectors
Mounting Dimensions
Frame outer diameter 10": 10.375" (264 mm)
12": 12.375" (314 mm)
Mounting depth clearance 10": 4.36" (111 mm)
12": 4.62" (117 mm)
Frontal grille protrusion 0.87" (22 mm)
Mounting hole 10": 9.0625" (230 mm)
12": 11.0625" (281 mm)
Bolt hole circle 10": 9.7" (246 mm)
12": 11.7" (297 mm)
Motor outer diameter 10": 4.54" (115 mm)
12": 5.71" (145 mm)
Driver displacement 10": 0.047 cu ft (1.33 L)
12": 0.072 cu ft (2.04 L)
Parameters
Free Air Resonance (FS) 10" (2 Ω): 41.45 Hz
10" (4 Ω): 38.09 Hz
12" (2 Ω): 35.06 Hz
12" (4 Ω): 32.35 Hz
Electrical “Q” (Qes) 10" (2 Ω): 0.696
10" (4 Ω): 0.639
12" (2 Ω): 0.61
12" (4 Ω): 0.555
Mechanical “Q” (Qms) 10" (2 Ω): 9.7
10" (4 Ω): 10.07
12" (2 Ω): 10.662
12" (4 Ω): 11.066
Total “Q” (Qts) 10" (2 Ω): 0.649
10" (4 Ω): 0.601
12" (2 Ω): 0.577
12" (4 Ω): 0.529
Equivalent Compliance (Vas) 10" (2 Ω): 0.364 cu ft (10.31 L)
10" (4 Ω): 0.429 cu ft (12.15 L)
12" (2 Ω): 1.008 cu ft (28.54 L)
12" (4 Ω): 1.189 cu ft (33.67 L)
One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) 0.40" (10 mm)
Effective piston area (SD) 10": 41.602 in² (0.0268 m²)
12": 67.608 in² (0.0436 m²)
DC resistance (RE) 10" (2 Ω): 2.428 Ω
10" (4 Ω): 3.516 Ω
12" (2 Ω): 2.430 Ω
12" (4 Ω): 3.514 Ω
Sealed Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 10": 0.35 cu ft (9.91 L)
12": 0.65 cu ft (18.41 L)
External width (W) 10": 16.125" (410 mm)
12": 26.50" (673 mm)
External height (H) 14" (356 mm)
External depth (D) 10": 5.25" (133 mm)
12": 5.50" (140 mm)
-3 dB cutoff frequency (F3) 10" (2 Ω): 48.31 Hz
10" (4 Ω): 47.24 Hz
12" (2 Ω): 45.83 Hz
12" (4 Ω): 45.44 Hz
System resonance (FC) 10" (2 Ω): 59.21 Hz
10" (4 Ω): 56.83 Hz
12" (2 Ω): 55.99 Hz
12" (4 Ω): 54.41 Hz
System Q at resonance (QTC) 10" (2 Ω): 0.927
10" (4 Ω): 0.897
12" (2 Ω): 0.92
12" (4 Ω): 0.89
Ported Enclosure Specifications
Wall thickness 0.75" (19 mm)
Front baffle thickness 0.75" (19 mm)
Volume (net int.) 10": 0.625 cu ft (17.7 L)
12": 1.125 cu ft (31.86 L)
External width (W) 10": 26.625" (676 mm)
12": 31.75" (806 mm)
External height (H) 16" (406 mm)
External depth (D) 10": 5.25" (133 mm)
12": 7" (178 mm)
Internal slot port width 10": 3.75" (95 mm)
12": 5.50" (140 mm)
Internal slot port height 10": 1.875" (48 mm)
12": 2.25" (57 mm)
Internal slot port length 10": 22.50" (572 mm)
12": 22.625" (575 mm)
Port extension length 10": 20.8125" (529 mm)
12": 20.75" (527 mm)
Tuning frequency (FB) 10": 35.0 Hz
12": 34.0 Hz
-3 dB cutoff frequency (F3) 10" (2 Ω): 0.927
10" (4 Ω): 0.897
12" (2 Ω): 0.92
12" (4 Ω): 0.89
