Zapco HB 410 ADSP 10-Channel DSP with Integrated 8-Channel Class AB Amplifier

The Zapco HB 410 ADSP is an advanced all-in-one signal processing and amplification solution designed to bring premium sound quality, system flexibility, and simplified installation to modern vehicle audio systems. Combining a powerful 10-channel DSP with an integrated 8-channel Class AB amplifier, the HB 410 ADSP delivers exceptional audio control and performance from a compact package.

Featuring 10 channels of digital signal processing and a comprehensive 31-band equaliser on every channel, the HB 410 ADSP allows precise tuning for speakers, amplifiers, and vehicle acoustics. Whether upgrading a factory audio system or building a fully customised sound quality setup, this processor provides the flexibility needed to achieve outstanding results.

The integrated 8-channel Class AB amplifier delivers clean, dynamic power while maintaining the smooth and natural sound characteristics that audiophiles appreciate. With 8 x 70 watts maximum output, the HB 410 ADSP is capable of powering a complete active speaker system while still providing 10 RCA outputs for additional amplifier expansion.

Bluetooth 5.1 audio streaming is built in, allowing high-quality wireless music playback directly from compatible devices. The integrated USB music player supports a wide range of audio formats including FLAC, WAV, AAC, APE, WMA, and MP3, providing excellent playback flexibility for high-resolution audio enthusiasts.

The system can be configured and controlled using both PC and mobile applications, making tuning simple and convenient. When paired with the optional remote controller, users can adjust master volume, subwoofer level, source selection, preset selection, and music playback functions directly from the dashboard.

Features

• Integrated 10-channel DSP and 8-channel amplifier

• High-quality Class AB amplifier design

• 31-band equaliser on all DSP channels

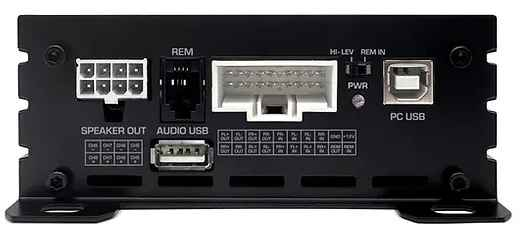

• 4-channel high-level speaker inputs

• 2-channel RCA inputs

• 10-channel RCA outputs

• Bluetooth 5.1 audio streaming

• USB music player functionality

• Supports FLAC, WAV, AAC, APE, WMA, MP3 and additional formats

• PC DSP tuning software

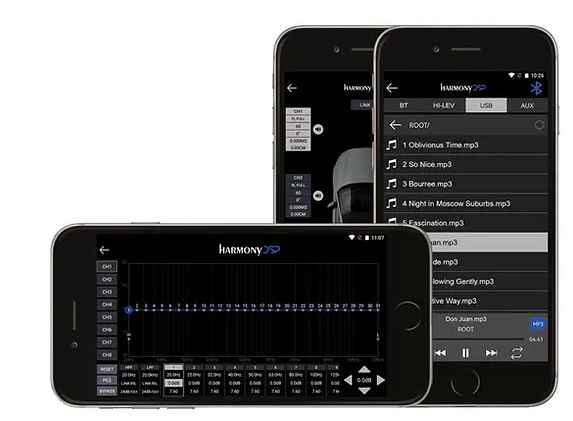

• Android and iOS mobile control applications

• Plug-and-play installation capability

• Optional remote control compatibility

• Source selection and preset switching functions

Specifications

DSP Section

• DSP Channels: 10

• Equaliser: 31 Bands Per Channel

• High-Level Inputs: 4 Channels

• RCA Inputs: 2 Channels

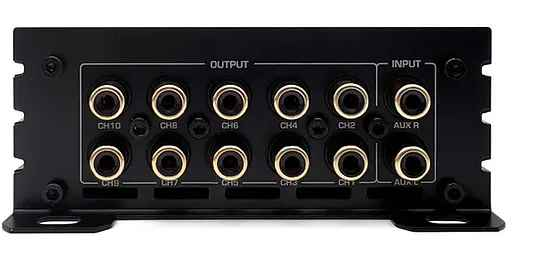

• RCA Outputs: 10 Channels

Amplifier Section

• Amplifier Type: Class AB

• Channels: 8

• Maximum Power Output: 8 x 70 Watts

Connectivity

• Bluetooth Version: 5.1

• USB Music Playback: Yes

• PC Tuning Software: Windows Compatible

• Mobile DSP Control: Android & iOS Compatible

Supported Audio Formats

• MP3

• MP2

• MP4

• WMA

• APE

• FLAC

• AAC

• M4A

• WAV

• AIF

• AIFC

Ideal For

• Factory audio upgrades

• Active speaker systems

• DSP-controlled sound quality builds

• Multi-channel amplification systems

• OEM integration projects

• Enthusiasts seeking a compact all-in-one solution

The Zapco HB 410 ADSP combines powerful DSP processing, premium Class AB amplification, Bluetooth streaming, and advanced tuning capability into a single compact unit, making it an outstanding solution for modern sound quality-focused car audio systems.
