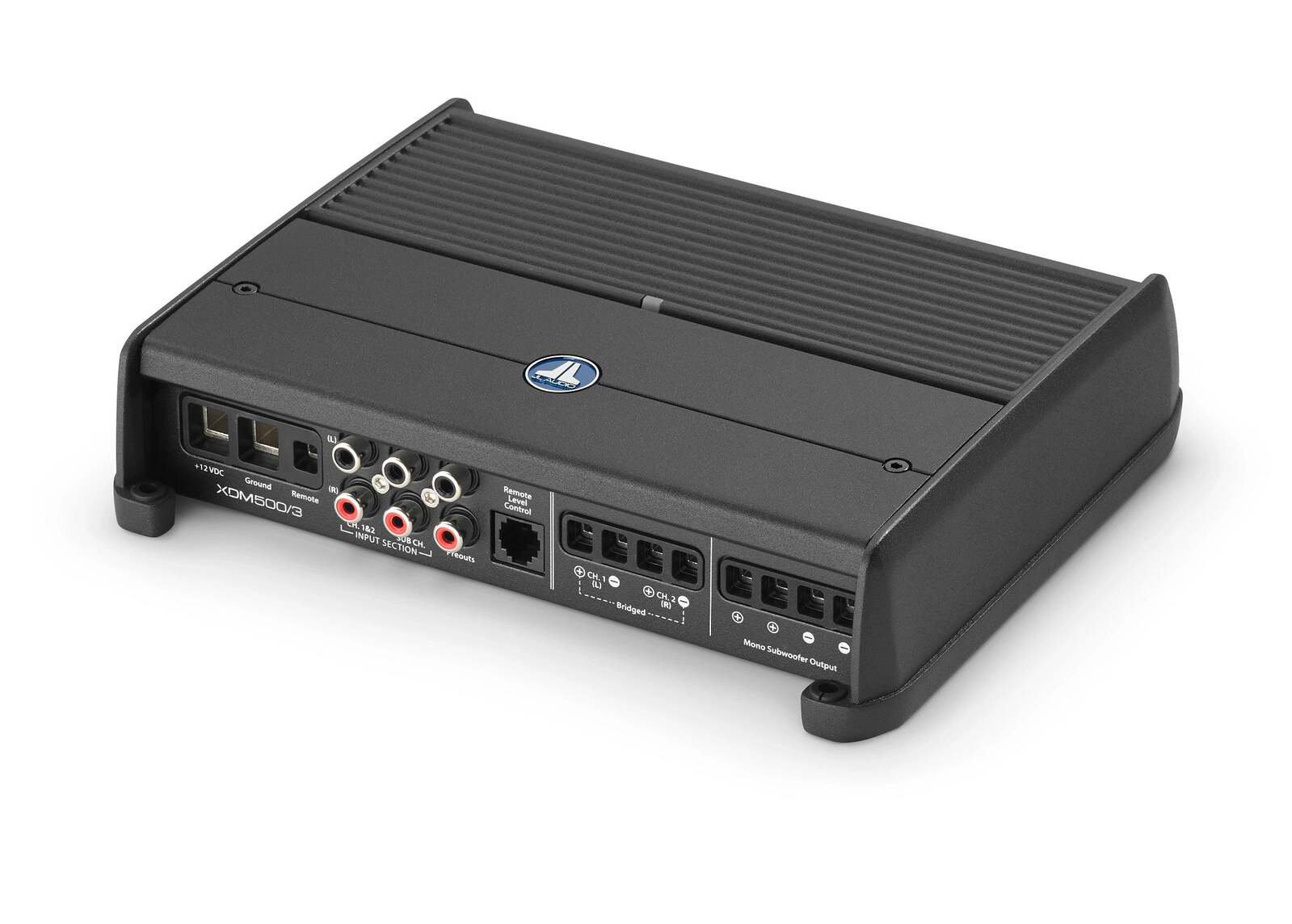

Discover the unparalleled performance of the JL audio XDM5003 3 channel Marine amplifier, a must-have for marine audio enthusiasts. This amplifier is expertly crafted by JL Audio, known for superior sound quality and durability. Add this powerhouse to your boat and experience clarity in every wave.

The JL audio XDM5003 3 channel Marine amplifier features three channels. This allows you to amplify multiple audio sources. Perfect for powering your speakers and subwoofers simultaneously. With robust construction and marine-grade protection, it withstands the harshest marine environments.

At Garage Audio, we understand the need for reliable marine amplifiers. The JL audio XDM5003 3 channel Marine amplifier offers high output power. You'll enjoy clean, distortion-free sound, ideal for open water cruising or relaxing at anchor. Installation is simple, and its compact design saves space.

This amplifier ensures reliability and longevity. Made with premium materials, it resists corrosion and water damage. You can count on the JL audio XDM5003 3 channel Marine amplifier to deliver top performance, whether you're on calm seas or exploring adventurous waters.

Visit Garage Audio for your audio needs. We provide a range of car and marine audio solutions. Our selection includes stereos, speakers, and more. Enhance your marine adventures with the JL audio XDM5003 3 channel Marine amplifier. Experience your favorite tunes like never before.

Channels Monoblock/2/3/4/5/6/8
Physical dimensions (Height) 2.05" (52 mm)
Physical dimensions (Width) Monoblock (300 W)/2-Channel: 6.85" (174 mm)
Monoblock (600 W)/3/4-Channel: 8.52" (216 mm)
5 (700 W)/ 6-Channel: 10.23" (260 mm)
Monoblock (1000 W)/5 (1000 W)/8-Channel: 14.73" (374 mm)
Physical dimensions (Depth) 7.09" (180 mm)
Weight
Monoblock (300 W): 3.8 lbs (1.72 kg)
Monoblock (600 W): 6.3 lbs (2.86 kg)
2-Channel: 3.75 lbs (1.7 kg)
3/4-Channel: 4.8 lbs (2.18 kg)
5-Channel (700 W): 6.15 lbs (2.79 kg)
6-Channel: 5.8 lbs (2.63 kg)

Warranty 3 years
Operating voltage 11-14.5 VDC (12 V Models)
Audio
Amplifier class Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)
Monoblock (300 W): 200 W x 1
Monoblock (600 W): 400 W x 1
Monoblock (1000 W): 600 W x 1
2-Channel: 75 W RMS x 2/200 W x 1 (Bridged)
3-Channel: Main: 75 W x 2/Sub: 180 W x 1
4-Channel: 75 W RMS x 4/200 W x 2 (Bridged)
5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1
6-Channel: 75 W x 6/200 W x 3 (Bridged)
8-Channel: 75 W x 8/200 W x 4 (Bridged)

Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)
Monoblock (300 W): 300 W x 1
Monoblock (600 W): 600 W x 1
Monoblock (1000 W): 1000 W x 1
2-Channel: 100 W RMS x 2
3-Channel: Main: 100 W x 2/Sub: 300 W x 1
4-Channel: 100 W RMS x 4
5-Channel (700 W): Main: 100 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1
6-Channel: 100 W x 6
8-Channel: 100 W x 8

Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)
Monoblock (300 W): 160 W x 1
Monoblock (600 W): 300 W x 1
Monoblock (1000 W): 500 W x 1
2-Channel: 60 W x 2/180 W x 1 (Bridged)
3-Channel: Main: 60 W x 2/Sub: 180 W x 1
4-Channel: 60 W x 4/180 W x 2 (Bridged)
5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1
5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1
6-Channel: 60 W x 6/180 W x 3 (Bridged)
8-Channel: 60 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)
Monoblock (300 W): 270 W x 1
Monoblock (600 W): 500 W x 1
Monoblock (1000 W): 800 W x 1
2-Channel: 90 W x 2
3-Channel: Main: 90 W x 2/Sub: 300 W x 1
4-Channel: 90 W x 4
5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1
5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1
6-Channel: 90 W x 6
8-Channel: 90 W x 8

Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD)
6-Channel (24 V): 75 W x 6/200 W x 3 (Bridged)
8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD)
6-Channel (24 V): 100 W x 6
8-Channel (24 V): 100 W x 8

Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD)
6-Channel (24 V): 60 W x 6/180 W x 3 (Bridged)
8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)

Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD)
6-Channel (24 V): 90 W x 6
8-Channel (24 V): 100 W x 8

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 100 dB
Monoblock (600 W): > 87 dB
Monoblock (1000 W): > 83 dB
2/4/6-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3/5-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3/5-Channel: > 103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs Monoblock (300 W): > 80 dB
Monoblock (600 W): > 67 dB
Monoblock (1000 W): > 53 dB
2/4/6-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels 3/5-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel 3/5-Channel: > 83 dB
Damping factor @ 4 Ω Monoblock (300 W): > 120/50 Hz
Monoblock (600 W): > 1000/50 Hz
Monoblock (1000 W): > 1000/50 Hz
2/4/5/6-Channel: > 150/50 Hz
3-Channel: > 120/50 Hz
Damping factor @ 2 Ω Monoblock (300 W): > 60/50 Hz
Monoblock (600 W): > 500/50 Hz
Monoblock (1000 W): > 500/50 Hz
2/4/5/6-Channel: > 75/50 Hz
3-Channel: > 60/50 Hz
THD+N @ Rated Power Monoblock (300 W/600 W)/2/4/6-Channel: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Main Channels 3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel 3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
Frequency response (+0, -1dB) Monoblock (300 W): 10 Hz-1 kHz
Monoblock (600 W/1000 W): 7 Hz-500 Hz
2/4/6-Channel: 12 Hz-22 kHz
Frequency response (+0, -1dB): Main Channels 3/5-Channel (700 W/1000 W): 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel 3/5-Channel (700 W/1000 W): 10 Hz-1 kHz
Input voltage range @ RCA inputs Monoblock (300 W/600 W/1000 W)/2/3/4-Channel: 200 mV - 4 V RMS
Fuse rating Monoblock (300 W): 30 A
Monoblock (600 W): 50 A
2-Channel: 20 A
3-Channel: 50 A
4-Channel: 40 A
5-Channel (700 W): 60 A
6-Channel: 50 A
6-Channel (24 V): 30 A
8-Channel (24 V): 40 A
Monoblock (1000 W)/5 (1000 W)/8-Channel: 80 A
Recommended fuse type(s) AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge 2/6 -Channel (24 V): 8 AWG wire
Monoblock (300 W/600 W/1000 W)/3/4/5/6/8-Channel (24V): 4 AWG wire
Signal Processing
Filter mode(s): Channels 1 & 2 Monoblock (300 W/600 W/1000 W): Off or Low-Pass only
2/4/6-Channel: Off, Low-Pass or High-Pass
3/5-Channel (700 W/1000 W): Off or High-Pass only
Filter Slope(s): Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 12/24 dB/octave
2/3/4/5 (700 W/1000 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 50 Hz-500 Hz
2/3/4/6-Channel: 50 Hz-500 Hz
5-Channel (700 W/1000W): 50 Hz-5 kHz
Filter mode(s): Channels 3 & 4 4/6-Channel: Off, Low-Pass or High-Pass
5-Channel (700 W/1000 W): Off, High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 4/5 (700 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 3 & 4 4/5 (700 W)/6-Channel: 50 Hz-500 Hz
Filter mode(s): Channels 5 & 6 6-Channel: Off, Low-Pass or High-Pass
Filter Slope(s): Channels 5 & 6 6-Channel: 12 dB/octave
Filter frequency range: Channels 5 & 6 6-Channel: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel 3/5-Channel (700 W/1000 W): Off or Low-Pass only
Filter slope(s): Subwoofer Channel 3/5-Channel (700 W/1000 W): 12/24 dB/octave
Filter frequency range: Subwoofer Channel 3/5-Channel (700 W/1000 W): 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Infrasonic filter: Subwoofer Channel Monoblock (600 W): 30 Hz, defeatable
Remote level control Optional HD-RLC or MHD-RLC (water-resistant)
Remote level modes 3/5-Channel (700 W/1000 W): All Channels or Sub Channels
Channel input mode switch 3/4-Channel: yes (2/4 Channels)
5-Channel (700 W/1000 W): yes (2/4/6 Channels)
Pass-through preamp output Monoblock (300 W/600 W)/2/3/4-Channel: Buffered
Source channel selection for PreOuts 3/5-Channel (700 W/1000 W): yes (1&2/Sum/Sub)
4-Channel: yes (1&2/Sum)
